Original price was: ₹6,999.00.
Mega Offer: ₹4,999.00Current price is: ₹4,999.00.
(Inclusive of Lithium-Ion battery, Legal metrology stamping fees, Ready for commercial use and GST@18%)

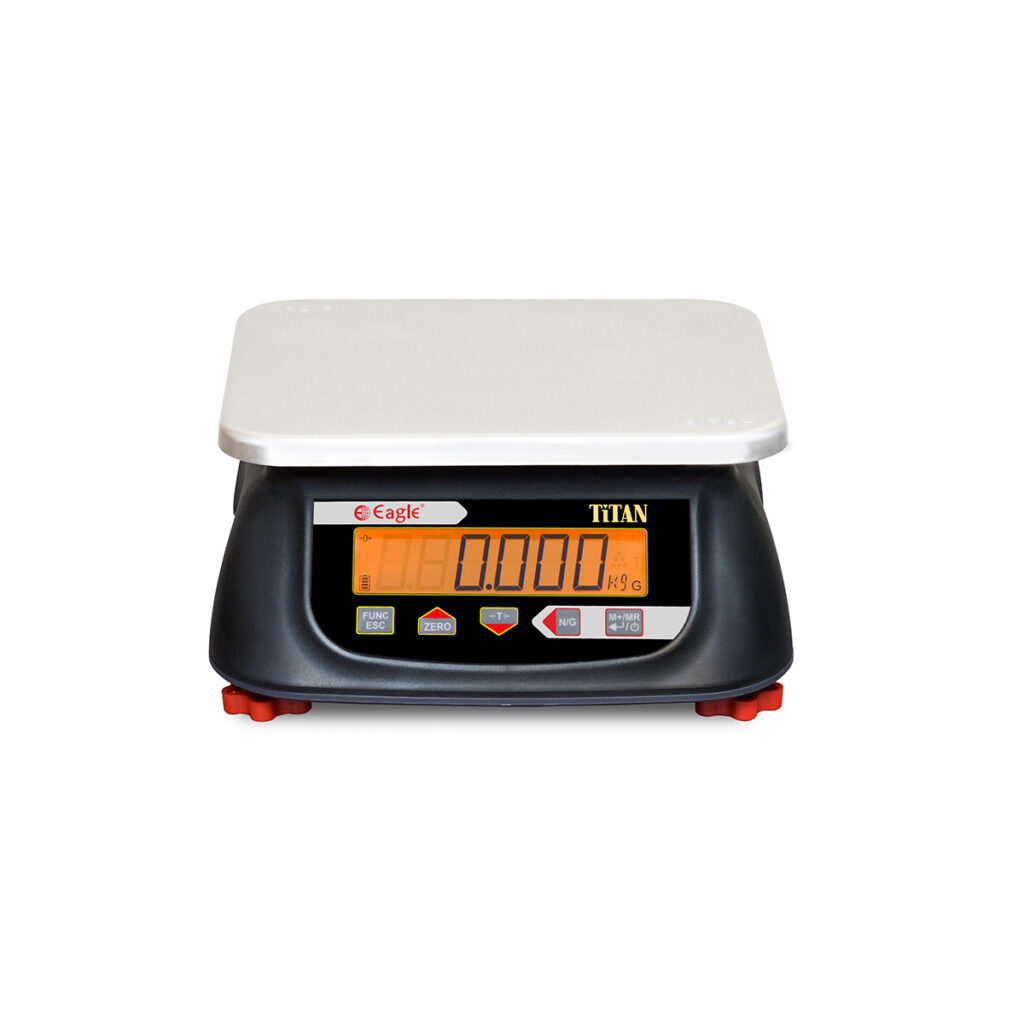

A Table Top Scale, – is a small scale that can fit on top of a work station or ‘work bench’. Electronic table top scales are used for smaller weighing needs and more intricate processes, where the operator needs to be closer to the scale itself. Table top scale applications range from simple weighing, mixing, counting and weight accumulation.The TITAN – C compact scales range offers a wide choice to meet almost every requirement. Large, bright displays and a large SS304 weighing pan ensure comfortable user operation.
1. Rugged And Easy To Use Design
The body which is made entirely of Industrial Grade ABS – is rugged and easy to maintain. It can be easily cleaned with damp clothes. Soft Touch key operation with SS304 Stainless Steel Pan.
2. Bright Display with Symbols
TITAN – C has a wide-angle LCD Display with a backlight of size 25 mm in the front and 25 mm in the rear. The battery and other symbols enable the user to easily identify the modes the scale is operation in. Even when the instrument is placed in a dark or low-light environment, the bright LED displays the clear and exact weight.
3. Compact Design
The lowered overall height (130 mm) improves the work efficiency by facilitating the loading/unloading of objects to and from the weighing tray.
4. Dual Power Sources

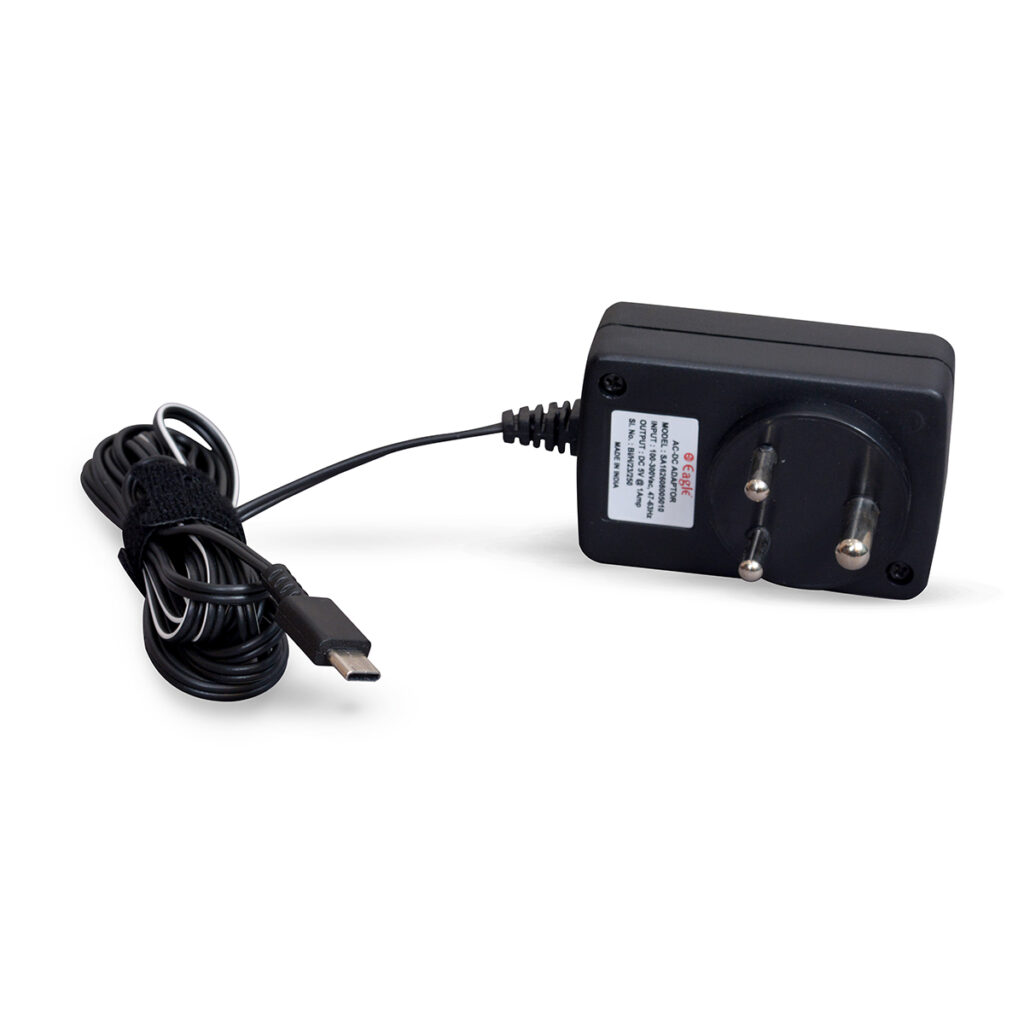

Operates on a rechargeable battery that allows it to be operated anywhere. The USB-C adaptor also enables it to be connected to a wall socket.
* Lithium-ion Rechargeable Battery (DC7.4 V, 1200 mAH) for estimated backup for 10 to 12 hours of continuous usage (if the battery is fully charged)
* Power saving function is there in the scale, which reduces the brightness of the LCD when the scale is not used for a certain time (user settable)
5. High Mobility
Thanks to rechargeable battery operation, compact, lightweight construction, it is suitable for use in several locations (production, warehouse, dispatch department, etc.)
6. Spirit Level Indicator
The spirit level indicator in the TITAN – C is placed under the weighing pan and this helps the user to ensure the weighing scale is in the perfect level. Maintaining level is important because the accuracy of the scale depends on the object being placed on a level surface.
7. Different Operation Modes
This TITAN-C – C weighing scale is powered not just for your weighing but also for Piece Counting, Weight Accumulation, and Simple Print Functions.
| Model | Capacity | Readability |
|---|---|---|
| Titan | 5/7.5 kg | 0.5/1 g |
| Titan | 10 kg | 1 g |
| Titan | 10/20 kg | 1/2 g |
| Titan | 20/30 kg | 2/5 g |
The Pan MOC is of SS 304 & Pan size is 250 x 195 mm.
of LED?
10 kg x 1 g and 20/30 kg x 2/5 g
RS232 port.
through RS232?
Below are the devices can be connected to Titan:
(At a time any one can be connected)
through RS232 to the computer?
+001.000 kg (For example, if 1 kg is kept in the weighing scale)
to PC?
Yes we can transmit 001.000 only (For example, if 1 kg is kept in the
weighing scale)
*Leading zero before 1.000 can also be disabled in the settings is required.
Front & Rear Display size : 128 x 32 mm
Digit Size : 25 mm
Digit Size : 25 mm
*This display size and digit height are common for Front & Rear display.
Charging time for both Titan Table Top models : 3 hrs approx.
Discharging time for Titan Table Top – LCD model is 11 hrs approx.
Discharging time for Titan Table Top – LED model is 12 hrs approx.
*These are tentative time duration based on testings.
Yes, this scale can be operated using lithium ion battery
(7.4V, 1200 mAH)
Yes, we can provide IQ, OQ, PQ, DQ documents on demand, if the
customer is in need of these documents than please mention it in the
sales order.
Retail shops, Industries etc.
Industrial ABS Plastic.
No.
g, kg, L.

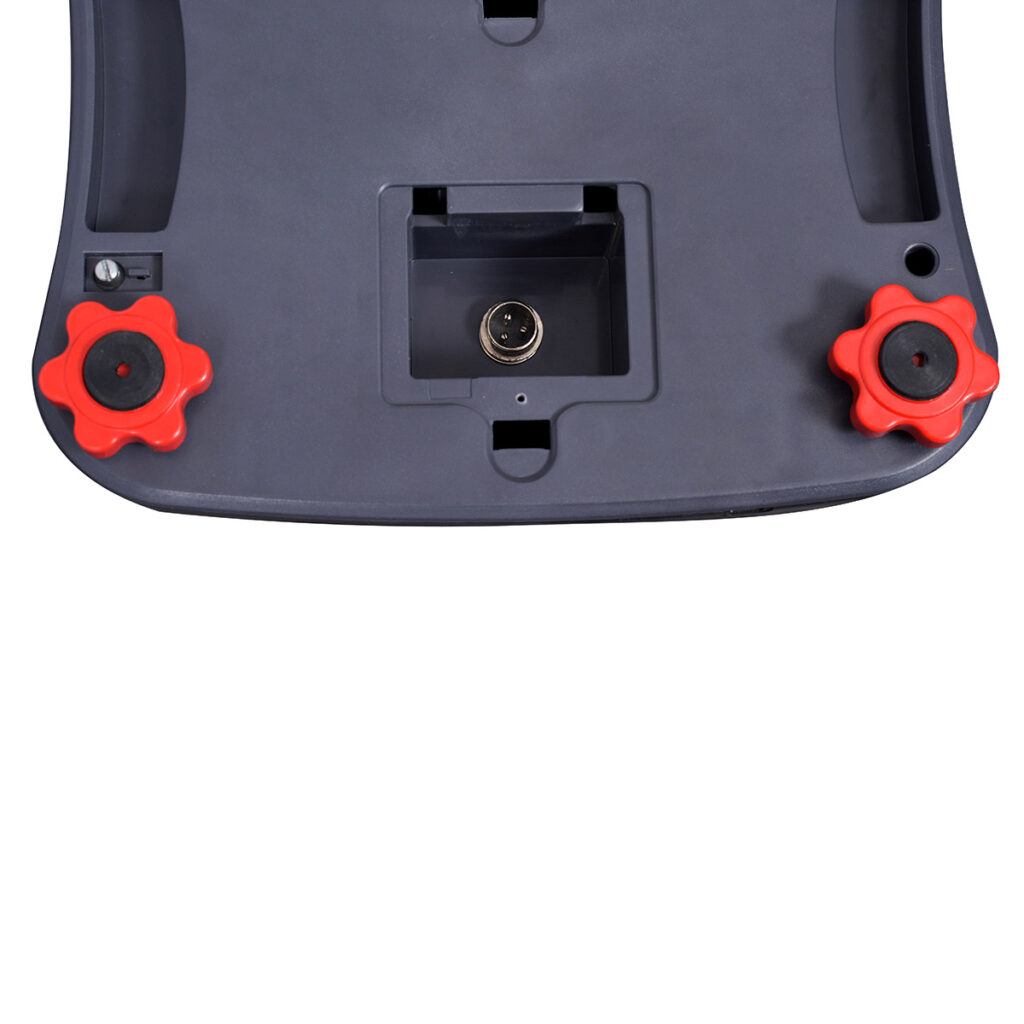

Pin 1 : Ground
Pin 2 : RX
Pin 3 : TX
* We use 3 pin round connector.
Titan Table Top scale can print 3 print formats.
Print Format 1 (FOR1) : Common for receipt paper and label paper
Print Format 2 (FOR2) : Common for receipt paper and label paper
Print Format 3 (FOR3) : Only for receipt paper (Accumulation mode)
*Accumulation can be done till display reaches 999999 and 999 times
we can accumulate. After that accumulation memory has to be cleared.
No. The font size, font type, alignment are fixed and factory set.
This is because Titan Table Top don’t have the RTC.
Accumulation is possible only in simple weighing mode.
Yes unit conversion is available for kg-g/g-kg/kg-L/L-kg/g-L/L-g
Tare + N/G key has to be pressed simultaneously for unit conversion and unit
conversion is only to view the converted values and functions like zero, tare,
print etc will not work when the unit is converted. After few seconds, the
display will return to the default scale unit.
No.
Up to 9 copies. But we have to enter the no. of copies to be printed in the
settings. This is applicable for print format 1 and 2.
We can use RD-DN-40 S and TVS RP45 dot matrix printers for the receipt print.
But for label only RD-EK32 S has to be used.
(These printers are external table mount printers)
