Description

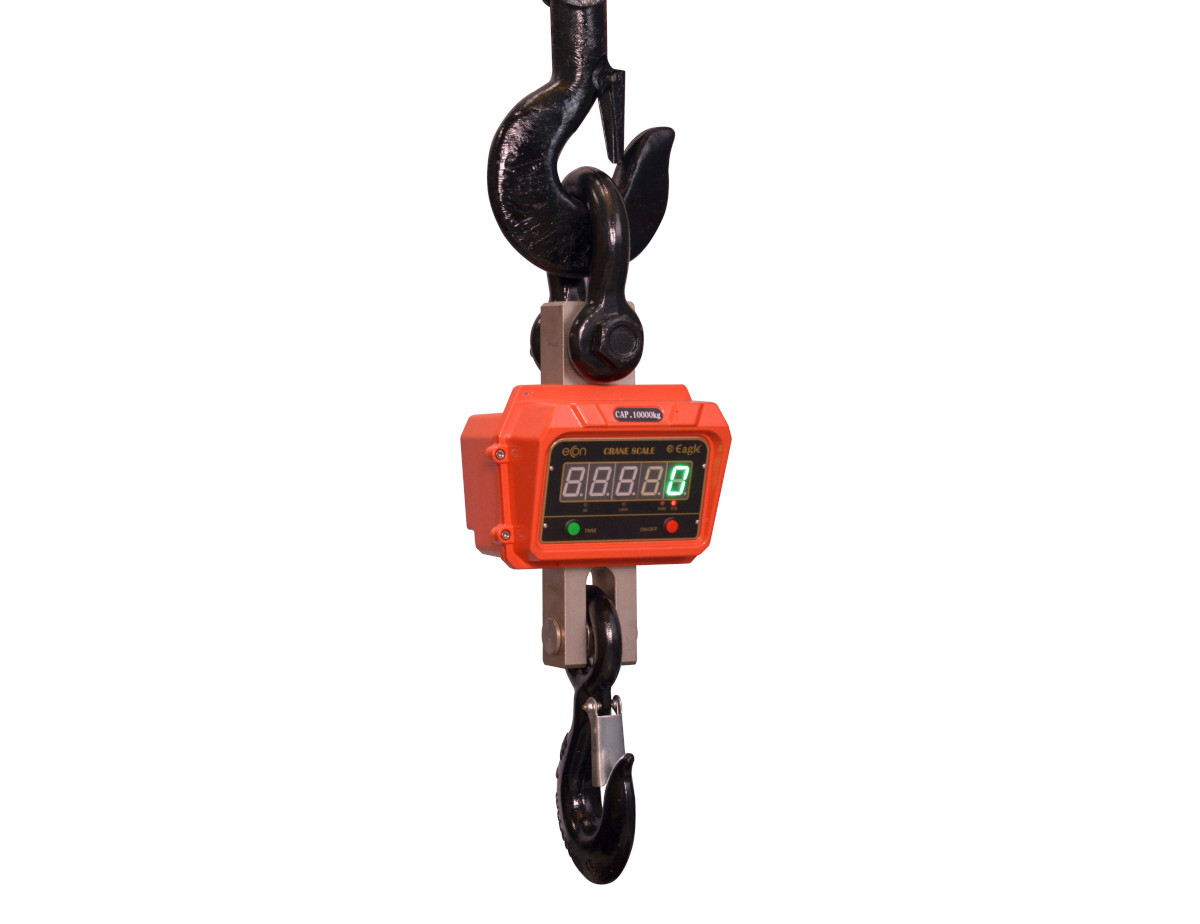

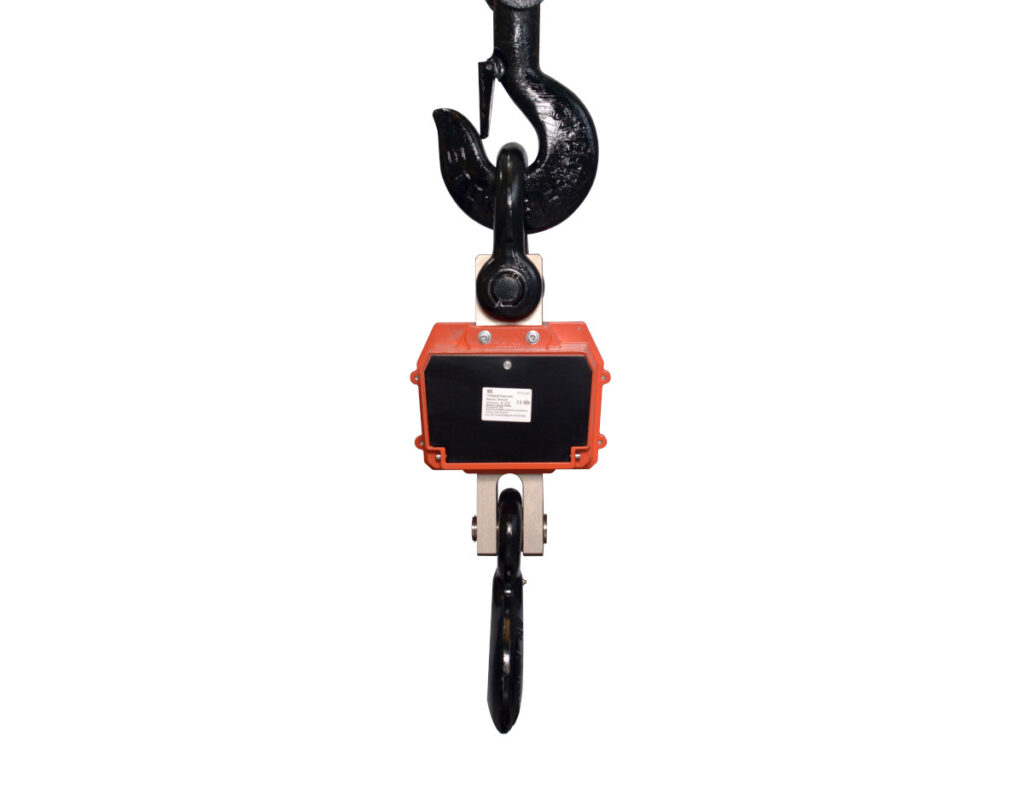

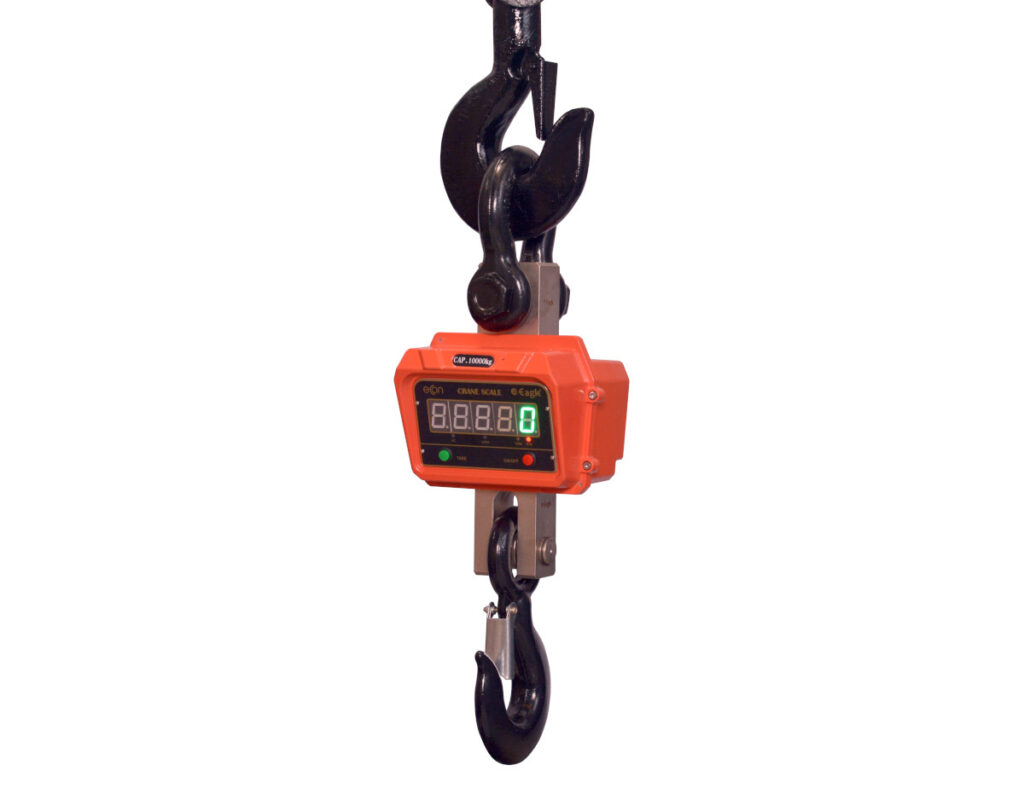

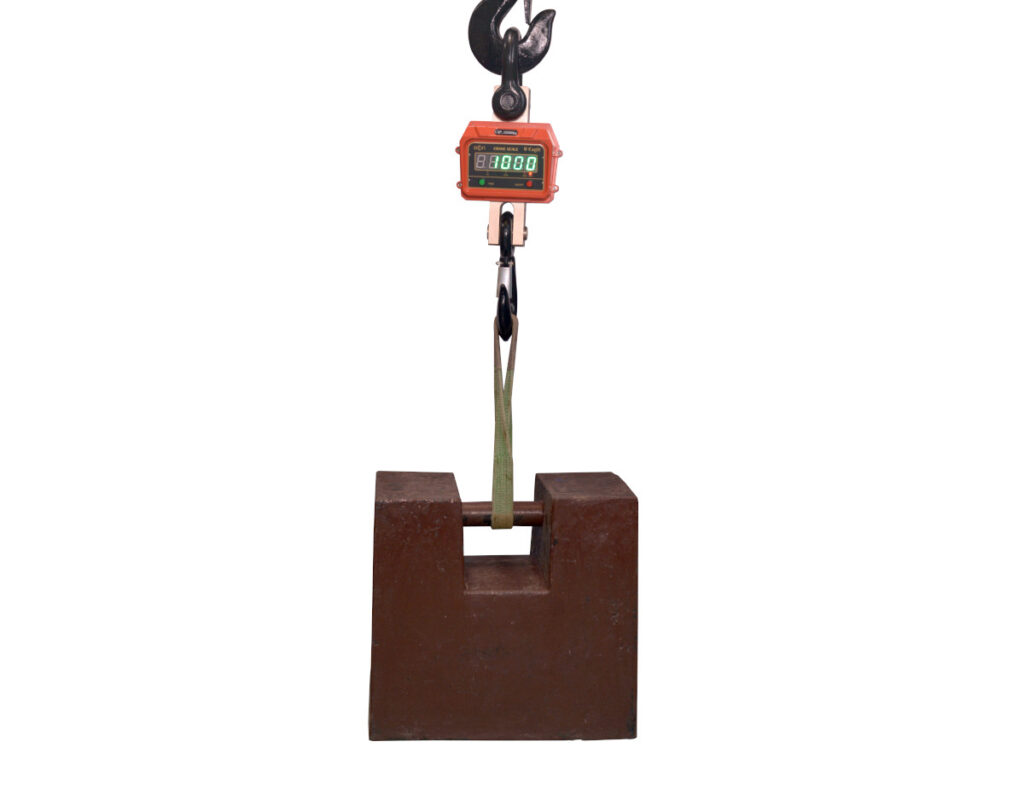

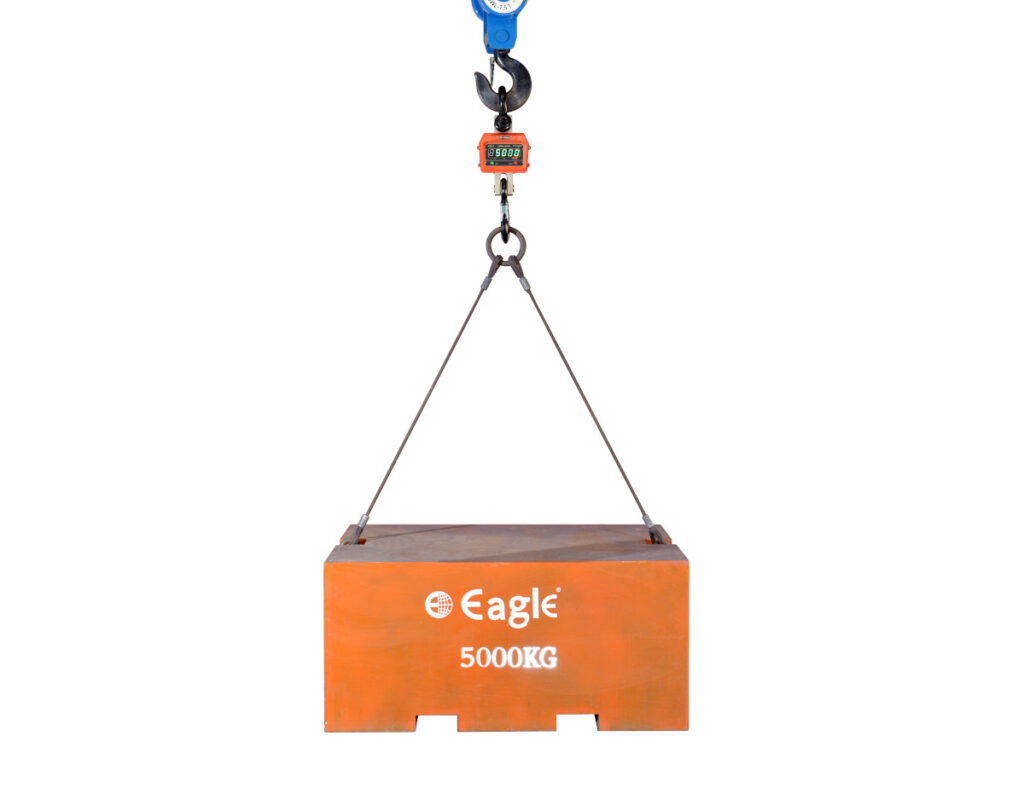

EAGLE rigid construction scale CRN ECON, which is an accurate and affordable model. It’s an IP65 Protected Rigid Aluminium Die Cast Construction Crane Scale from E. G. Kantawalla. With additional Anti-dust, Splash proof and Anti-magnetic plus points.

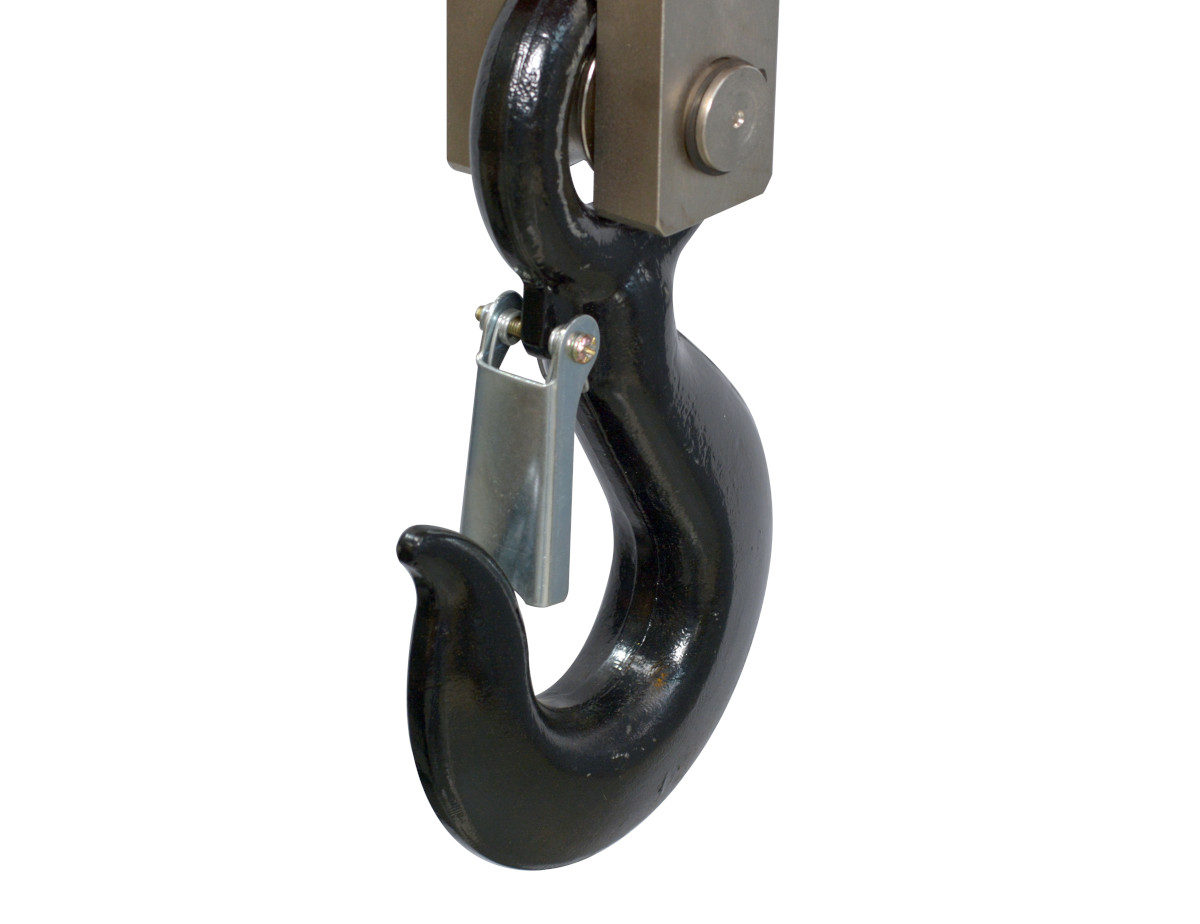

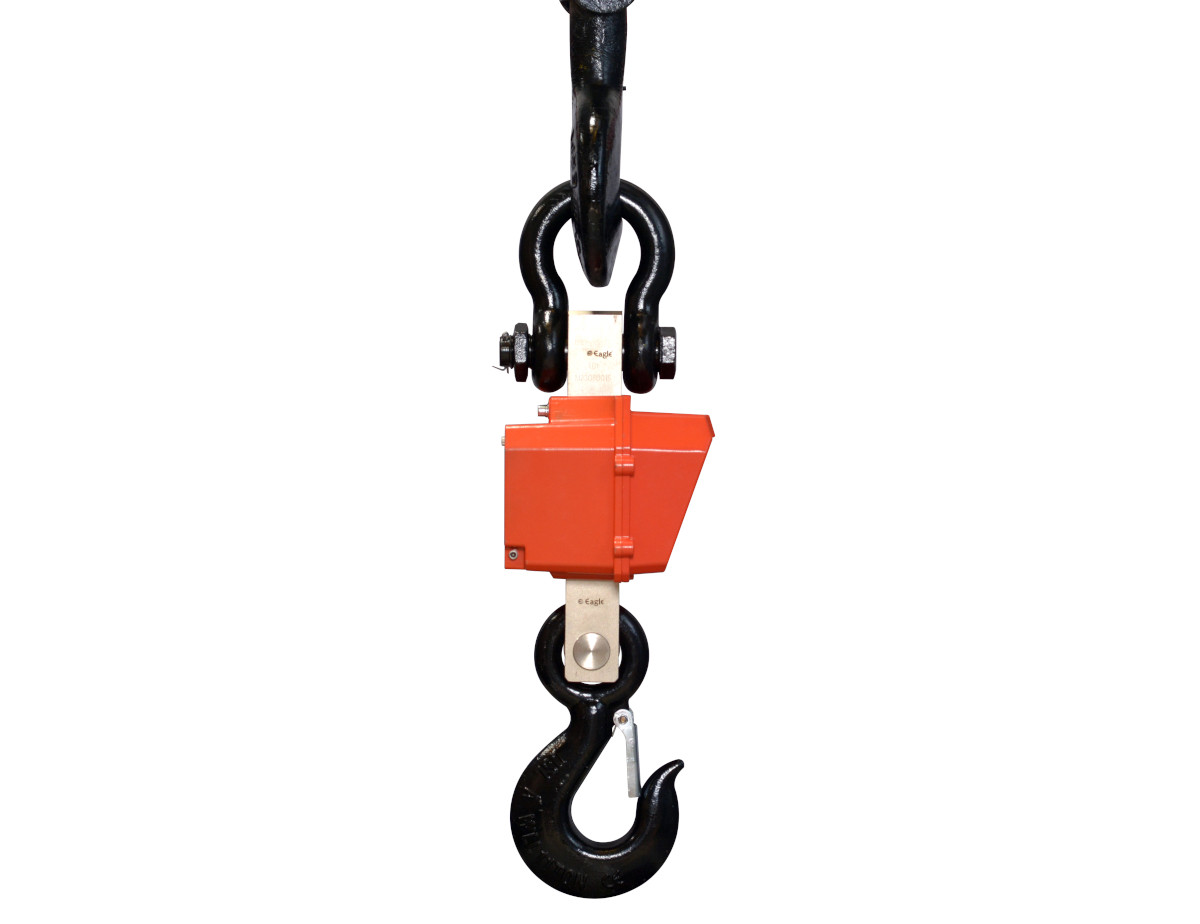

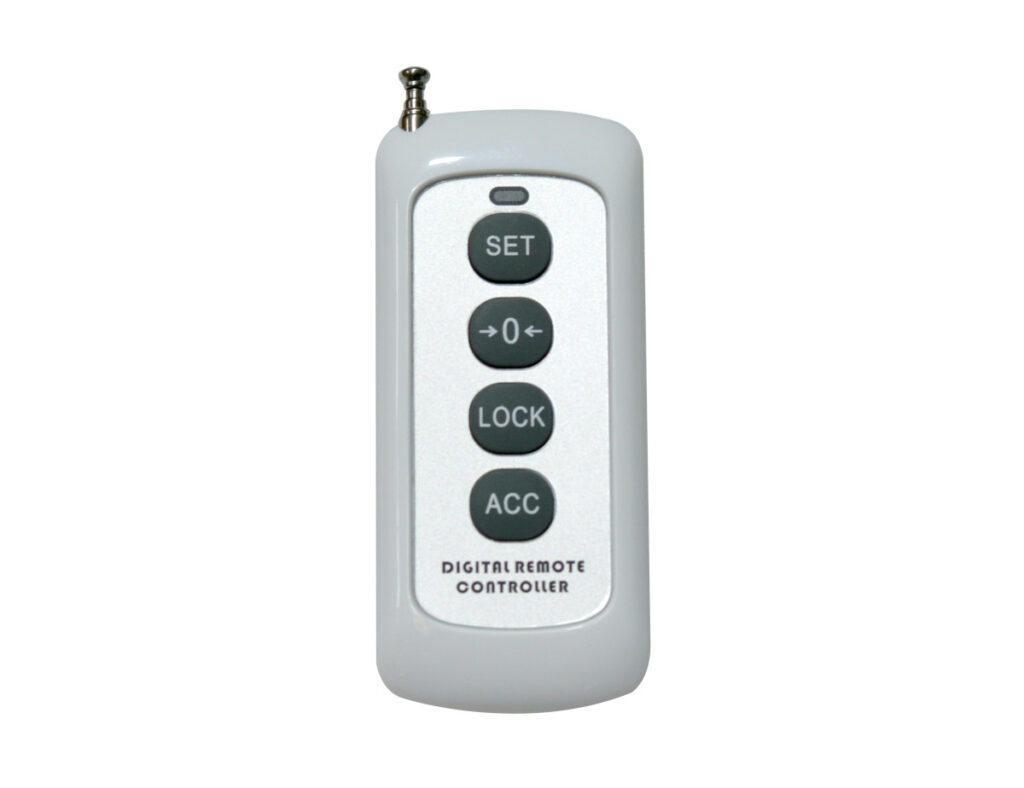

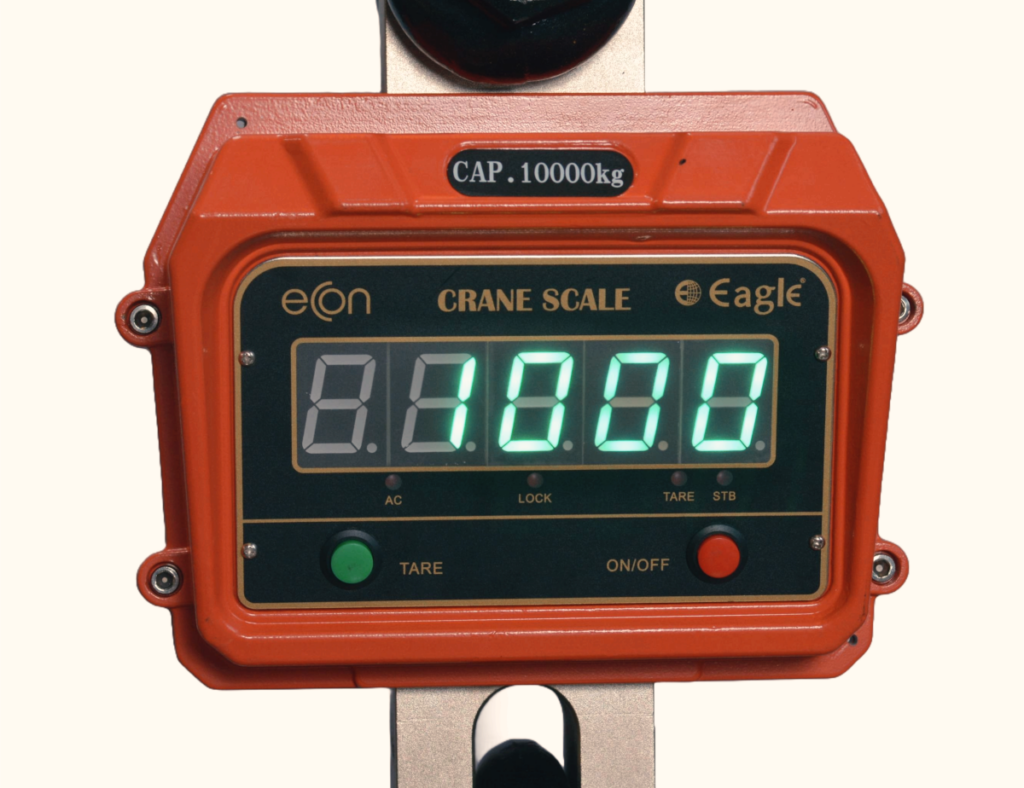

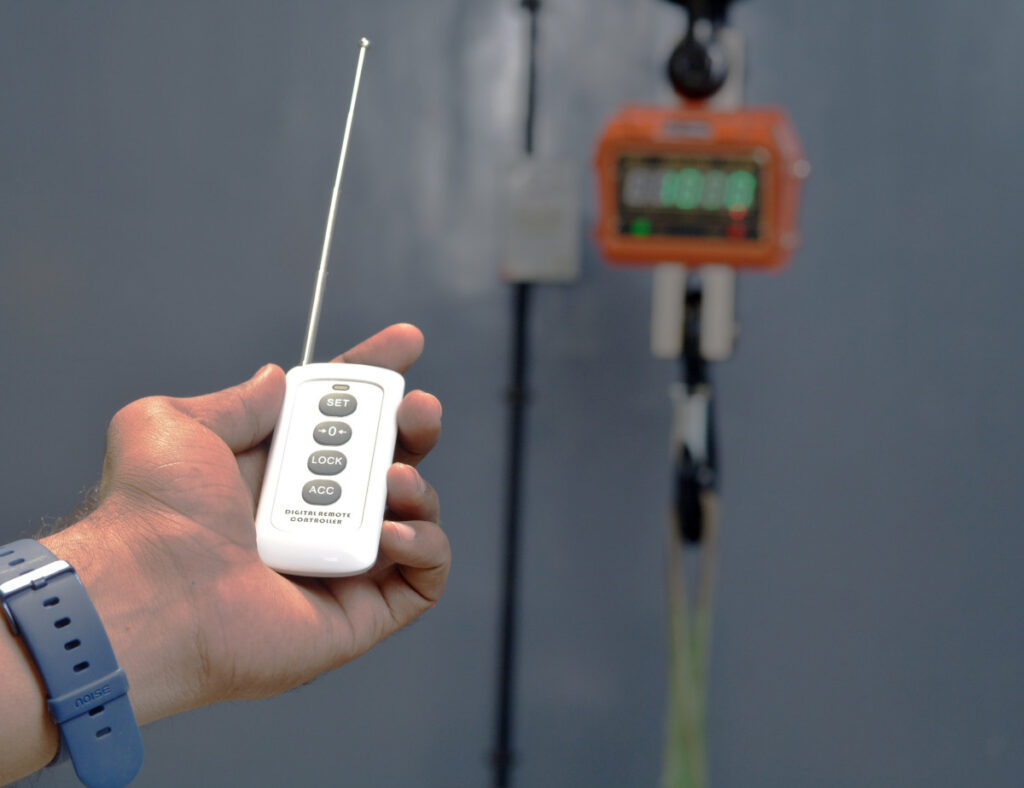

Ideal for use in manufacturing setups, factories, Steel Industries and heavy-duty industrial plants with alloy steel die-pressed bow shackles. It has a fixed lifting hook with a safety latch. Equipped with infrared wireless remote control for simple user-friendly operation and external battery adaptor and 2 sets of batteries for 24×7 use. Its super bright green LED display with a digit height of 30 mm provides an excellent readability in any kind of light conditions.
Range
| Model Name | Capacity | Division | Bow Shackle | Bottom Hook | Display |
|---|---|---|---|---|---|
| CRN ECON | |||||
| 3000 kg | 1Â kg | Alloy Steel | Alloy Steel – Fixed hook | Super Bright Green LED Display – 30 mm Digit height | |
| 5000 kg | 2 kg | ||||
| 10000 kg | 5 kg |
Technical specification
- Assembly – Aluminium cast body
- Weight sensor – Precision loadcell IP65
- Keypad – Mechanical keys, 2 keys
- Display type – Super bright green LED
- Display size – With 30 mm digit height
- Calibration method – Using keys, calibration in kilograms
- Accuracy class – III
- Tare range – 100% F. S.
- Zero range – ±20% F. S.
- Reading stable time – ≦10 s
- Overload alarm – 100% F. S.+ 9 divisions
- Max safety load – 150% F. S.
- Operating temp. – -10℃~+40℃

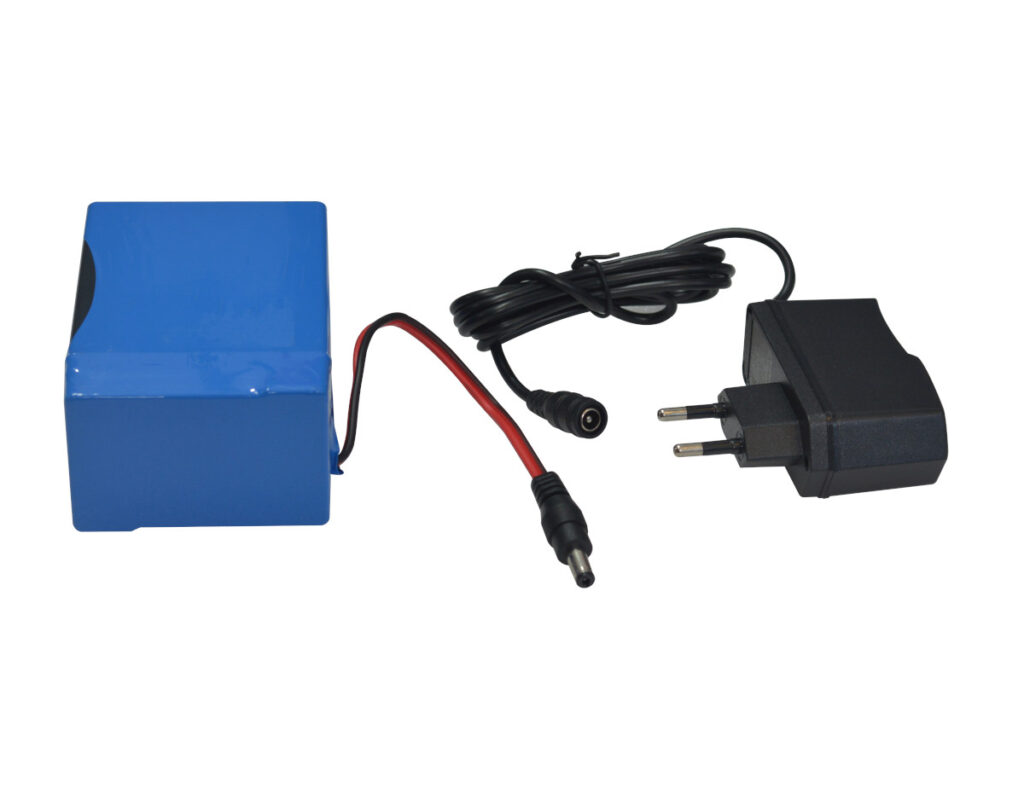

- Battery capacity – 6V, 4 Ah – Lead acid
- Adaptor – AC 110V~240V input, DC 8.4V/1A output
Dimensions
