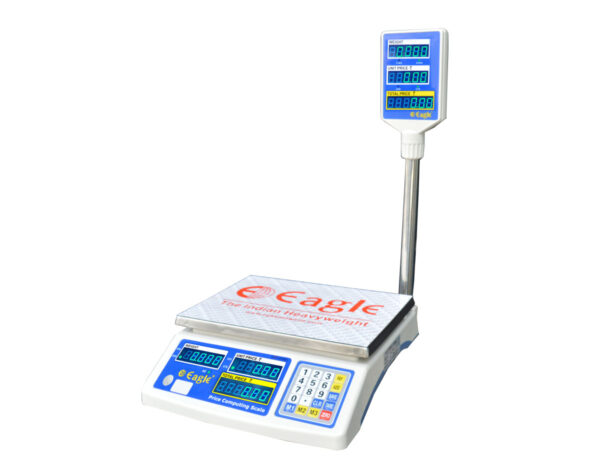

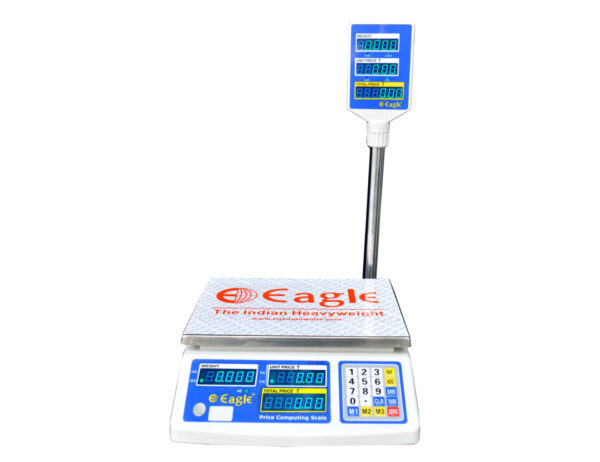

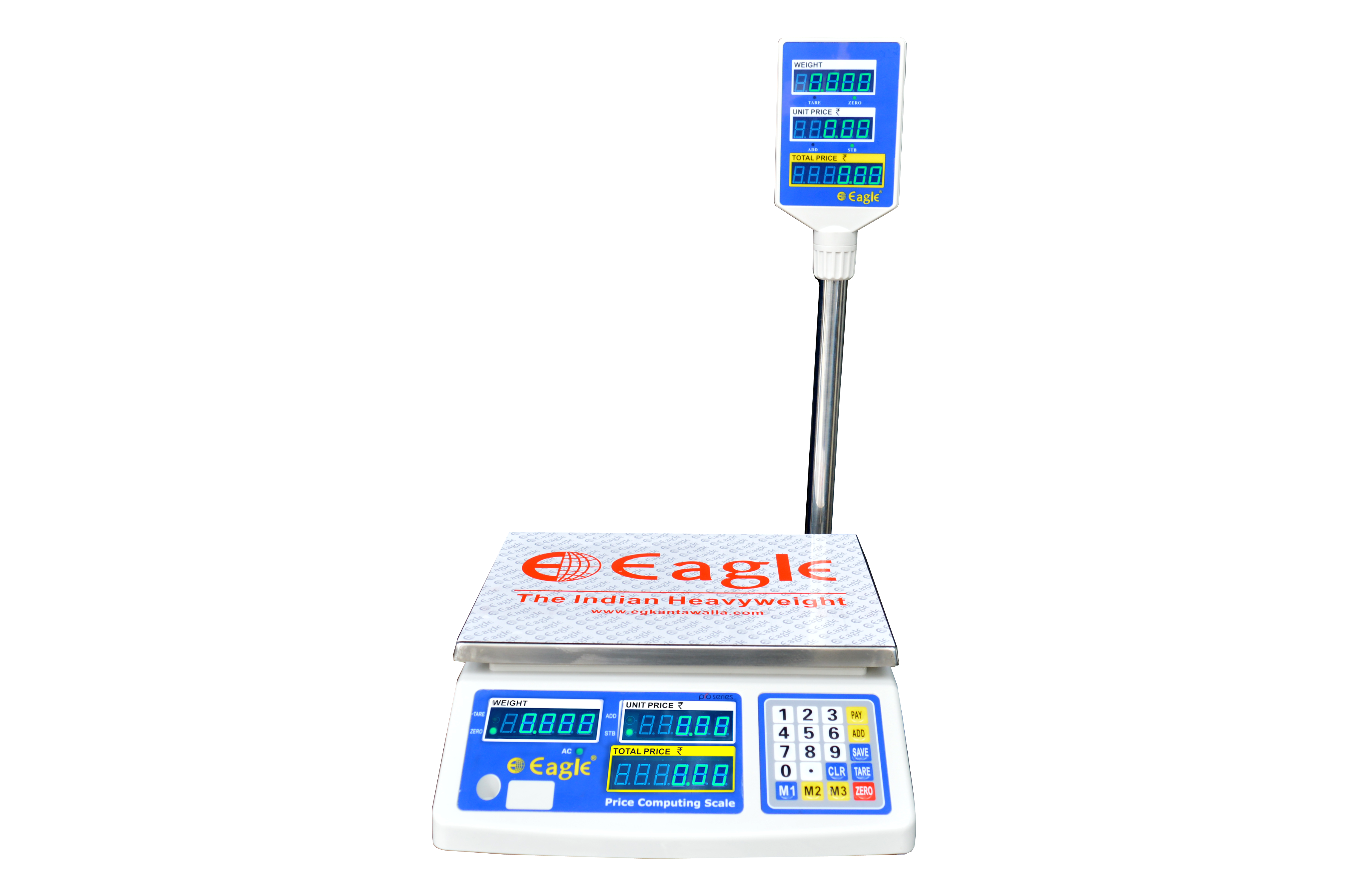

Precision Weighing With Smart Price Computing | EPC Series : 113/123

Precision Weighing With Smart Price Computing | EPC Series : 113/123

-

Rugged & Easy-to-Maintain Build : Constructed with industrial-grade ABS material for durability.

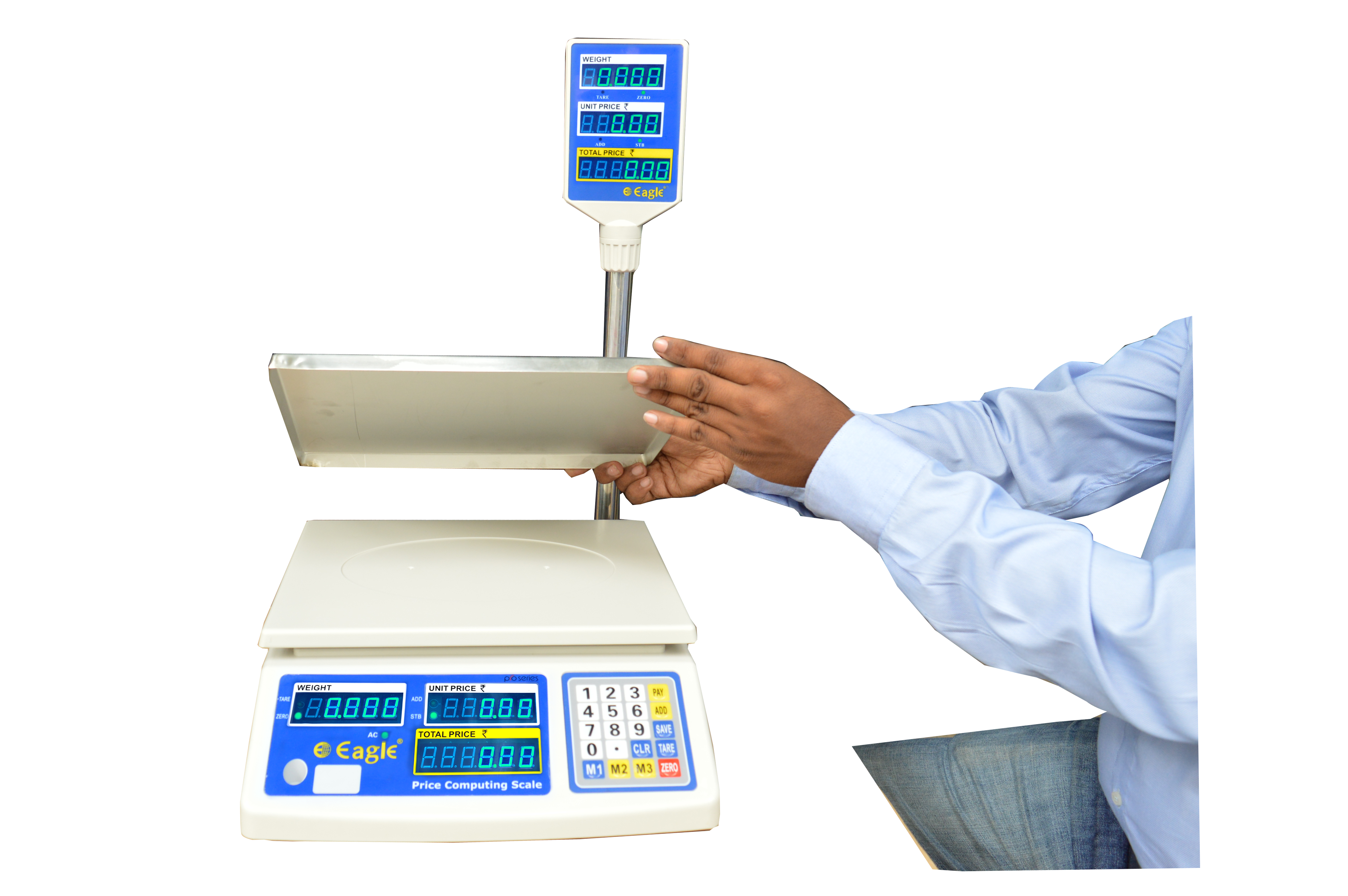

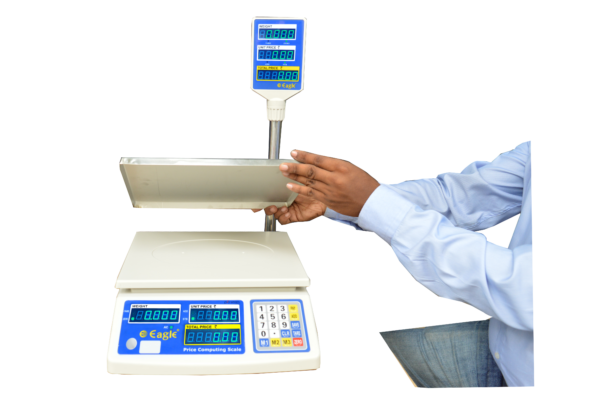

SS304 Stainless Steel Pan (310 x 225 mm) : Rust-resistant and easy to clean.
Compact & Lightweight : Ideal for use in multiple locations like retail counters, markets, and warehouses.

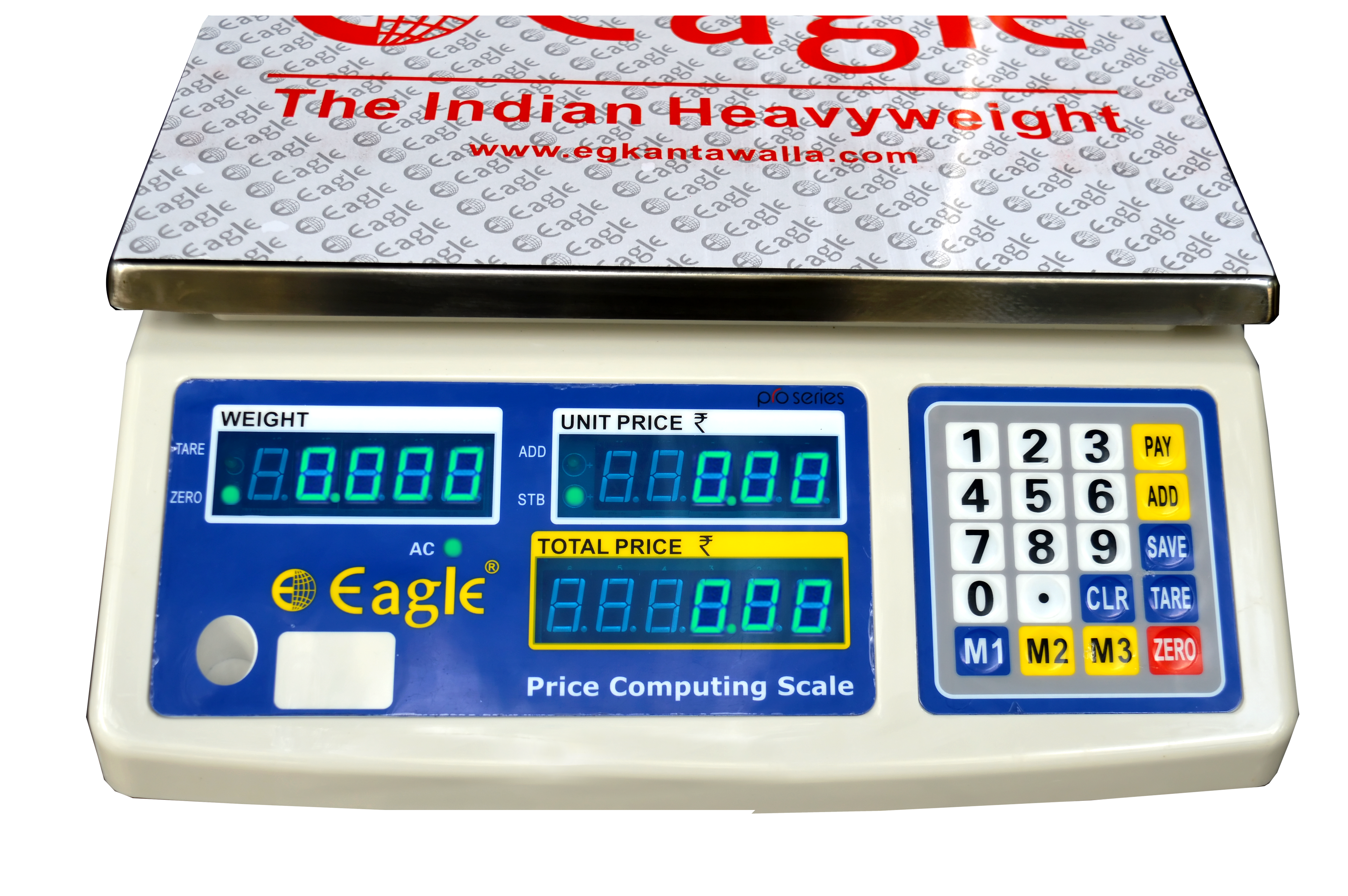

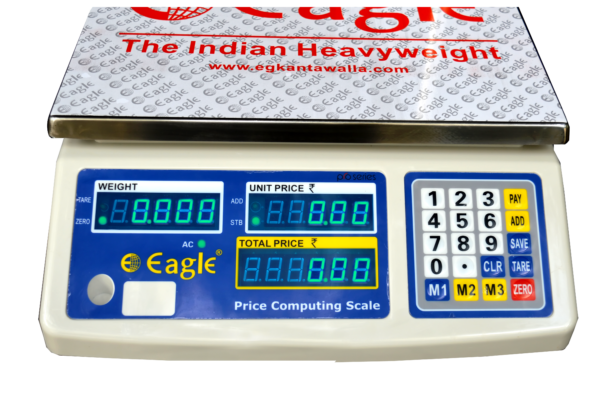

Super Bright LED Display : Large 3-window Green LED display, 15mm digit height) for weight, unit price, and total price visibility.
Enhanced Visibility : Clear weight readings even in low-light conditions.
Dual Power Sources : Operates on both direct power supply and rechargeable battery.

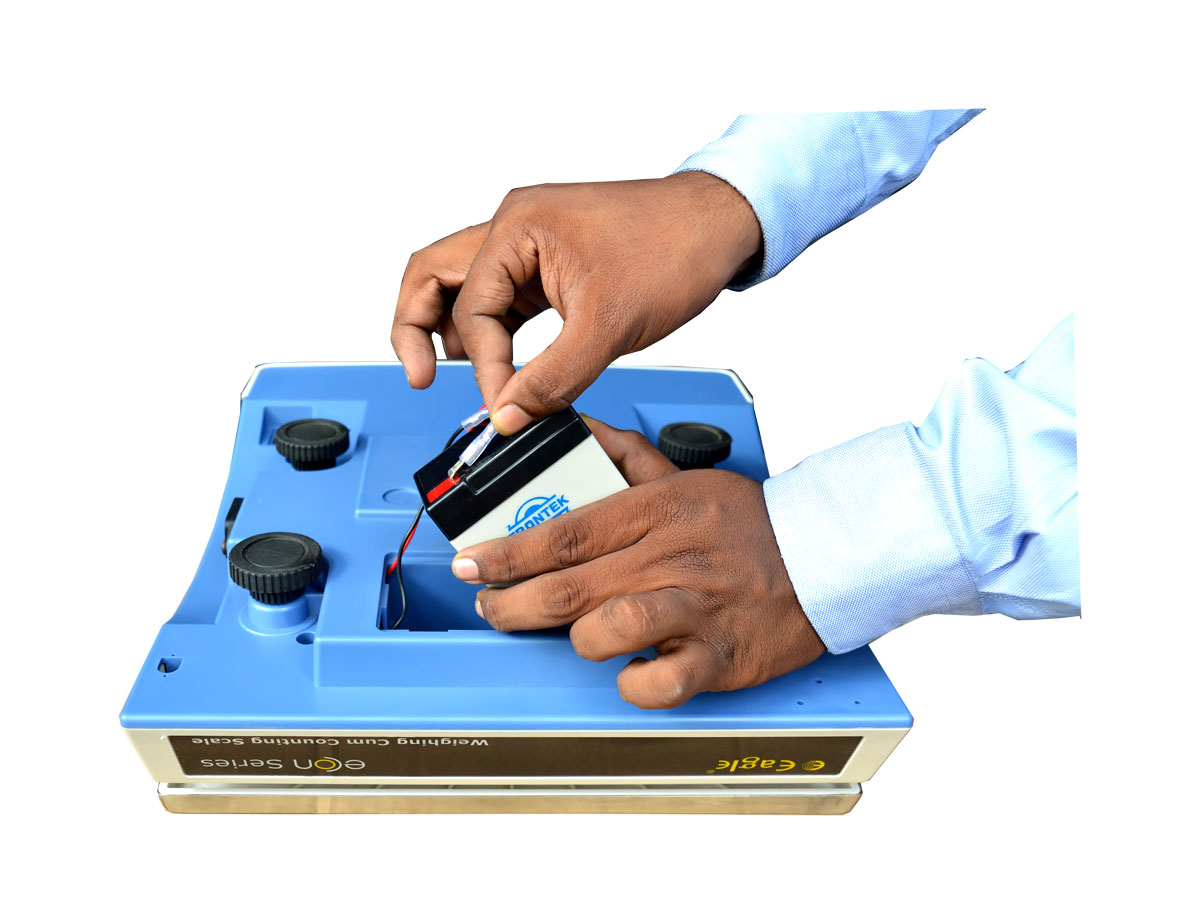

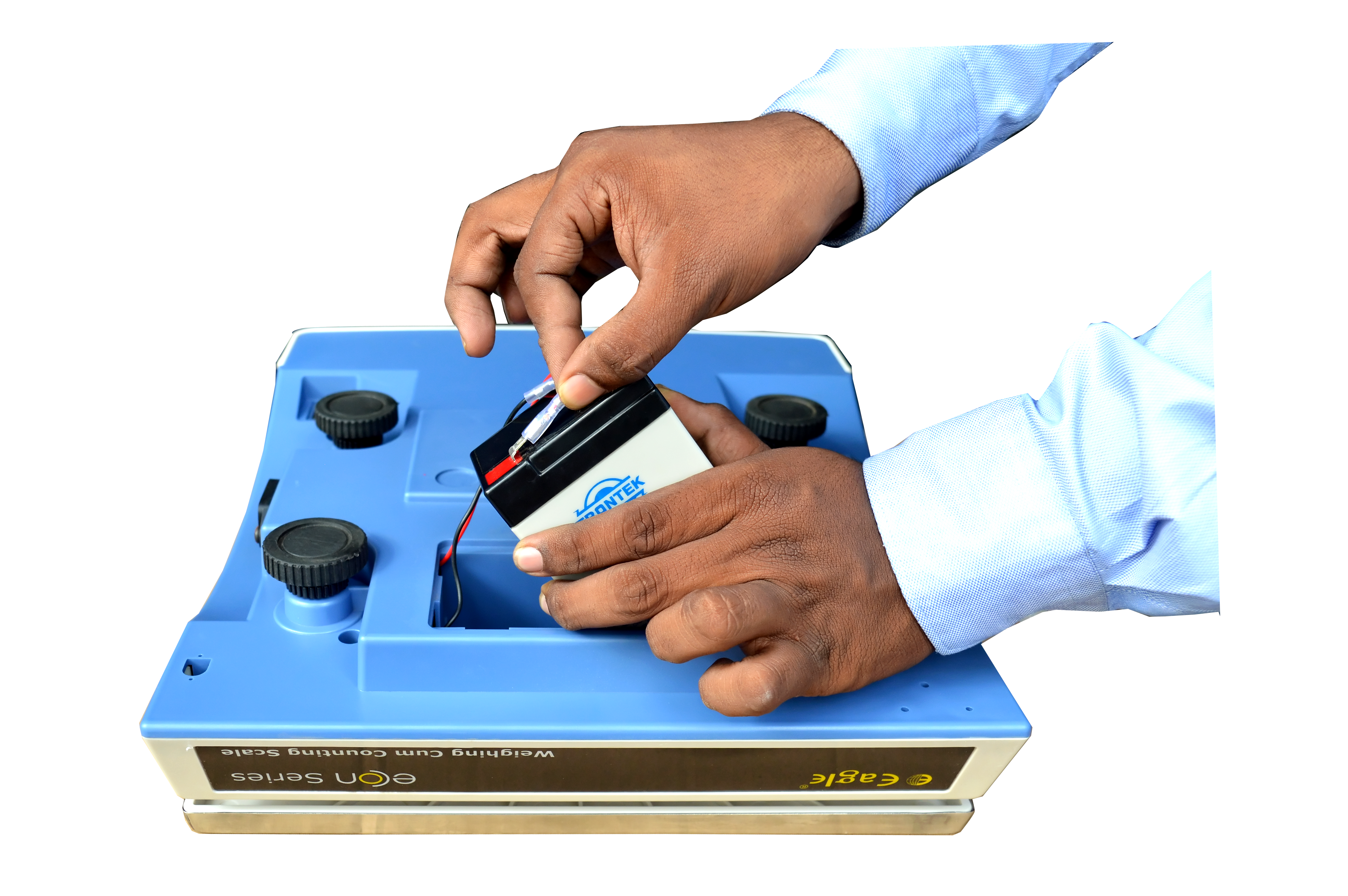

* Lead Acid Rechargeable Battery (DC 6V, 5Ah) : Provides 8 to 10 hours of backup on a full charge.
* Power-Saving Function : Automatically turns off the backlight when not in use to conserve battery.
Primary Functions : Supports simple weighing, price computing, and accumulation.
Fast Weighing Response : Ensures quick and accurate results for improved efficiency.
External Calibration : Easy calibration process for consistent accuracy.
Precision Load Cell Technology : Delivers high-accuracy measurements every time.
Smart Storage & Usability : 3 Memory Locations : Store unit prices and recall them easily for frequently used products.

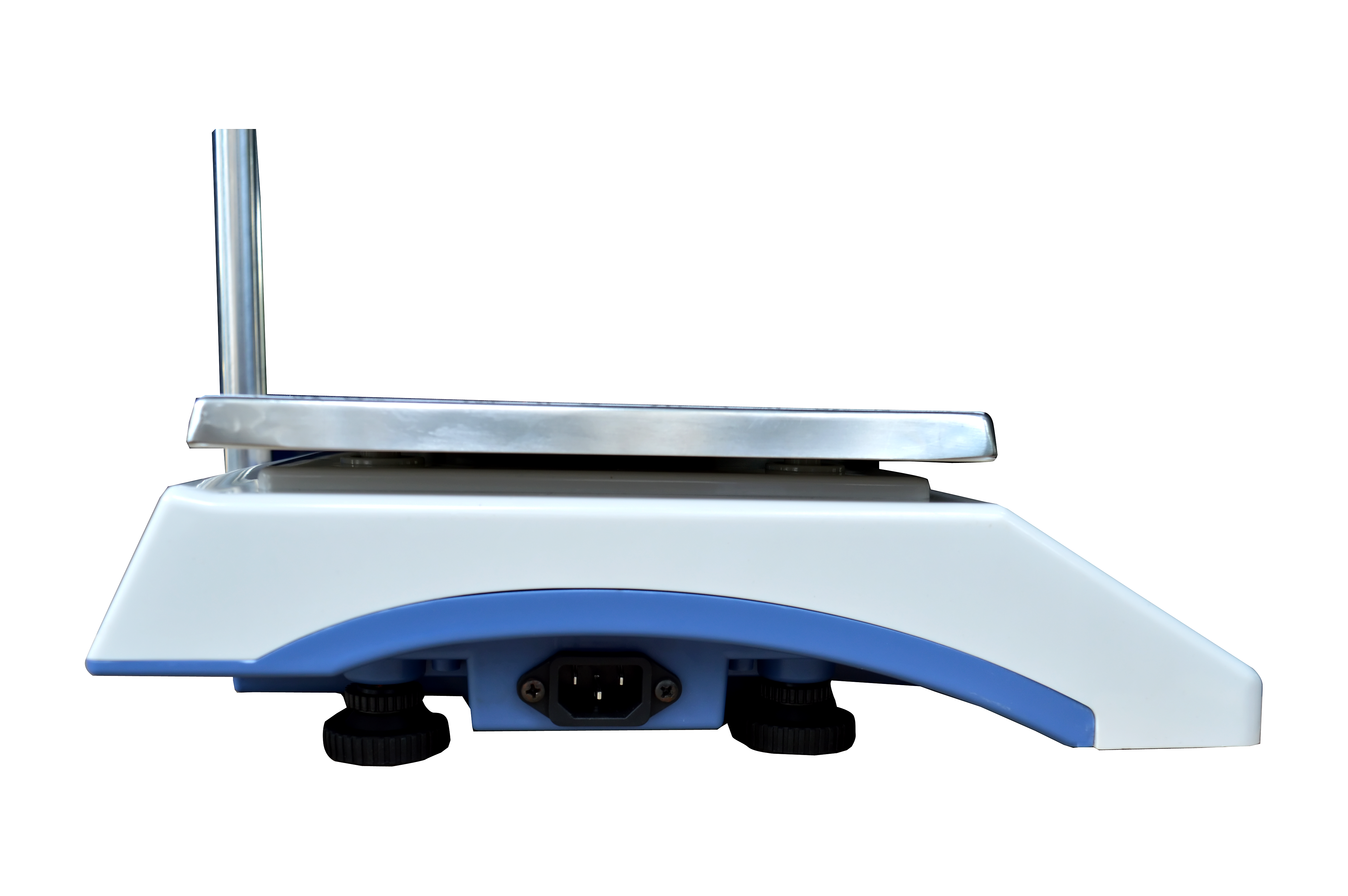

Anti-Slip Adjustable Leveling Feet : Provides stability on uneven surfaces.

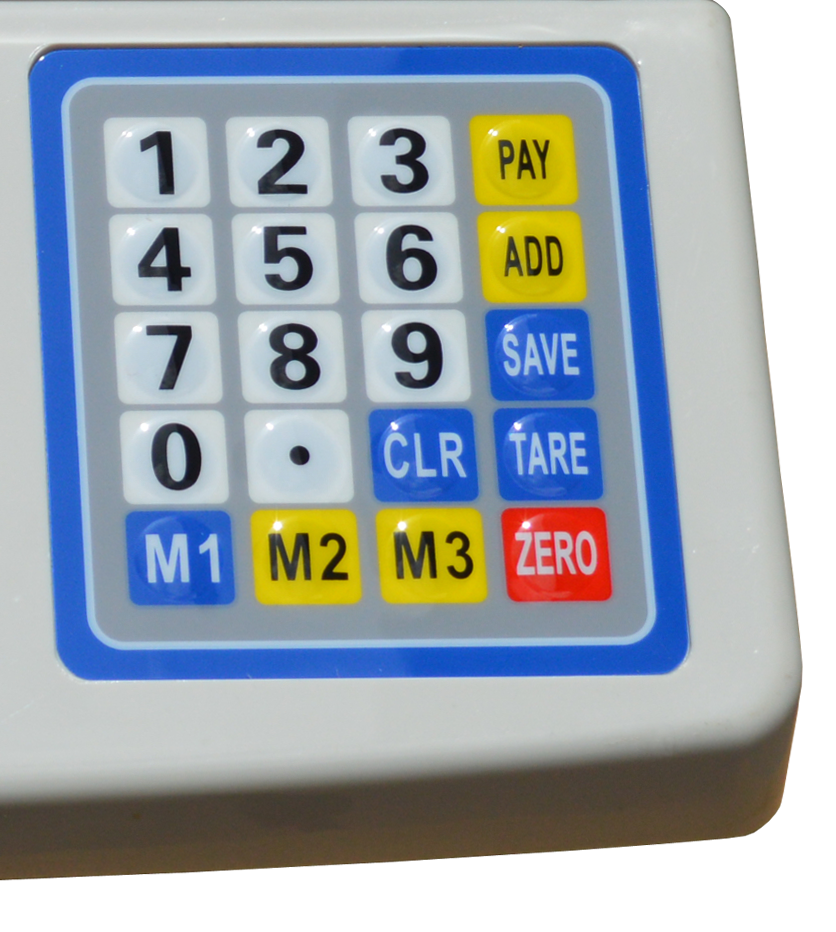

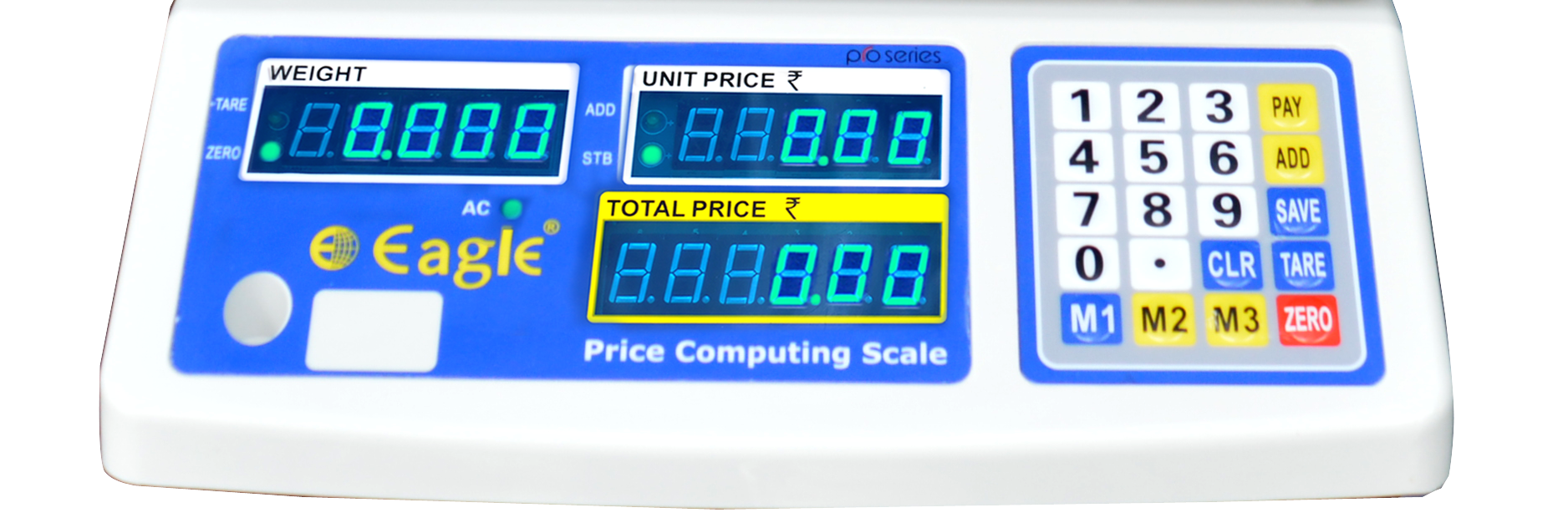

Color-Coded & Sealed Keypad : 20 tactile keys designed for operation in rugged environments.
Overload Protection : Prevents damage due to excessive weight.
Low Battery Indication : Alerts users to recharge for uninterrupted operation.
High Mobility: Thanks to rechargeable battery operation, compact, lightweight construction, it is suitable for the use in several locations (Jewellery industries & shops, School/collage test laboratories, Research and development facilities, Pharmaceutical research centers, Quality control labs, Food processing industries, etc.)
Spirit Level Indicator
The spriti level indicator in the is placed at the corner of the keyboard and this helps the user to ensure the weighing scale is in perfect level. Maintaining level is important because the accuracy of the scale depends on the object being placed on a level surface.
Fast Weighing Response : Quick and accurate results to improve efficiency.
Simple & User-Friendly Operation : Easy-to-use interface for hassle-free weighing.
External Calibration : Ensures precision with easy one key press.
Anti-Slip Adjustable Leveling Feet : Provides stability on uneven surfaces.
Precision Load Cell Technology : Ensures high accuracy in every measurement.
Overload Protection : Prevents damage from excessive weight.
Low Battery Indication.

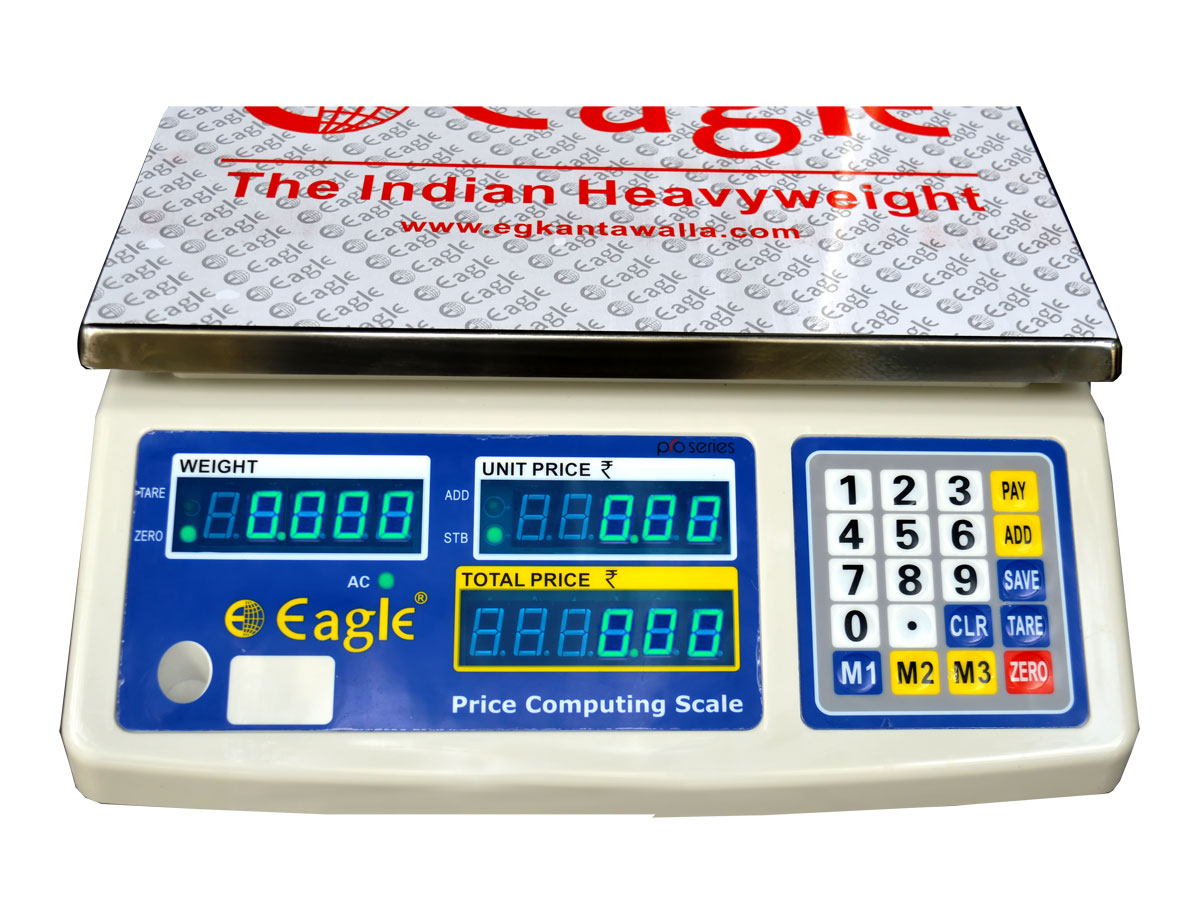

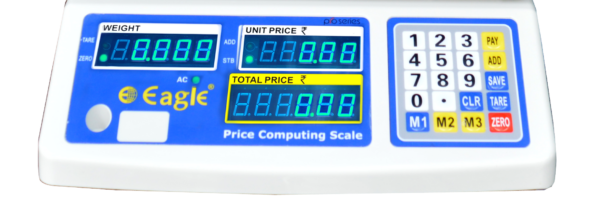

Three separate display for Unit Price, Weight and Total Price.

8,071.008,471.00


7 days Returnable 7 days Returnable
Free Delivery Free Delivery
1 Year Warranty 12/24 Months Warranty
Cash/Pay on Delivery Secure Transaction
Amazon Delivered 24/7 Support

Description

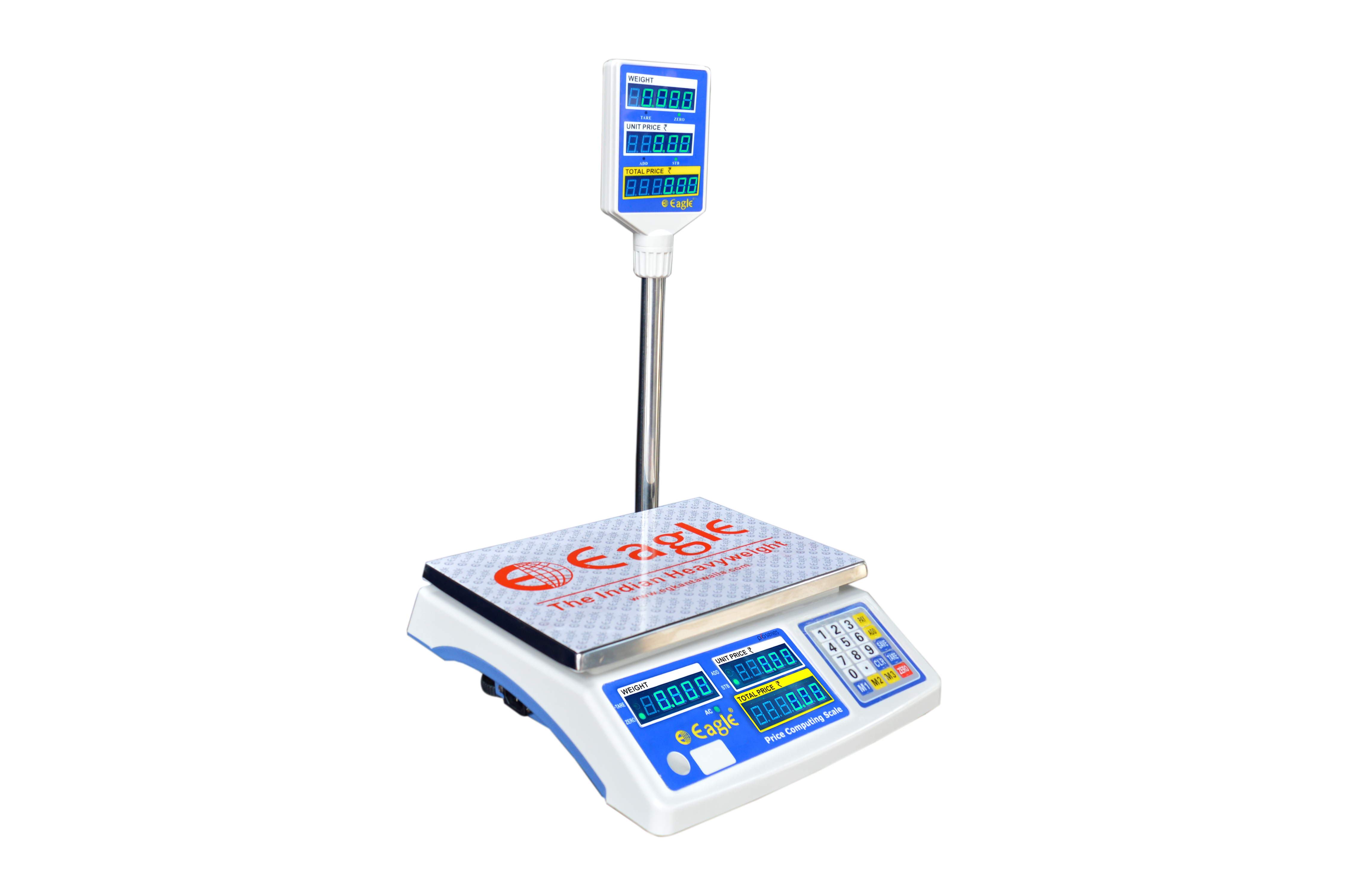

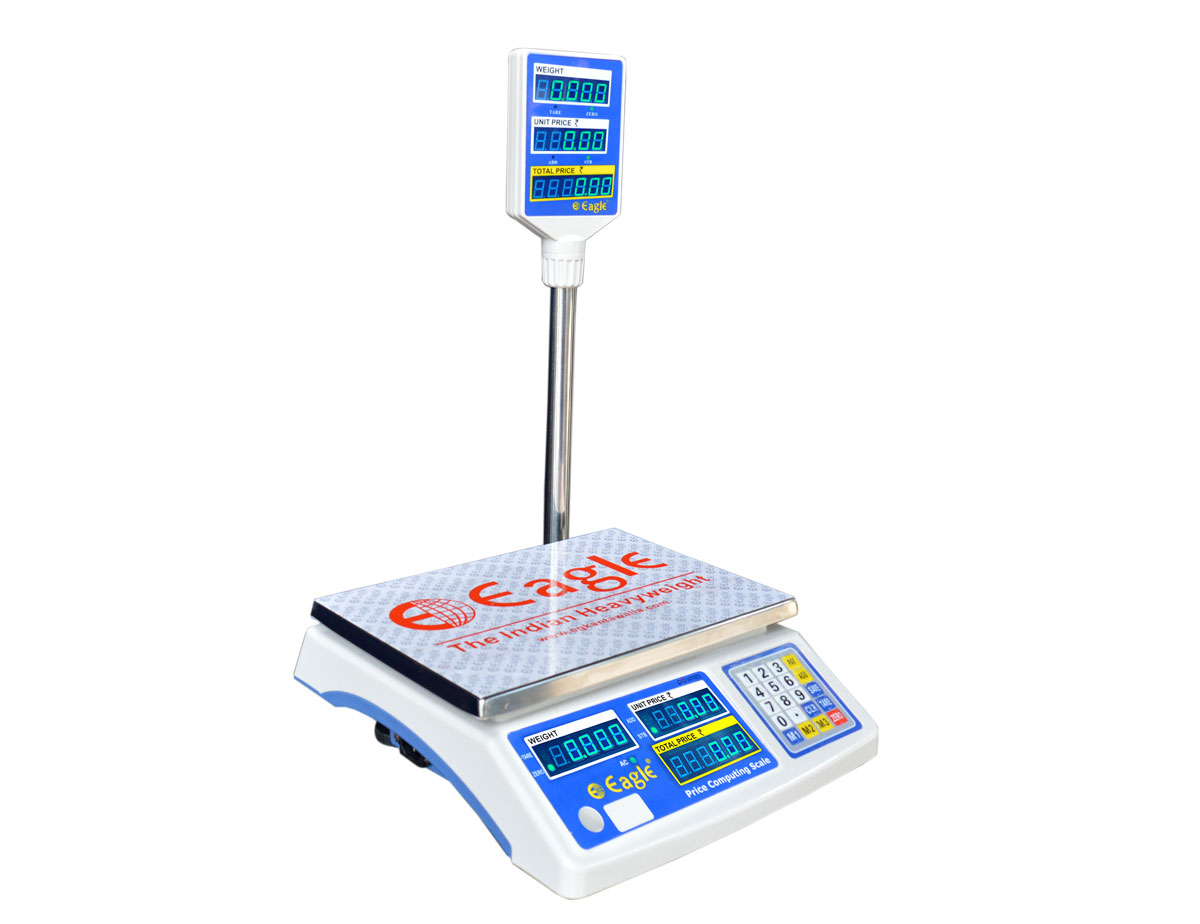

Eagle’s EPC-Series is a versatile and reliable price computing scale designed for grocery stores, retail shops, and food service applications. Featuring a stainless steel pan (310 x 225 mm), a bright 15 mm Green LED display, and 3 direct PLU keys, it ensures fast and accurate weighing. With a built-in rechargeable battery, amount accumulation function, and a dust protective cover, this scale is ideal for everyday commercial use. Built with rugged industrial-grade construction, it ensures durability, precision, and ease of use in all environments.

Range

Model No.

Capacity

Division

Platform Size

Body Material

Pan Material

Load cell

Display

EPC 113

7.5/15 kg

1/2 g

225 x 310 mm

ABS Plastic

Stainless Steel 304

1 Pc – Aluminum IP 65

Front & Back – Green LED 15 mm

20/30 kg

2/5 g

10/20/30 kg

1/2/5 g

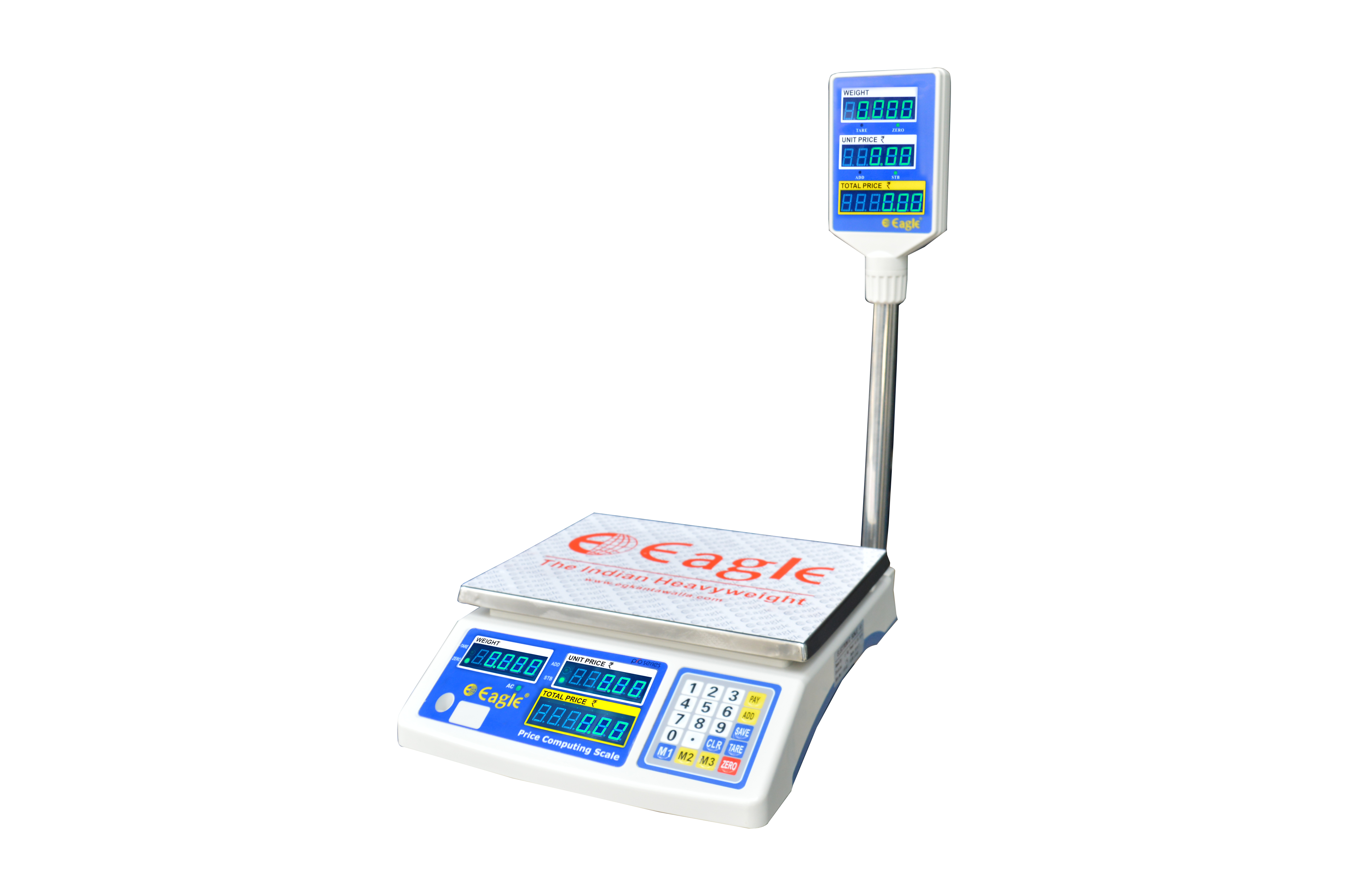

EPC 123

20/30 kg

2/5 g

225 x 310 mm

ABS Plastic

Stainless Steel 304

1 Pc – Aluminum IP 65

Pole Display – Green LED 15 mm

Technical specification

Particulars

  • Assembly – Industrial grade ABS Material Assembly
  • Sampling speed – 40 times/second
  • Weight Sensor – Aluminium Loadcell – IP65
  • Keypad – 20 keys
  • No. of Display – EPC 113 : 3 Window Front display & Back display

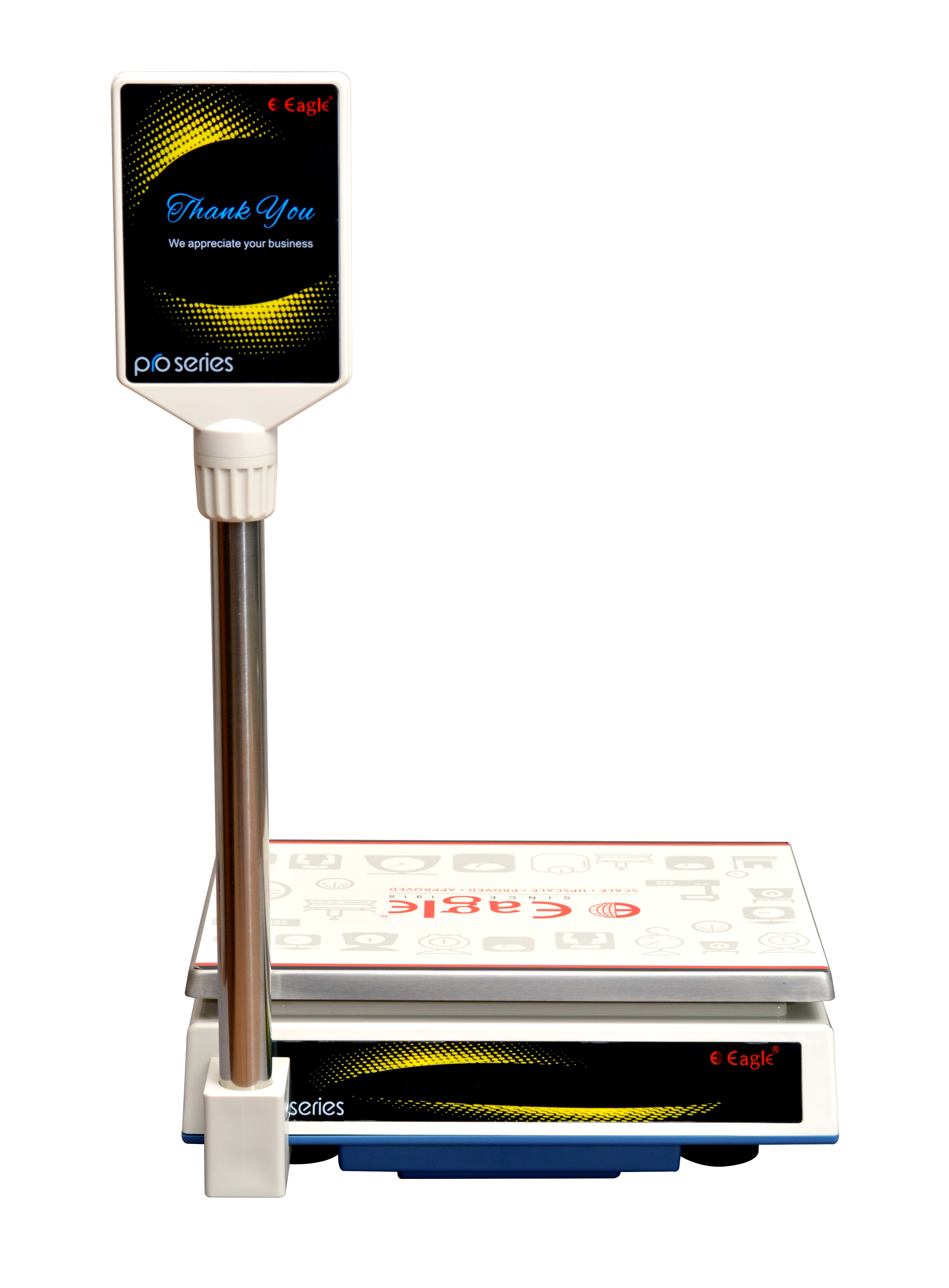

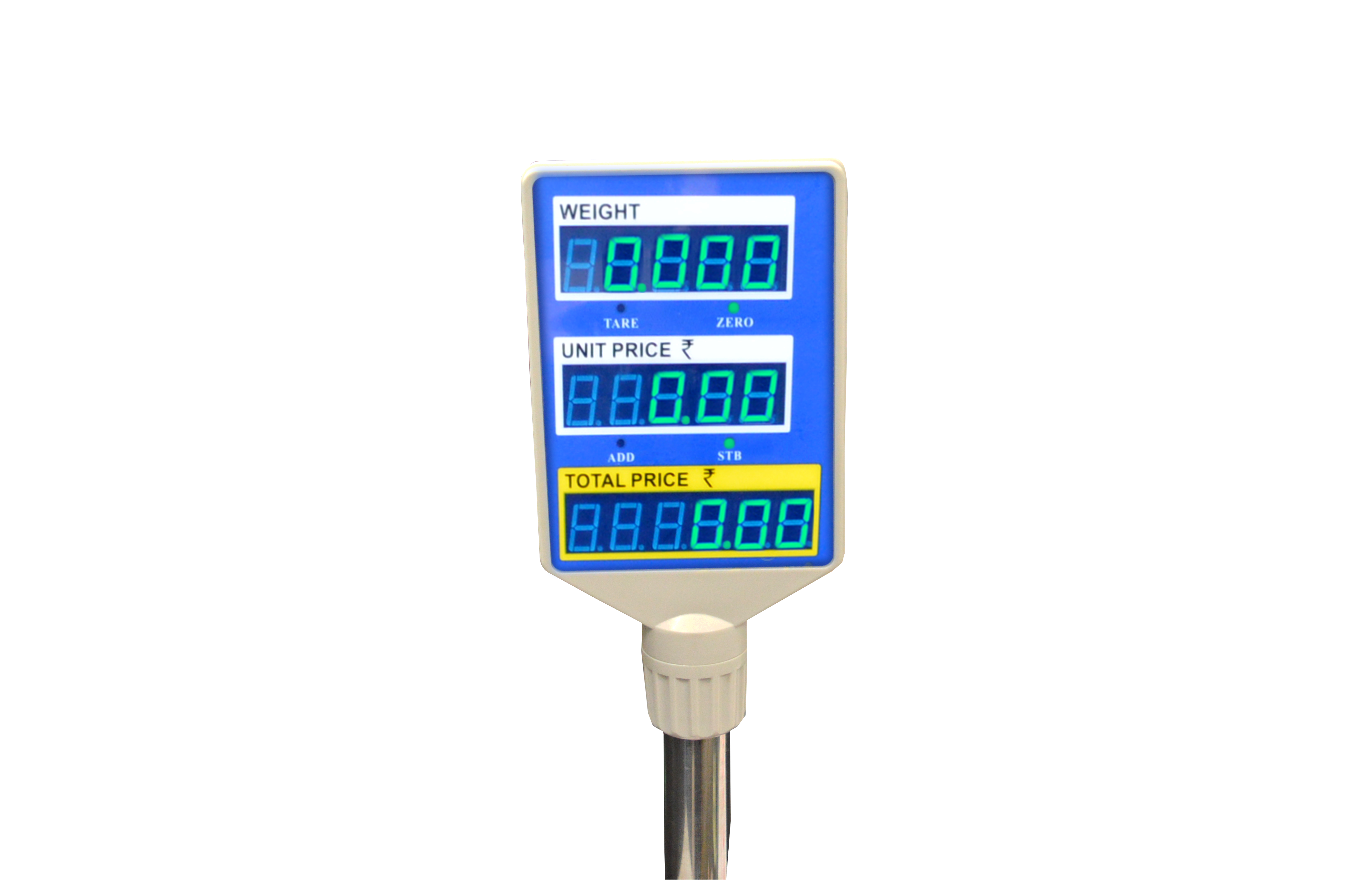

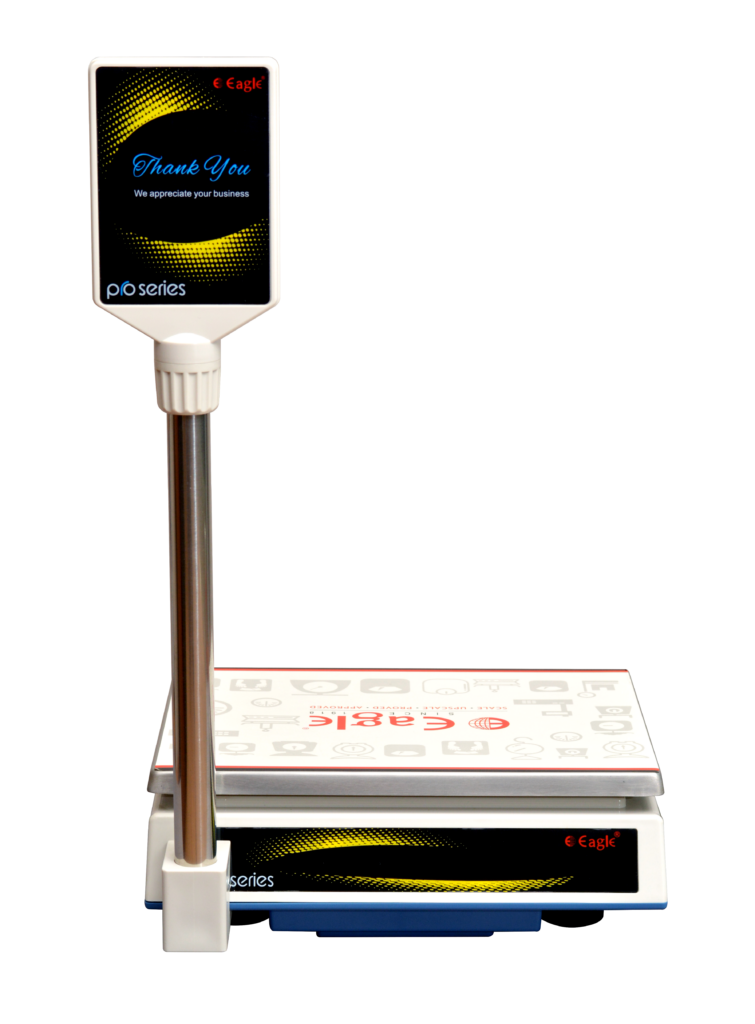

    EPC 123 : 3 Window Front display & Pole display

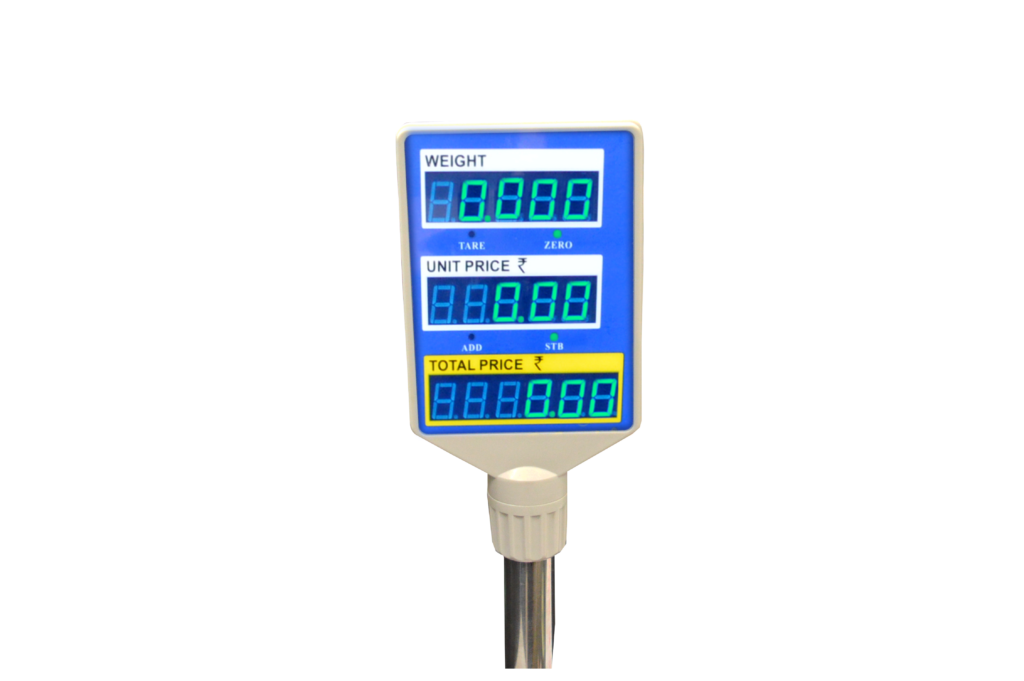

    Window 1 : Total weight, Window 2 : Unit Price, Window 3 : Total Price
  • Display Type – LED display (Green LED)
  • Digit Height – 15 mm digit height (Front display, Back display, Pole Display)
  • Calibration Method – External Calibration
  • Stable Time – <4 sec
  • Operating Humidity – 80% RH Max (Non-Condensing)
  • Over-load – 100 % Of Scale Capacity +9e
  • Full Capacity Tare
  • Power Supply – 110 to 230 V, AC 50 Hz
  • Operating Temperature – +10 deg to +40 deg
  • Battery Capacity – Lead Acid – 6 V, 5 Ah
  • Battery Backup – Estimated 8-10 hrs on full charge
  • Mounting Type – Table Mount
  • Net Weight – EPC 113 : 3.2 kg approx, EPC 123 : 3.5 kg approx (without battery)

Dimensions



Additional information

Capacity

7.5/15 kg, 10/20/30 kg, 20/30 kg

Model

113, 123
