Tabletop Weighing Scale – Durable, Accurate & Compact for Industrial & Commercial Use | ELT

Categories: Industrial, Table Top Weighing Scale
SKU: N/A

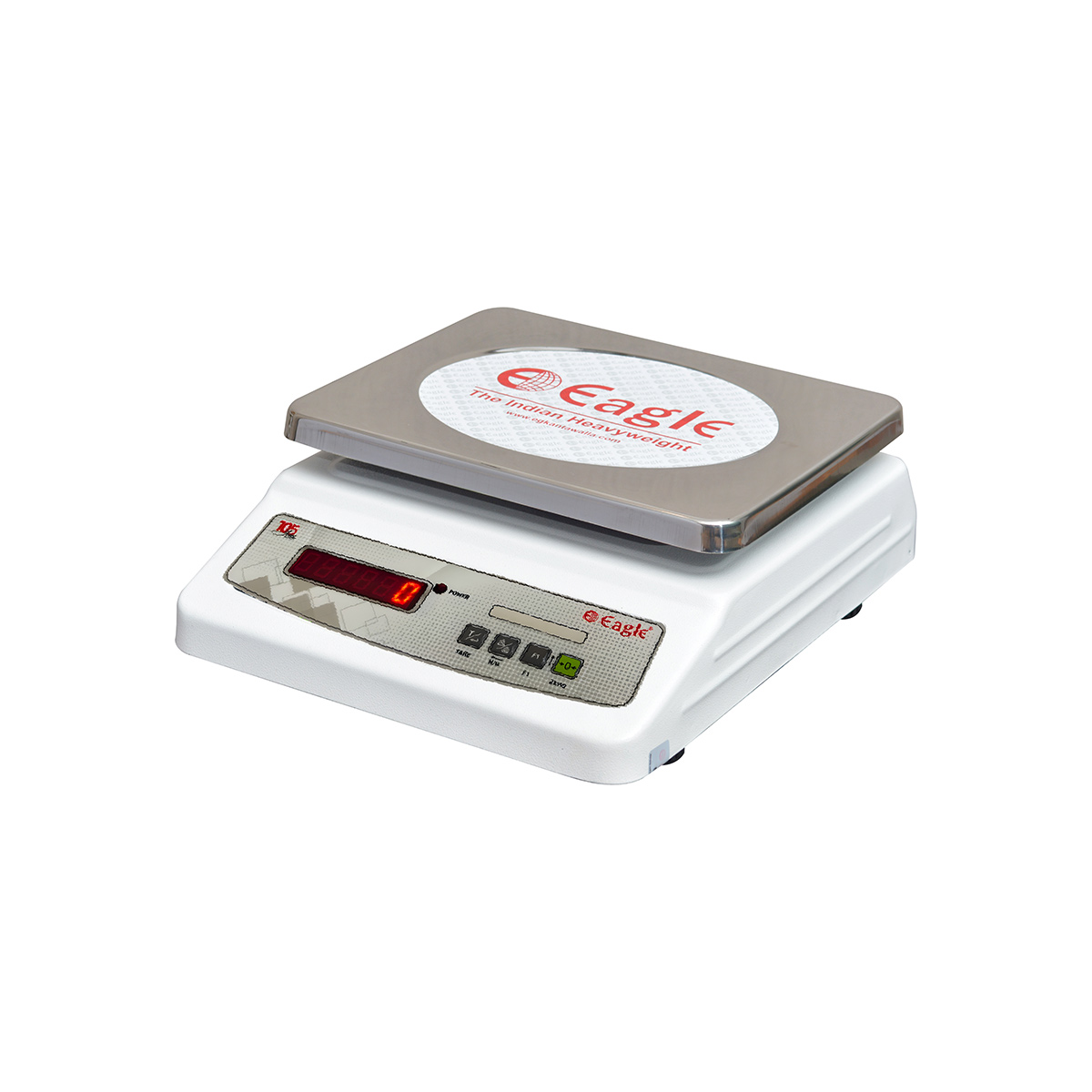

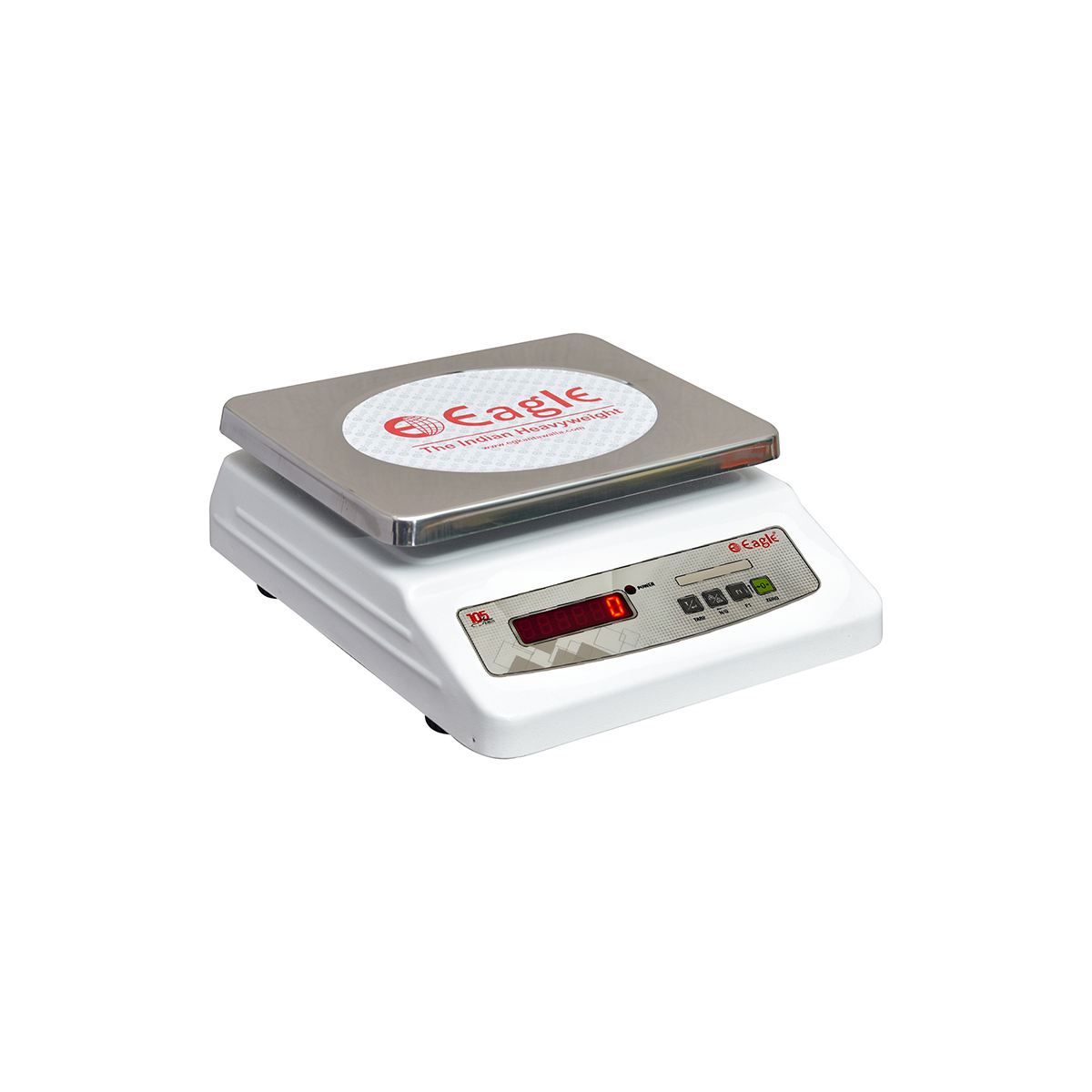

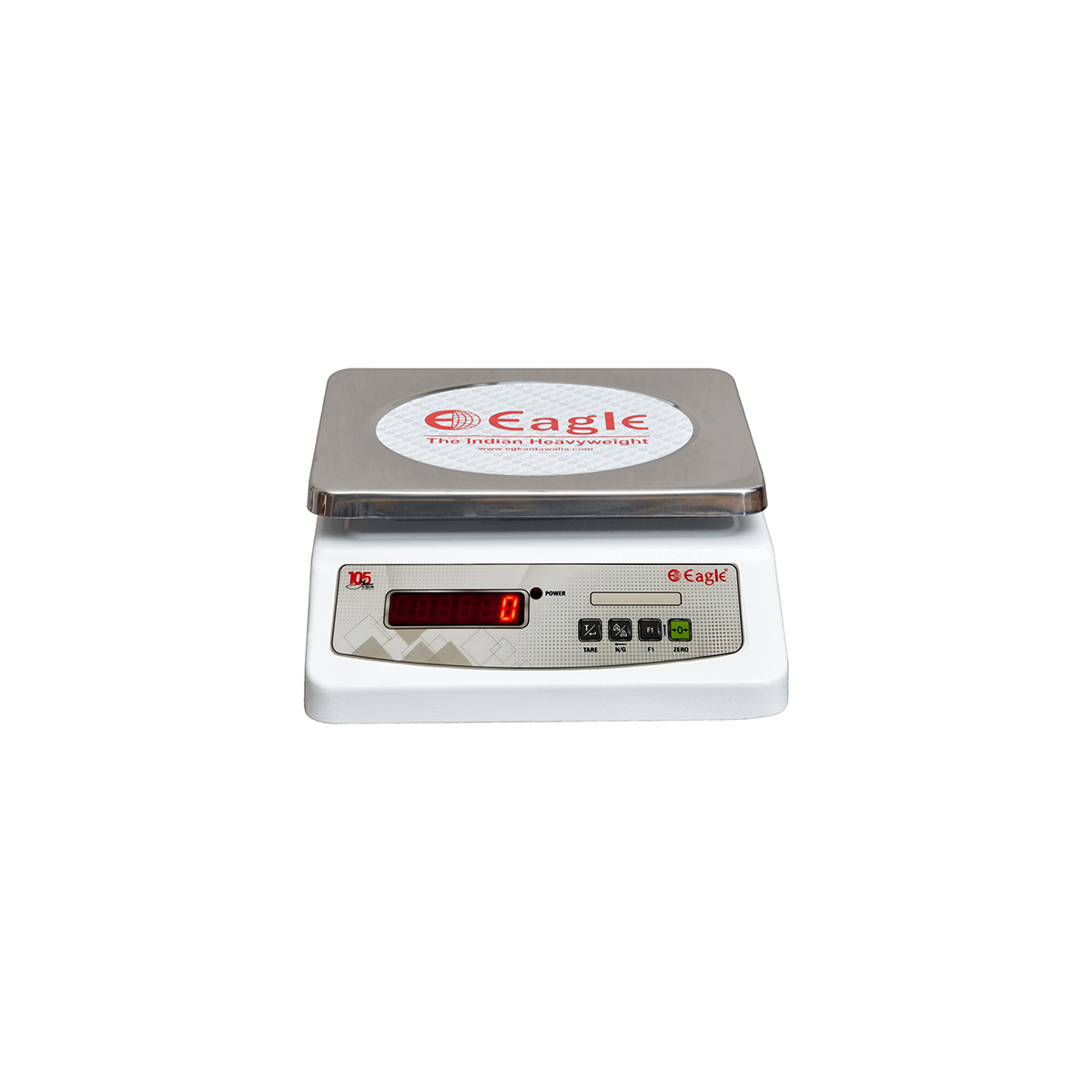

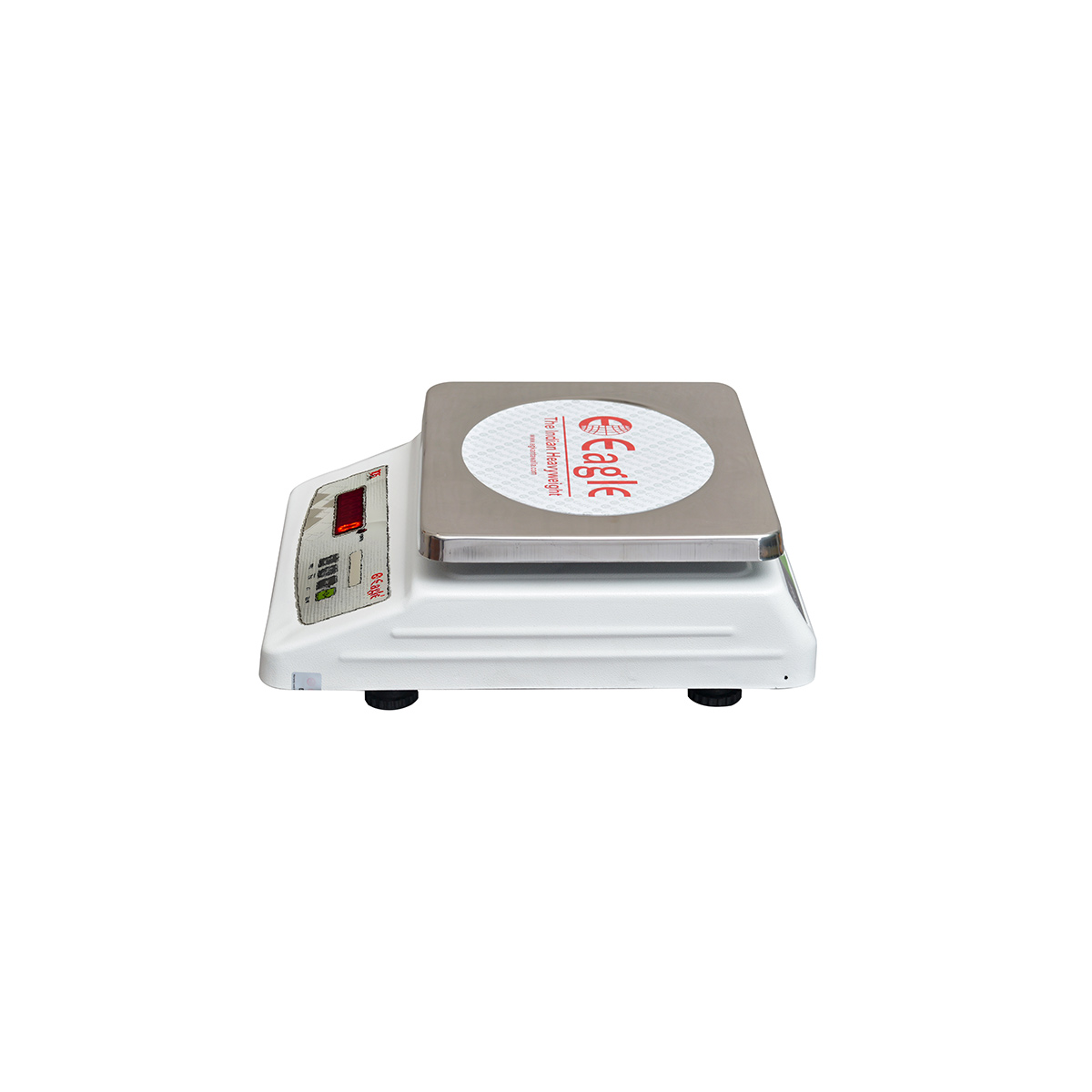

Rugged and Easy To Use Design: The body which is made entirely of Mild Steel Material, is rugged and easy to maintain. It can be easily cleaned with a damp cloth. Soft Touch key operation with SS202 stainless Steel Pan having a size of 295 x 235 mm.

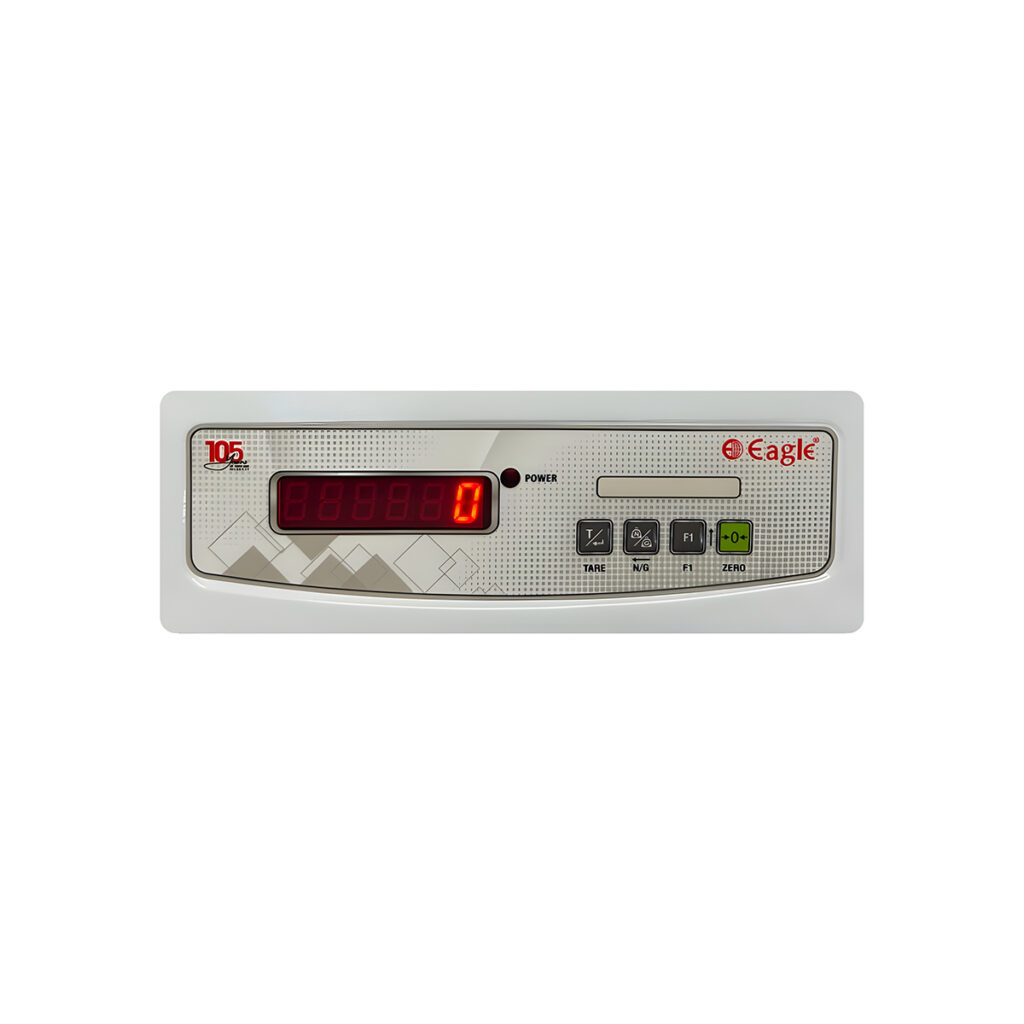

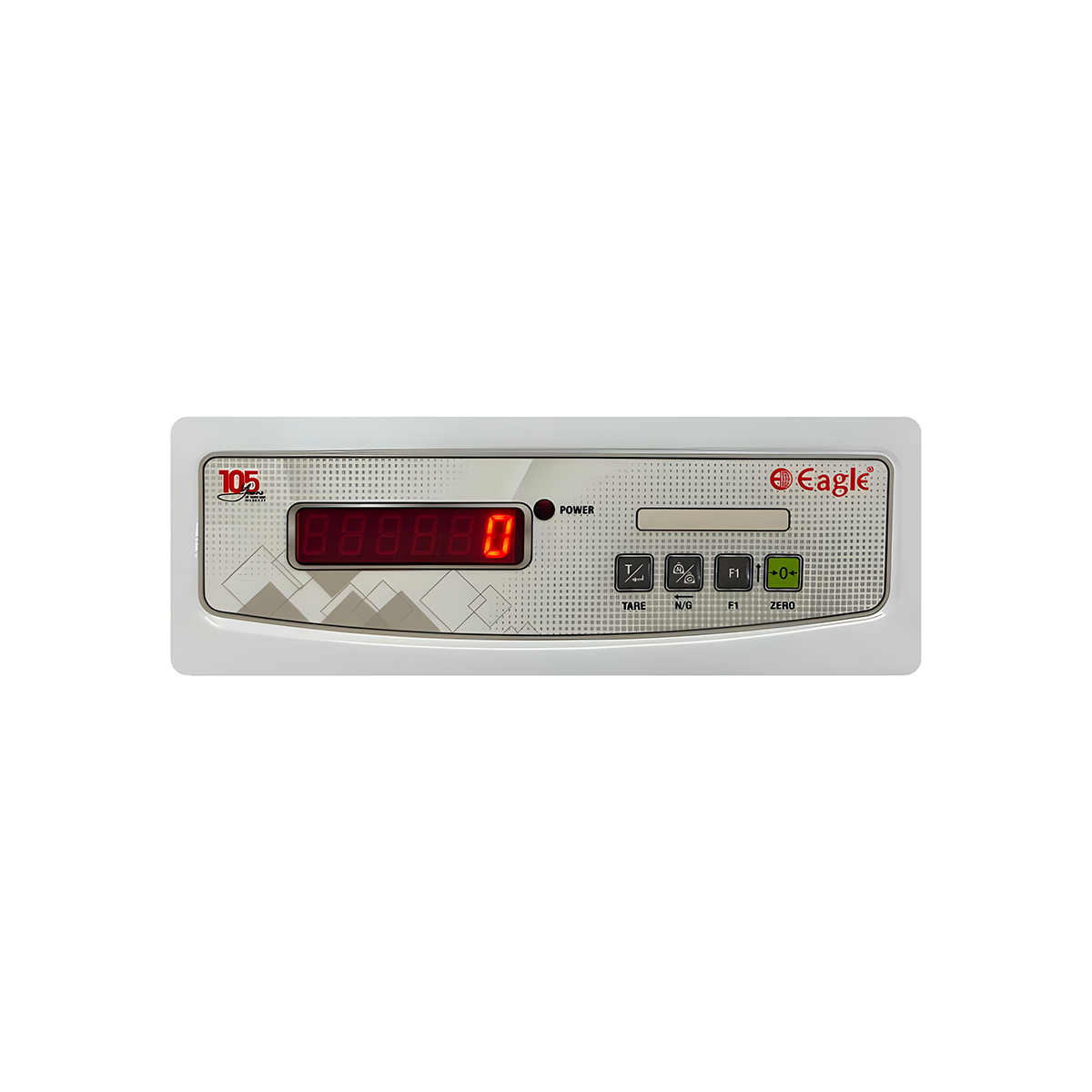

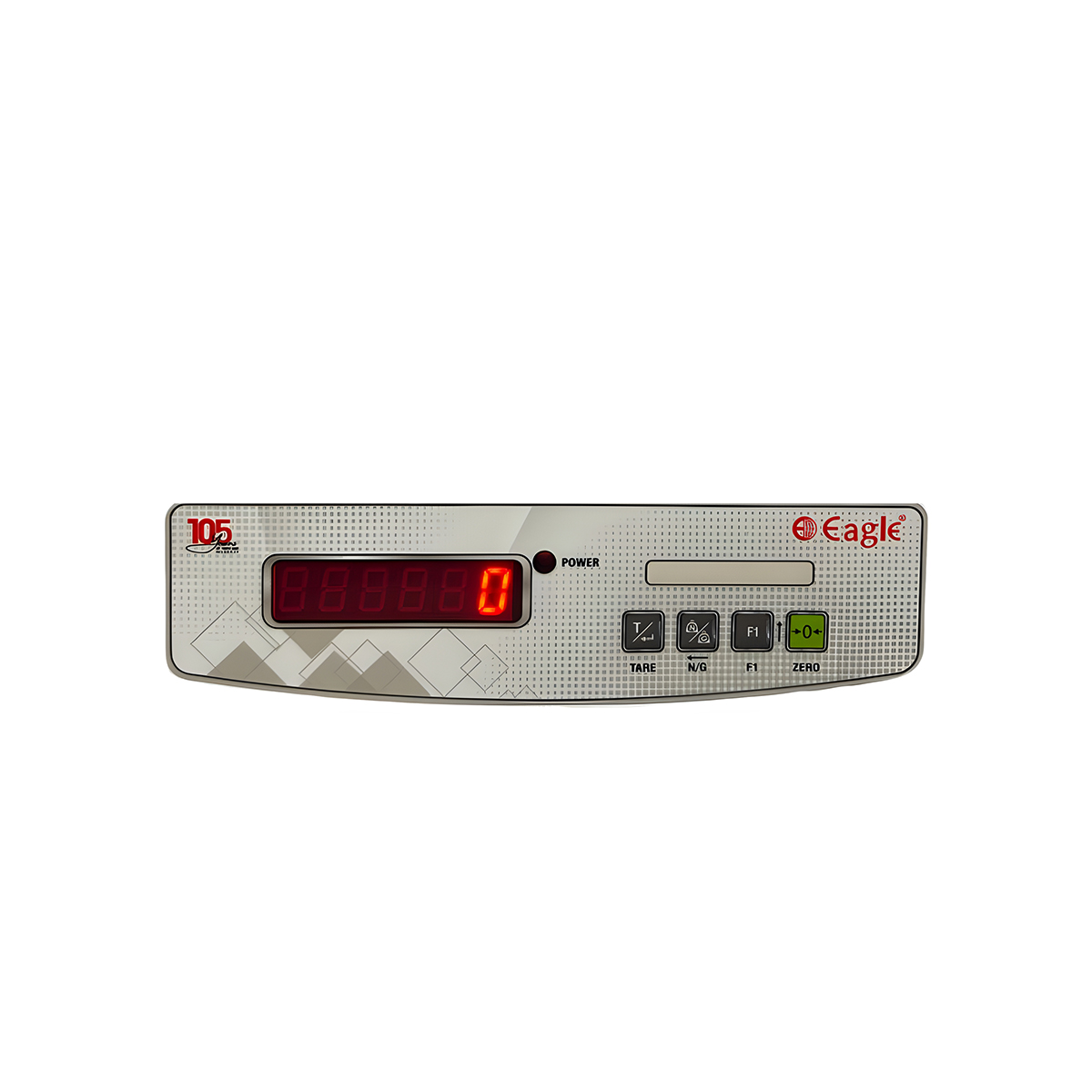

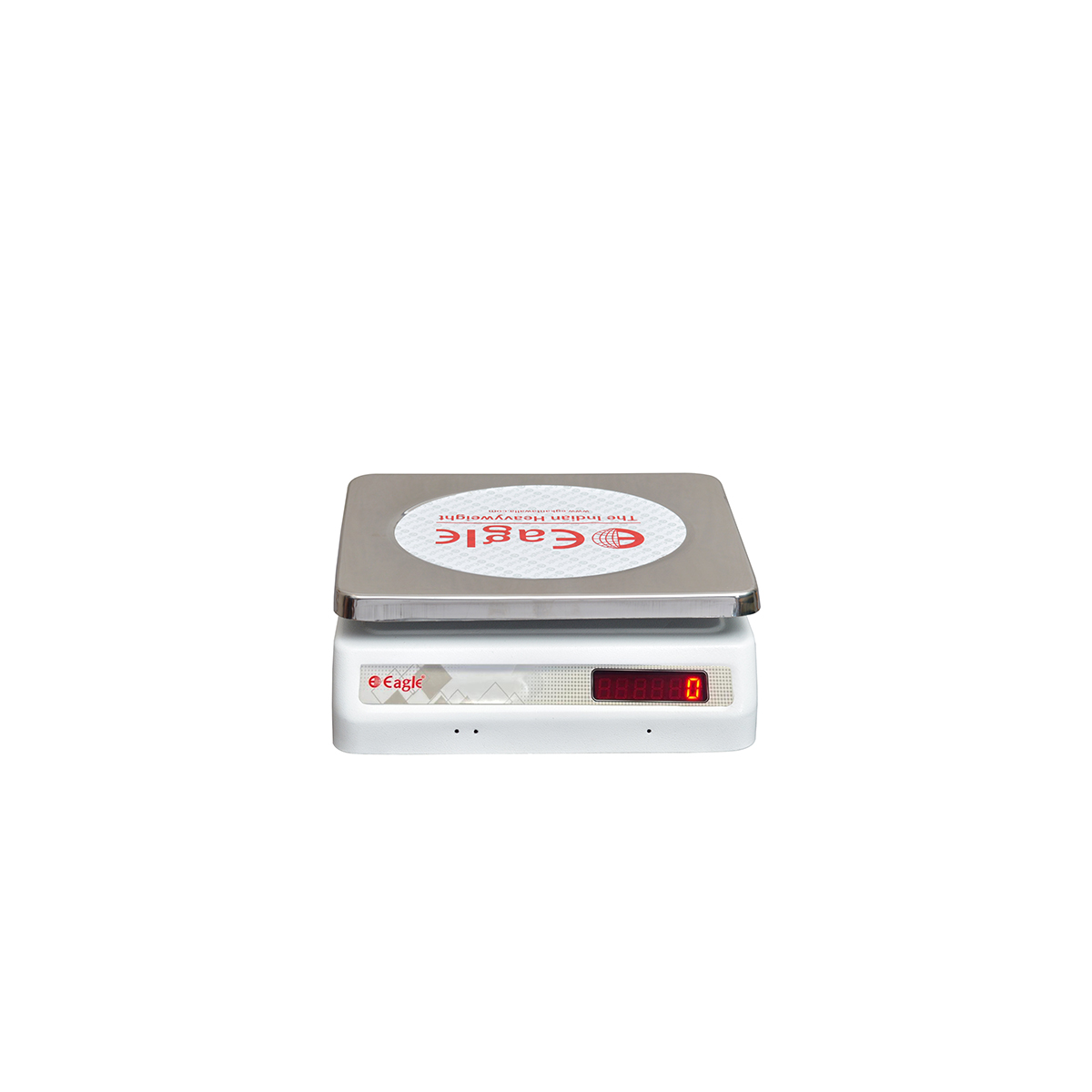

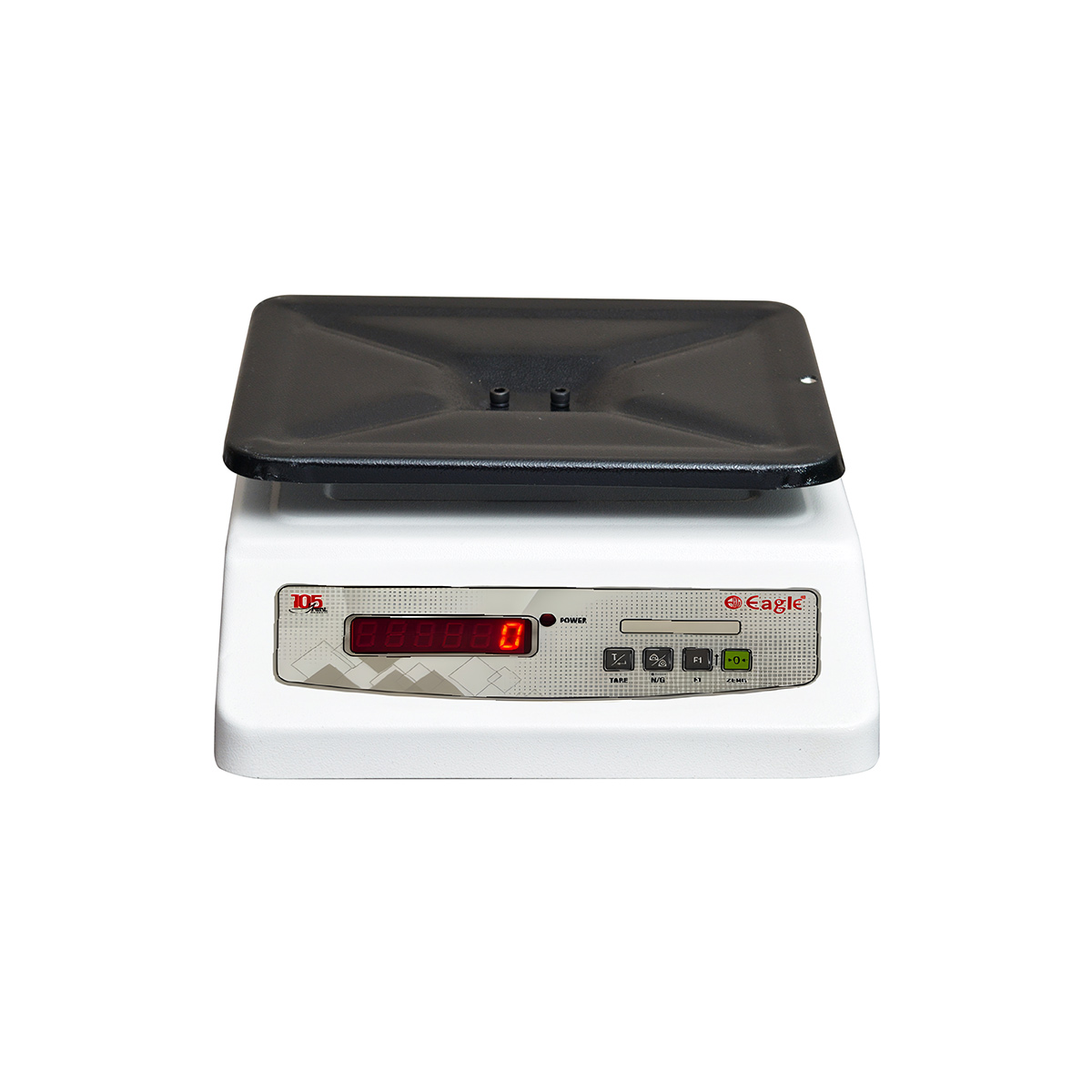

Super Bright Dual Display: ELT has a Super Bright RED LED display of size 20 mm in the front and 20 mm in the rear. Even when the instrument is placed in a dark or low-light environment, the bright LED displays the clear and exact weight.
Dual Power Sources: Operates on both a rechargeable battery and a Direct Power source:

1.) Lead acid Rechargeable Battery (DC 6V, 5Ah) for an estimated backup of 8 to 10 hours of continuous usage (if battery is fully charged)

2.) Power saving function is there in the scale, which reduces the brightness of the LED when the scale is not used for a certain time (user-settable)
High Mobility: Thanks to rechargeable battery operation, compact, lightweight construction, it is suitable for use in several locations (production, warehouse, dispatch department, etc).
Fast Weighing Response: Quick and accurate results to improve efficiency.
Simple & User-Friendly Operation: Easy-to-use interface for hassle-free weighing.
External Calibration: Ensures precision with easy calibration steps.
Zero Tracking: Automatically maintains accurate zero readings.
Anti-Slip Adjustable Leveling Feet: Provides stability on uneven surfaces.
Keypad: Enhances durability and ease of use.
Precision Load Cell Technology: Ensures high accuracy in every measurement.
Large Stainless Steel Pan: SS202 grade pan, and easy to clean.
Overload Protection: Prevents damage from excessive weight.

Original price was: ₹16,196.00.Current price is: ₹4,249.00.

Capacity

7.5/10 kg
10/20 kg
10/20/30 kg
20/30 kg

Clear

7 days Returnable

Free Delivery

12/24 Months Warranty

Secure Transaction

24/7 Support

Description

Eagle’s Rugged & Reliable Tabletop Weighing Scale is designed with a durable metal housing, our Tabletop Weighing Scale ensures long-lasting performance in any environment. Each scale from E.G. Kantawalla features a built-in battery backup, providing seamless portability and convenience. The dual display system allows both users and customers to view the weight simultaneously, ensuring complete transparency and accuracy. This series delivers hassle-free, precise weighing for all your essential measurement needs.

Additional information

Capacity	7.5/10 kg, 10/20 kg, 10/20/30 kg, 20/30 kg

Reviews (0)

Reviews

There are no reviews yet.

Add a review

Be the first to review “Tabletop Weighing Scale – Durable, Accurate & Compact for Industrial & Commercial Use | ELT”

Extra Info

Product Warranty	12 months from the date of purchase
Customer Care Number	+91 7757919577
Customer Care Email	mt2@egkantawalla.com
Service Toll Free Number	1860 123 2453
Service Direct Number	+91 70309 00185

Range

Model No.	Capacity	Division	Platform Size	Body Material	Pan Material	Load Cell
ELT	7.5/10 kg	0.5/1 g	295 x 235 mm	Mild Steel	Stainless Steel 202	1 Pc – Aluminium IP 65
	10/20 kg	1/2 g
	20/30 kg	2/5 g
	10/20/30 kg	1/2/5 g

Technical Specifications

TECHNICAL SPECIFICATIONS

Weight Sensor – Aluminium Loadcell – IP65
Assembly – Mild Steel Assembly
Resolution – 1/30000
Minimum input voltage – <1 mV
Minimum input sensitivity – 0.1 microvolt per interval
Analog input range – 0 mV to 15 mV
Keypad - 4 keys
Display Type – Super Bright Green LED
No. of Display Windows – Dual Display (Front & Rear)
Front Display – RED LED – 20 mm digit height
Rear Display – RED LED – 20 mm digit height
Calibration Method – External Calibration
Net Weight – 5.5 kg approx. (without battery)
Stable Time – <3sec
Power Supply – 110 to 230 V AC 50 Hz
Operating Temperature – +10 degrees to +50 degrees
Battery Capacity – Lead Acid – 6 V, 5 Ah
Battery Backup – Estimated 8-10 hrs on full charge
Mounting Type – Table Mount

Dimensions

Dimensions:

Length	Width	Height	Weight
370 mm	300 mm	130 mm	6 Kgs

FAQs

1) What are the variants available?

ELT model is only available in the LED variant.

2) What is the Pan MOC & Size?

The pan MOC is SS 304, and the pan size is 295 x 235 mm.

3) What is the display type?

ELT model comes with a red color display.

4) What are the capacity ranges available?

Below are the capacity ranges available:

Model No.	Capacity	Division	Platform Size	Body Material	Pan Material	Load Cell
ELT	7.5/10 kg	0.5/1 g	295 x 235 mm	Mild Steel	Stainless Steel 202	1 Pc – Aluminium IP 65
	10/20 kg	1/2 g
	20/30 kg	2/5 g
	10/20/30 kg	1/2/5 g

5) What are the interface ports available?

There are no interface ports available for data transmission.

6) Does it have a rear display?

Yes, this model comes with a front and rear display for customer viewing.

7) What is the digit height of both displays?

Front display: 20 mm
Rear display: 20 mm

8) Can these table tops operate with a battery?

Yes, this table top can be operated using a 6V, 5Ah lead-acid rechargeable battery.

9) What is the charging and discharging time of the battery?

Charging time: 4 hours
Discharging time: 8–10 hours (estimated after full charge)

10) Can IQ, OQ, PQ, DQ documents be provided with a table top?

Yes, IQ, OQ, PQ, and DQ documents can be provided on demand. If required, please mention it in the sales order.

11) Where can this product be recommended?

Automobile industries, food processing industries, manufacturing industries, retail shops, sweet shops, etc.

12) What functions does this scale have?

Simple weighing and piece counting.

13) What is the MOC of the table top?

This product is made of mild steel material.

14) Can we recommend this scale for washable applications?

No.

15) Whether unit conversion is available?

No, unit conversion option is not available.

16) Does it have printing facility?

No.

17) Does it support external calibration?

Yes, the scale supports external calibration.

18) What power-saving features does this scale have?

It includes an auto-sleep function, which conserves battery life when not in use.

19) What material is the weighing pan made of?

The scale comes with a large stainless steel SS202 grade pan, which is durable and easy to clean.

20) Does the scale have overload protection?

Yes, it has overload protection to prevent damage from excessive weight.

21) Can the scale be used in different locations?

Yes, with its anti-slip adjustable levelling feet, the scale remains stable on uneven surfaces, making it suitable for various environments.

22) What kind of weighing applications is this scale suitable for?

The ELT model is ideal for retail, grocery stores, industrial use, kitchens, and warehouses where precise and reliable weighing is required.

23) How can I get service or support for this scale?

For any service-related queries, you can contact our customer support center. Our team will assist you over a call or provide installation/service videos if required.

Service Toll-Free Number: 1860 123 2453
Service Direct Number: +91 70309 00185
