Description

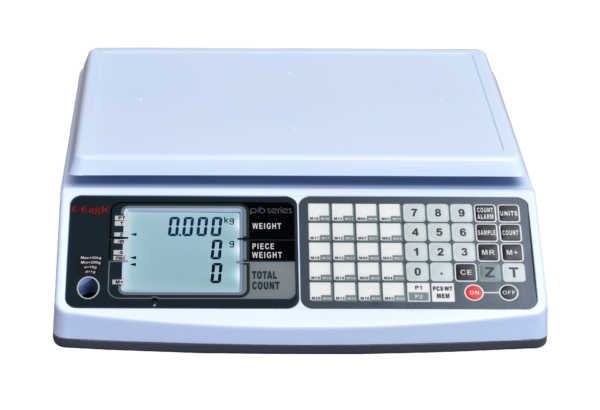

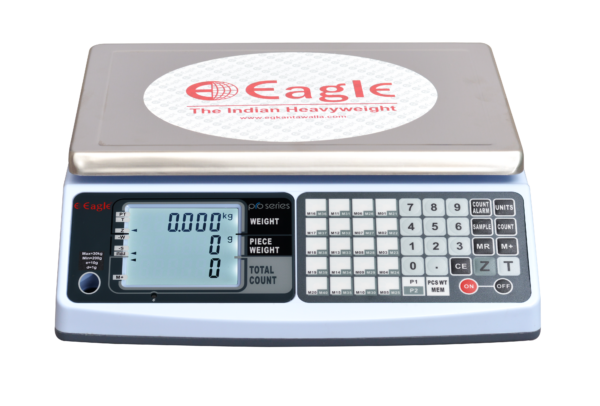

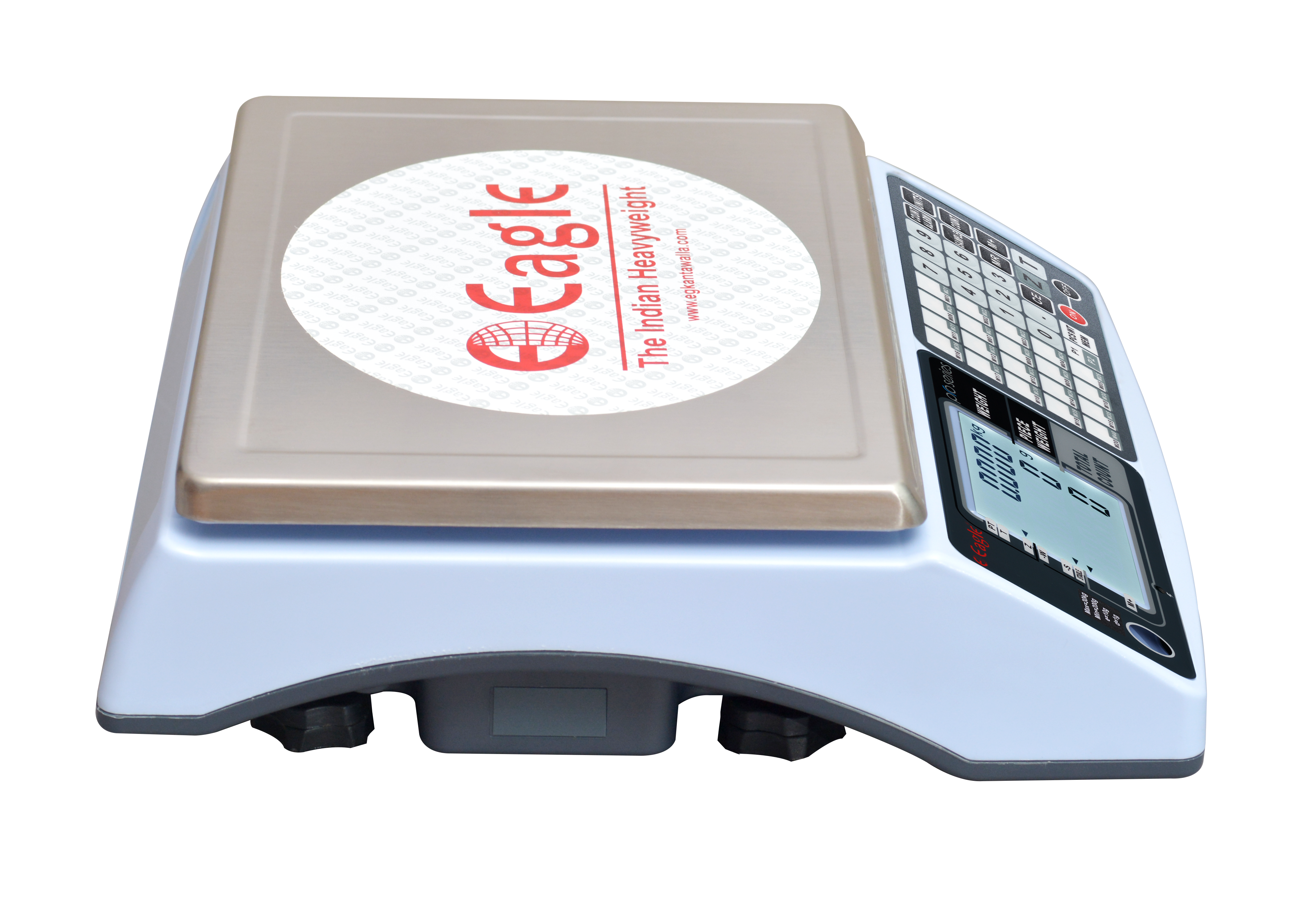

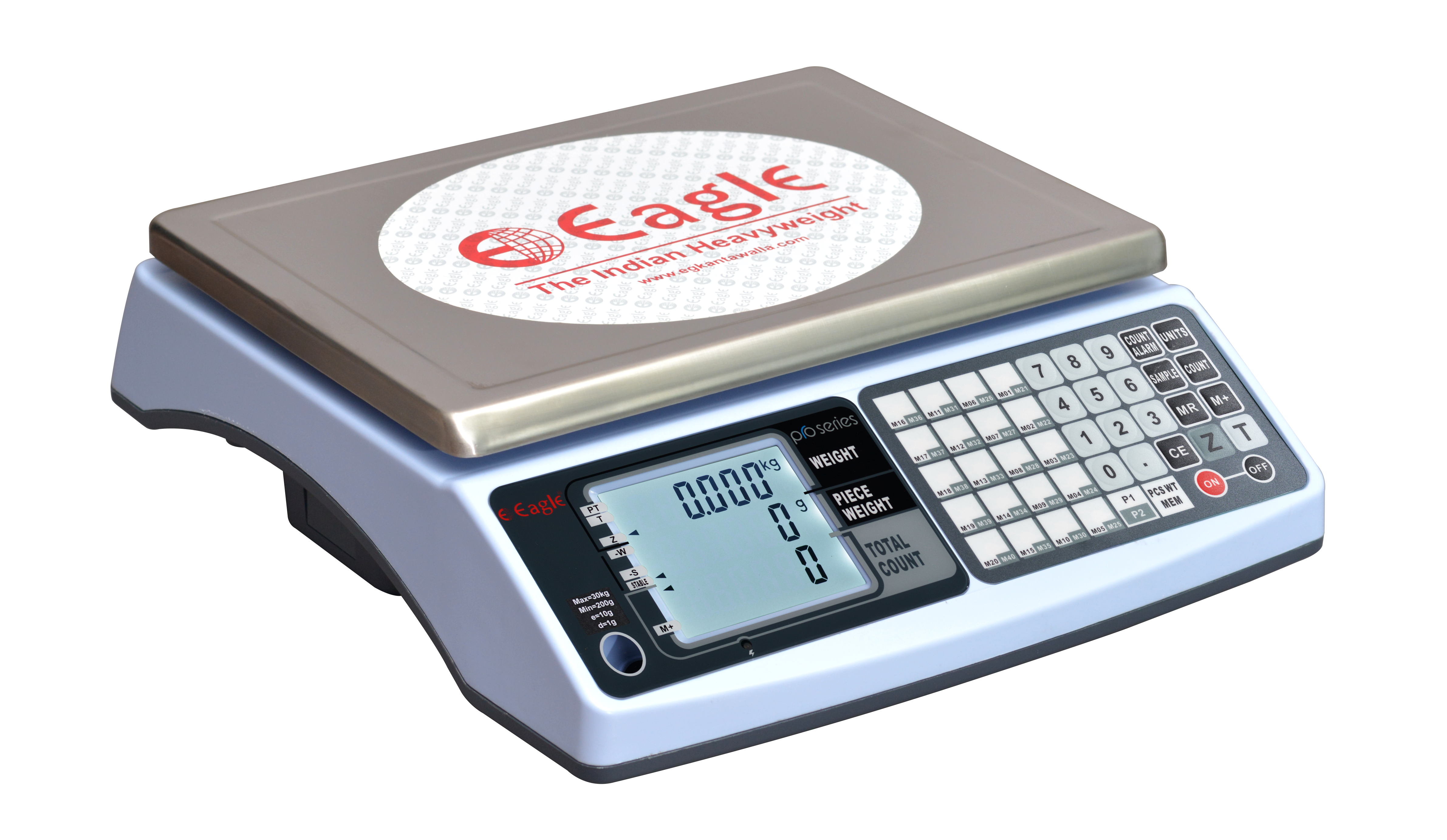

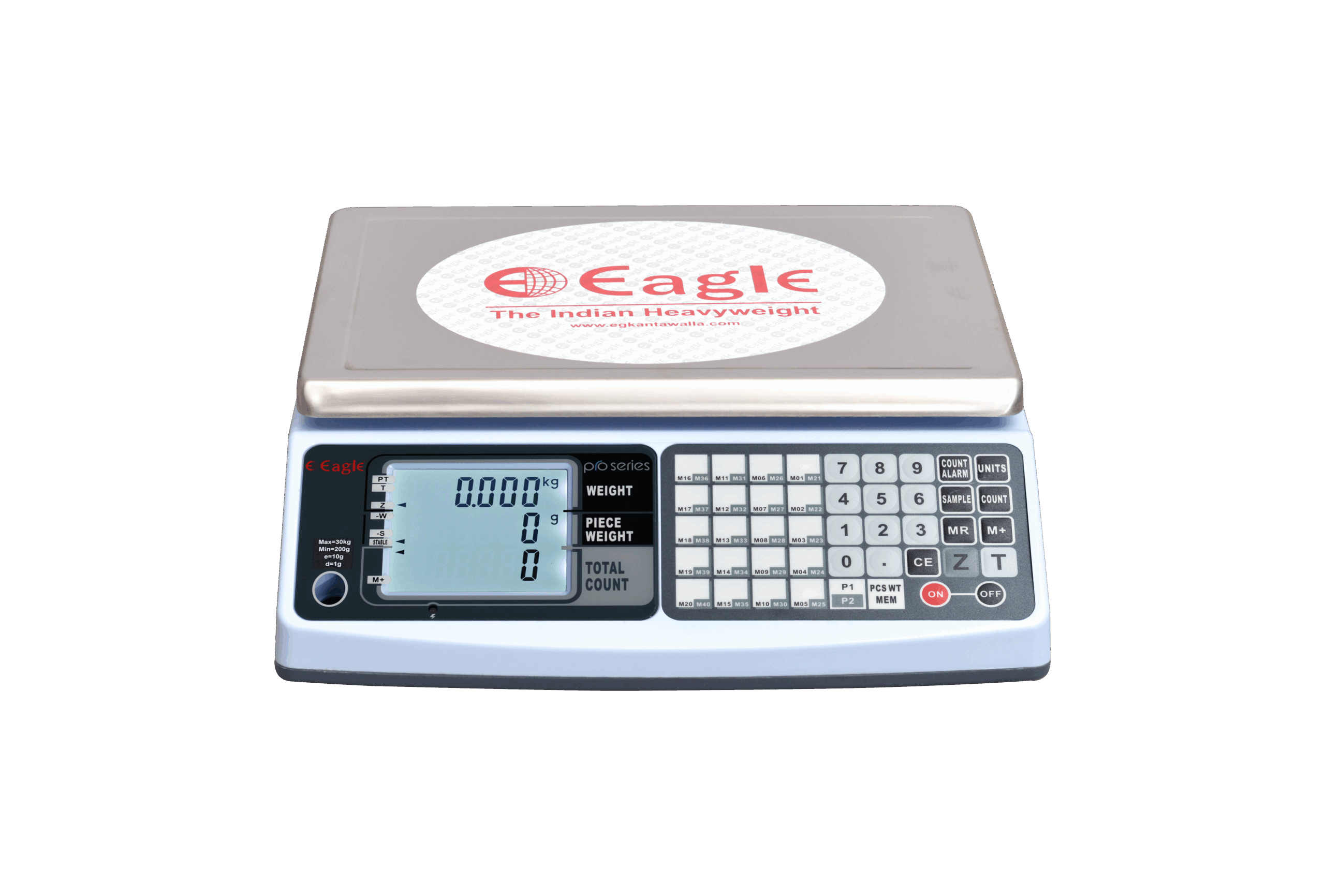

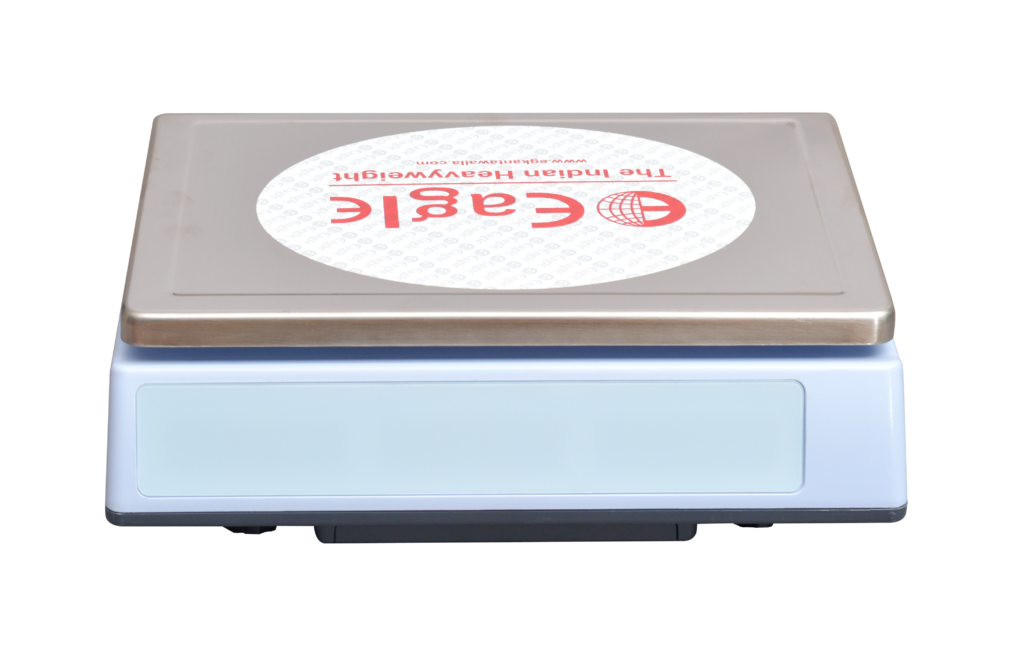

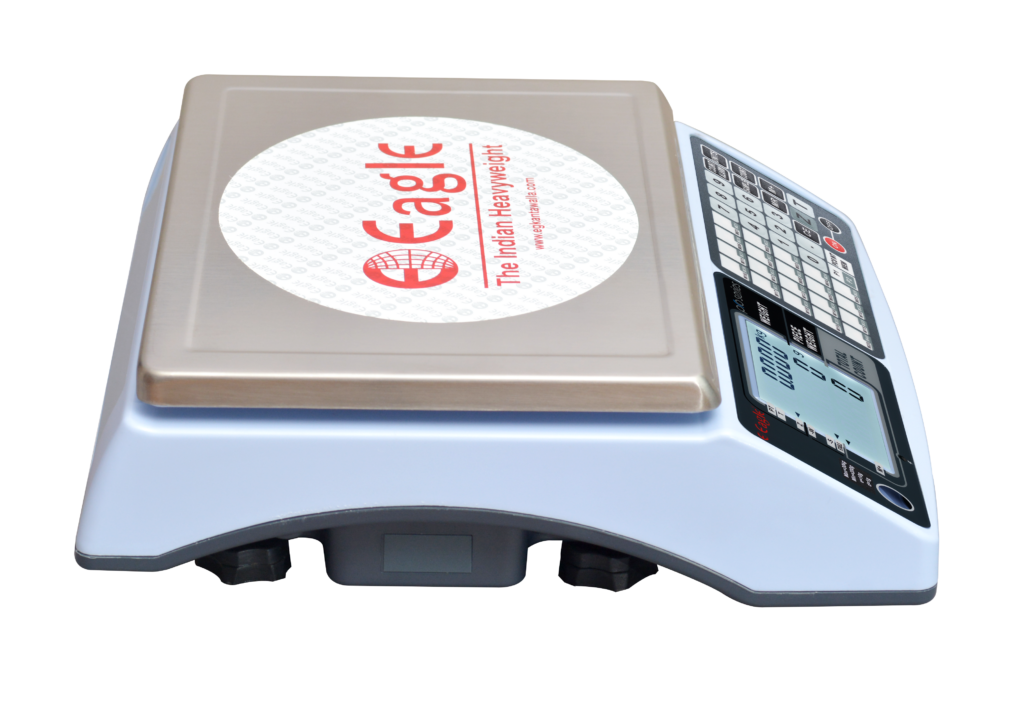

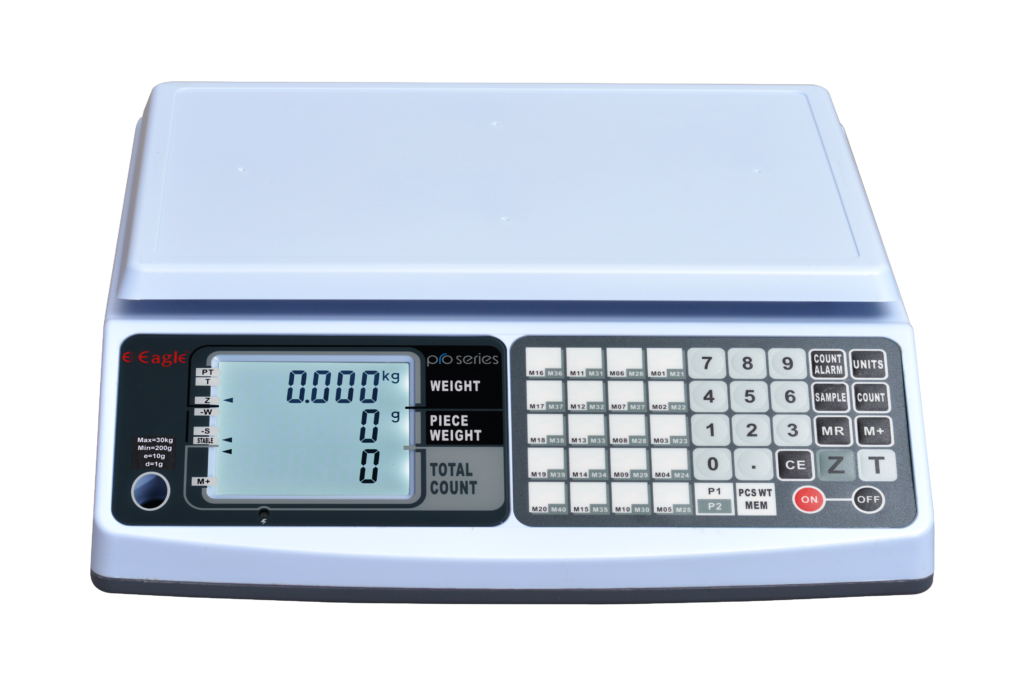

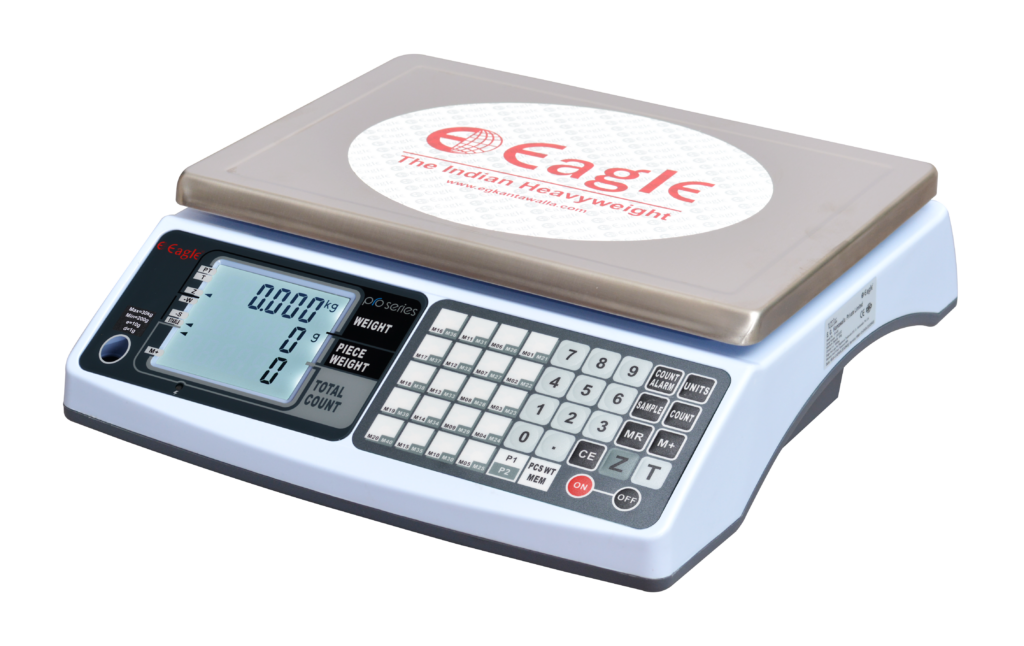

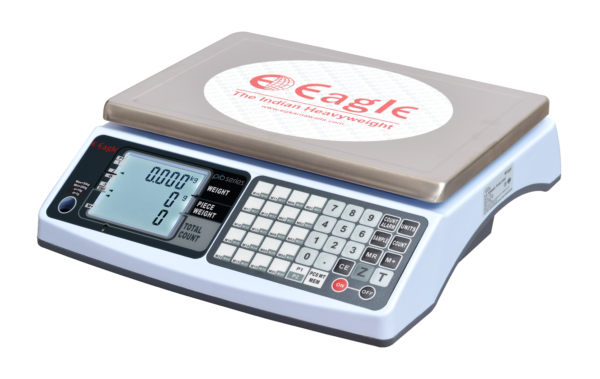

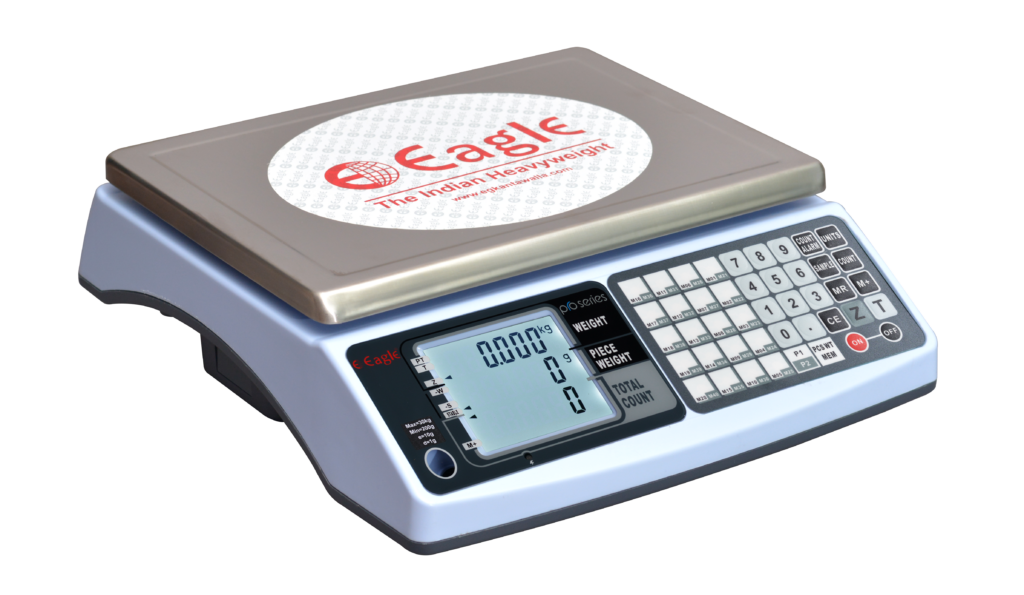

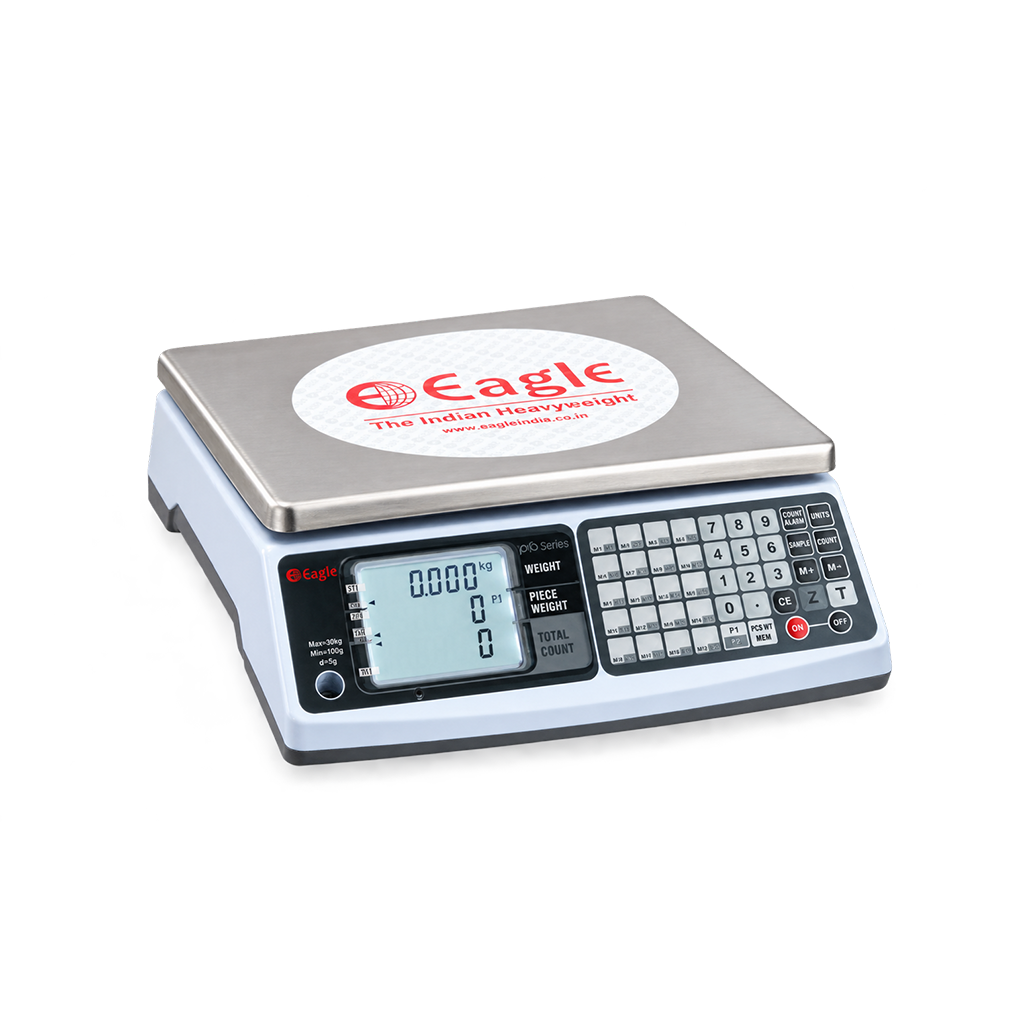

Eagle’s CK 430 Counting Scale is a high-precision tabletop model designed for fast, accurate, and efficient counting of even the lightest parts. With an accuracy of over 99%, it eliminates operator errors commonly found in manual hand counting, ensuring seamless inventory management and precise piece counting.
Key Features : High Precision Counting, Industrial-Grade Durability, Quick & Efficient Performance, 20 Direct Memory Storage, Auto Power Off, Optional Rechargeable Battery. etc
Perfect for warehouses, retail stores, manufacturing units, and inventory management, the CK 430 is your ideal counting companion for precise, efficient, and hassle-free operations. Precision Counting Made Easy.
Range
Model No. |
Capacity |
Division |
Platform Size |
Body Material |
Pan Material |
Load Cell |
Display |
CK 430 |
3 kg |
100 mg |
315 x 220 mm |
ABS Plastic |
Stainless Steel 304 |
1 Pc – Aluminum IP 65 |
Front Display – LCD + Backlight |
6 kg |
200 mg |
||||||
15 kg |
500 mg |
||||||
30 kg |
1 g |
Technical specification
- Assembly – Industrial grade ABS Material Assembly
- Weight Sensor – Aluminium Loadcell – IP65

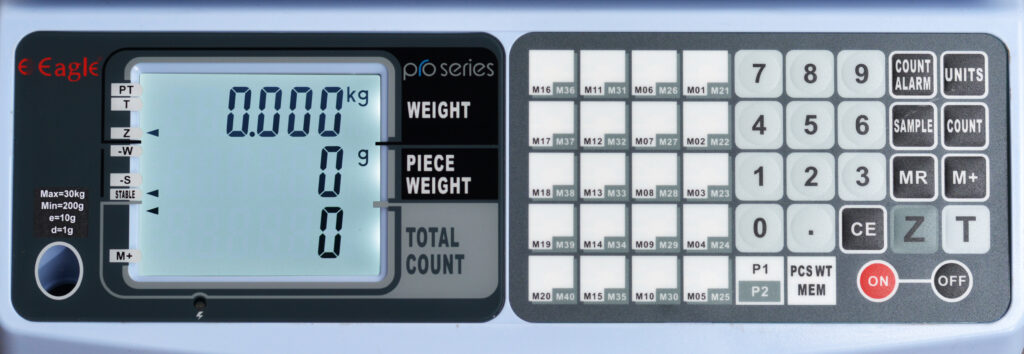

- Keypad – 44 tactile keys
- No. of Display – Single window display with 3 segments
Segment 1 : Total weight, Segment 2 : Unit weight, Segment 3 : Counts - Display Type – LCD display
- Digit Height – 15 mm digit height in each segment
- Calibration Method – External Calibration
- Net Weight – 3.0 kg approx (without battery)
- Operating Humidity – 95% RH Max (Non – Condensing)
- Over-load – 100 % Of Scale Capacity +9e
- Safe-load – 150 % Of Scale Capacity
- Stabalisation Time – < 4s
- Internal Resolution – 20 Bit ADC (10,48,756 Counts)
- Power Supply – 110 to 230 V, AC 50 Hz
- Operating Temperature – +10 deg to +50 deg
- Battery Capacity – Lead Acid – 6 V, 5 Ah
- Battery Backup – Estimated 8-10 hrs on full charge
- Mounting Type – Table Mount
