Description

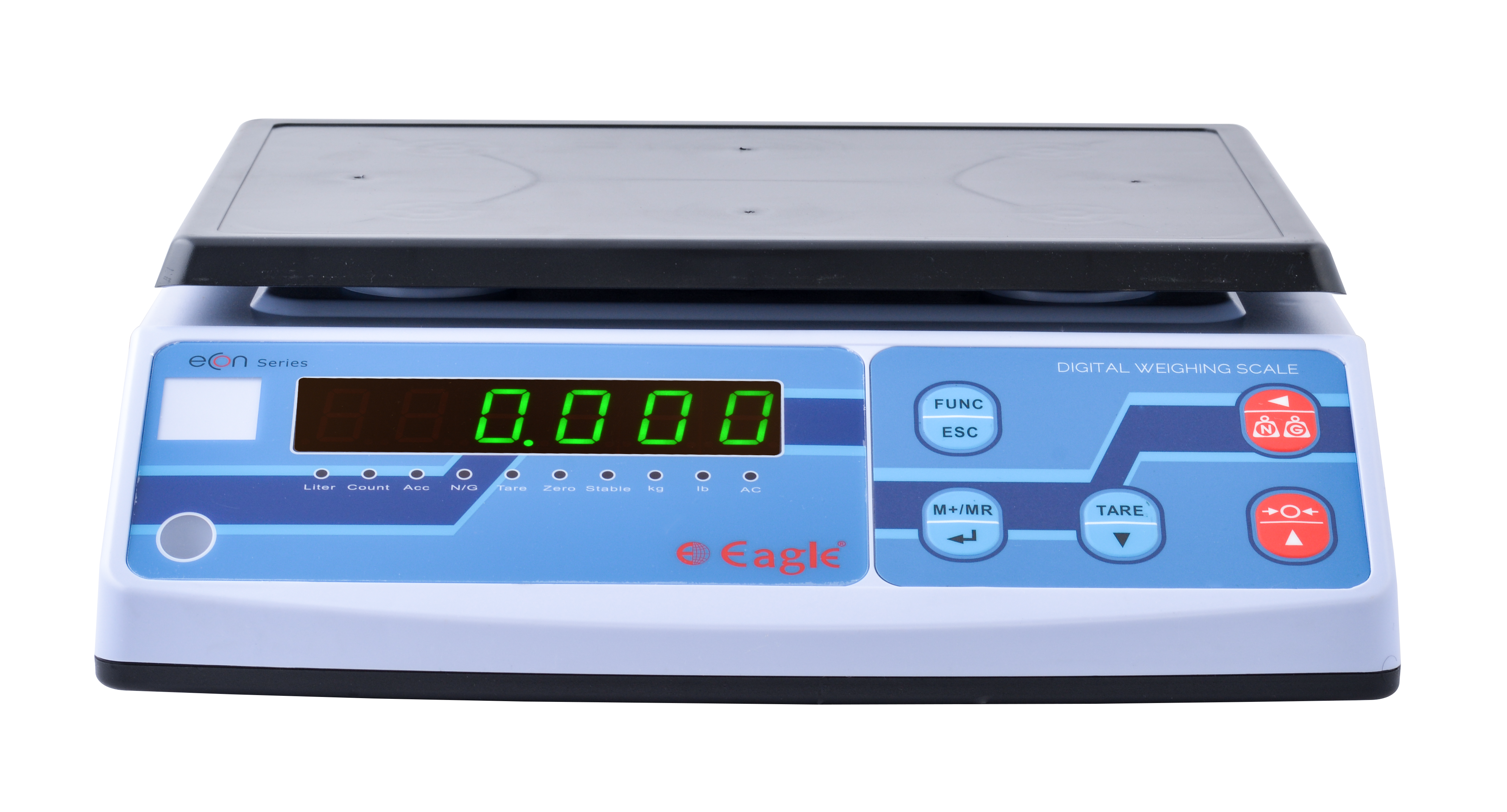

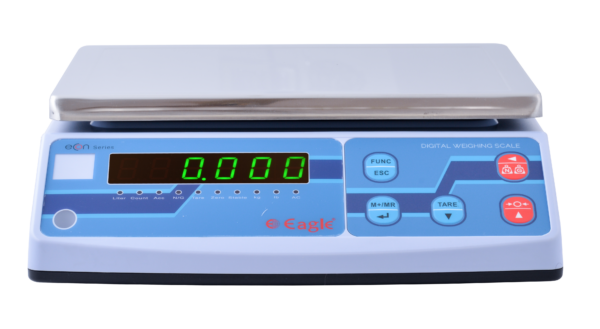

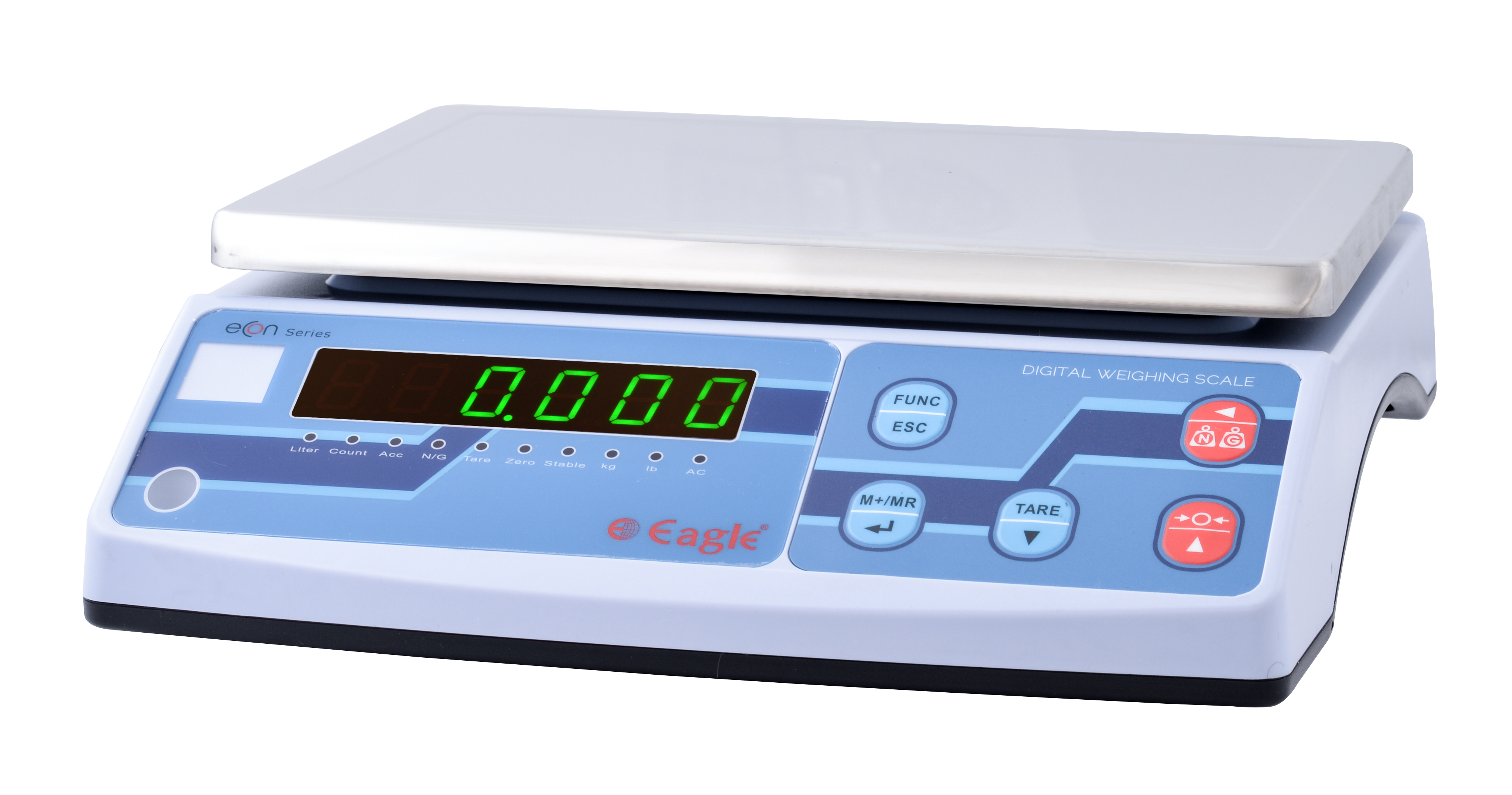

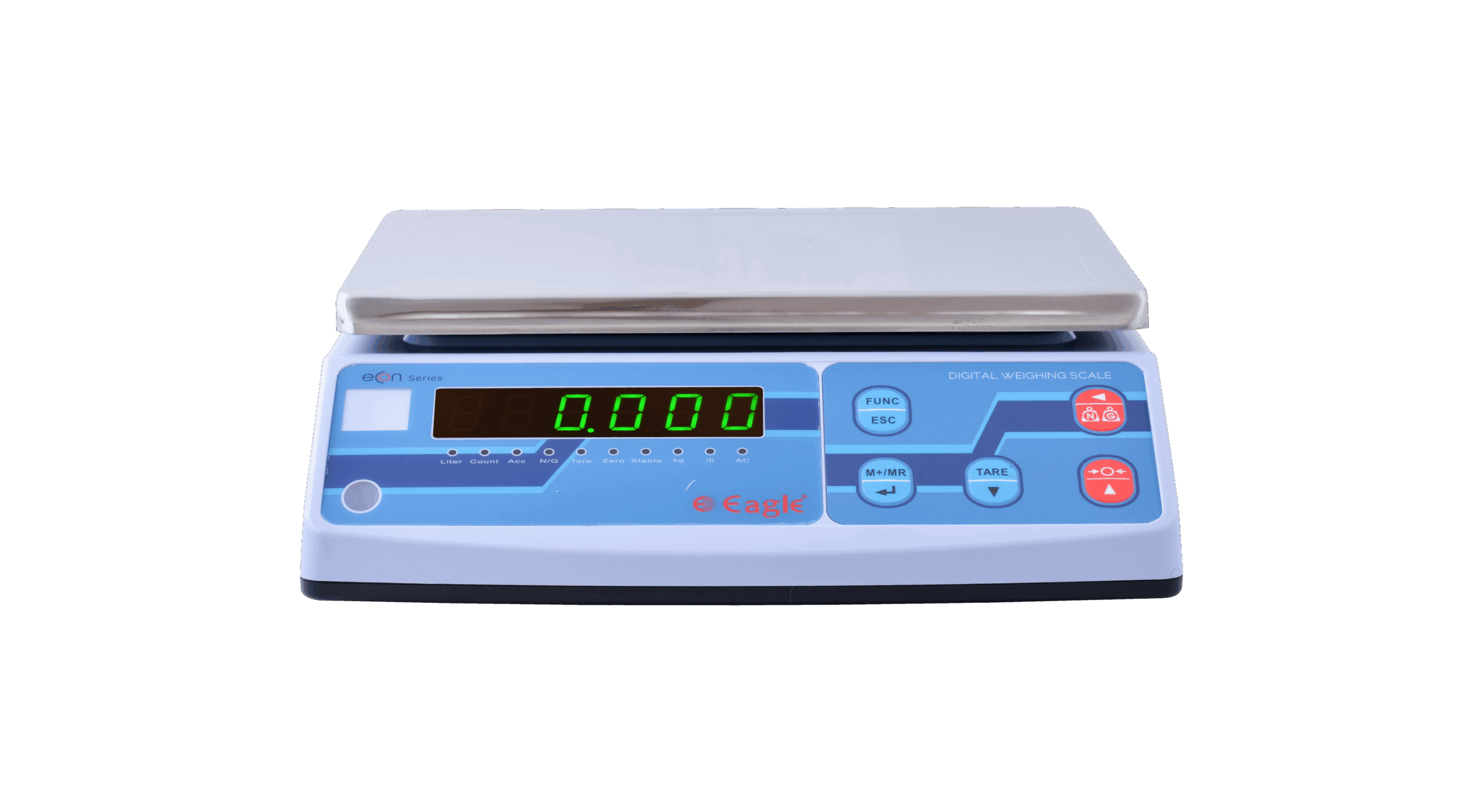

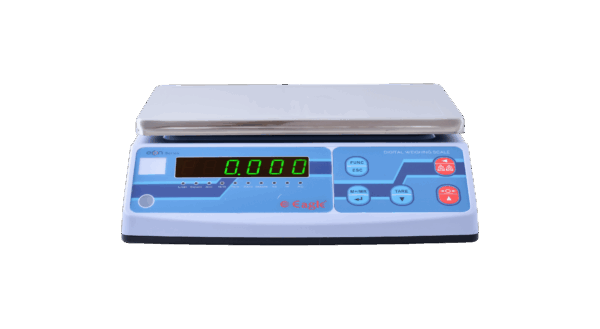

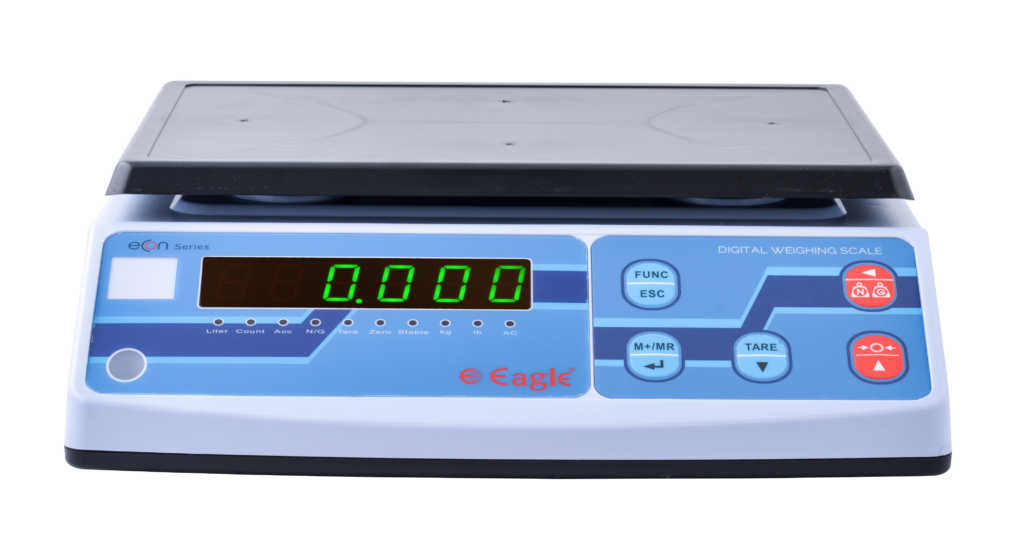

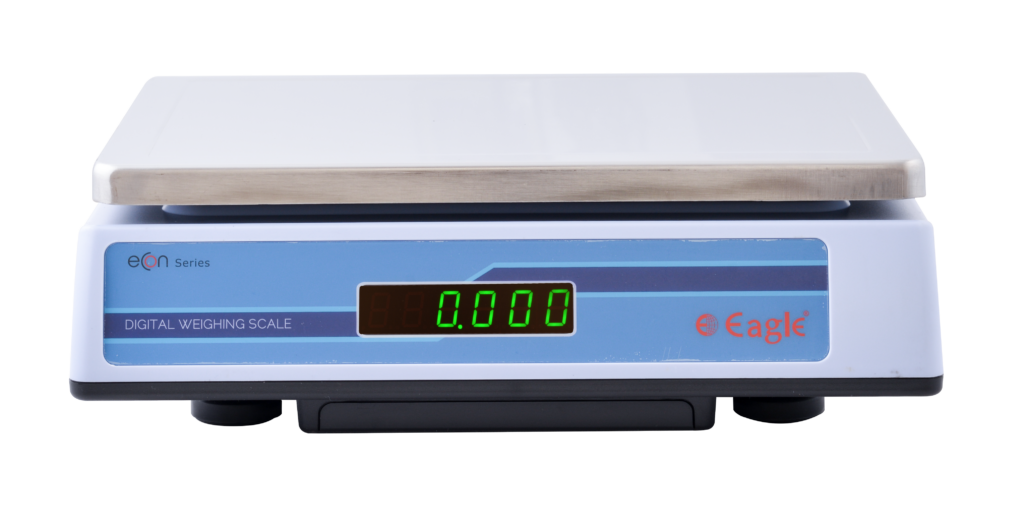

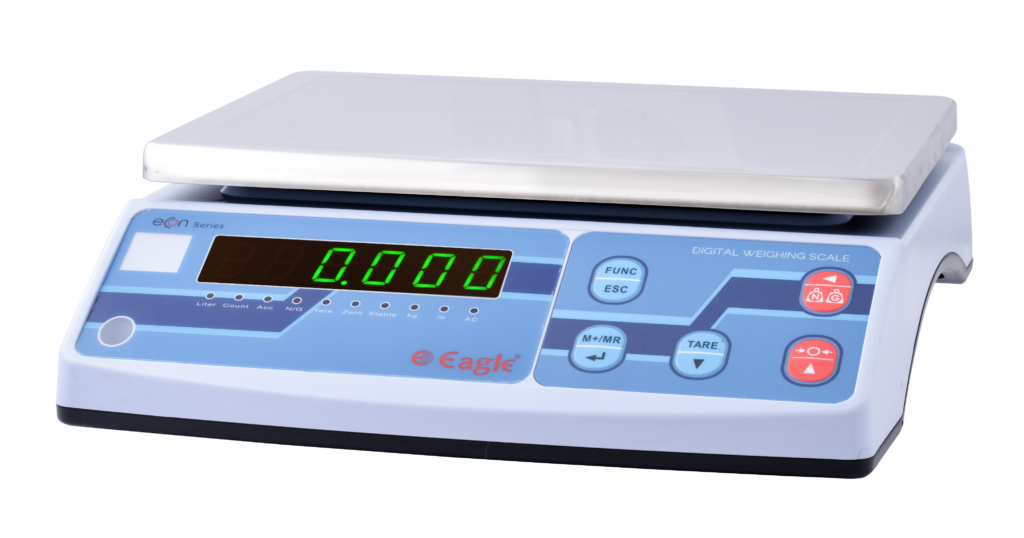

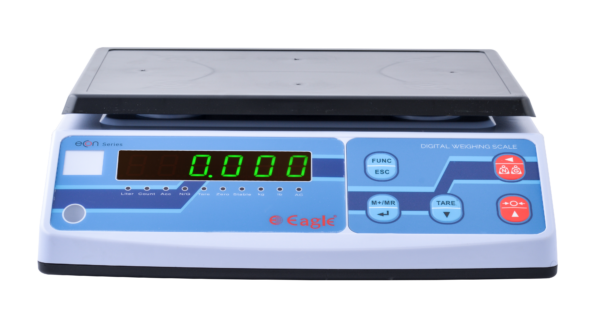

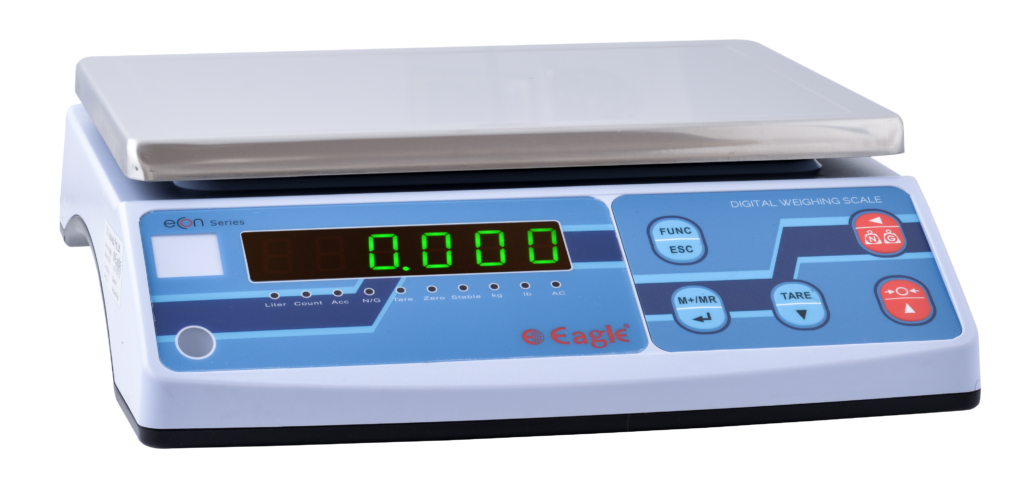

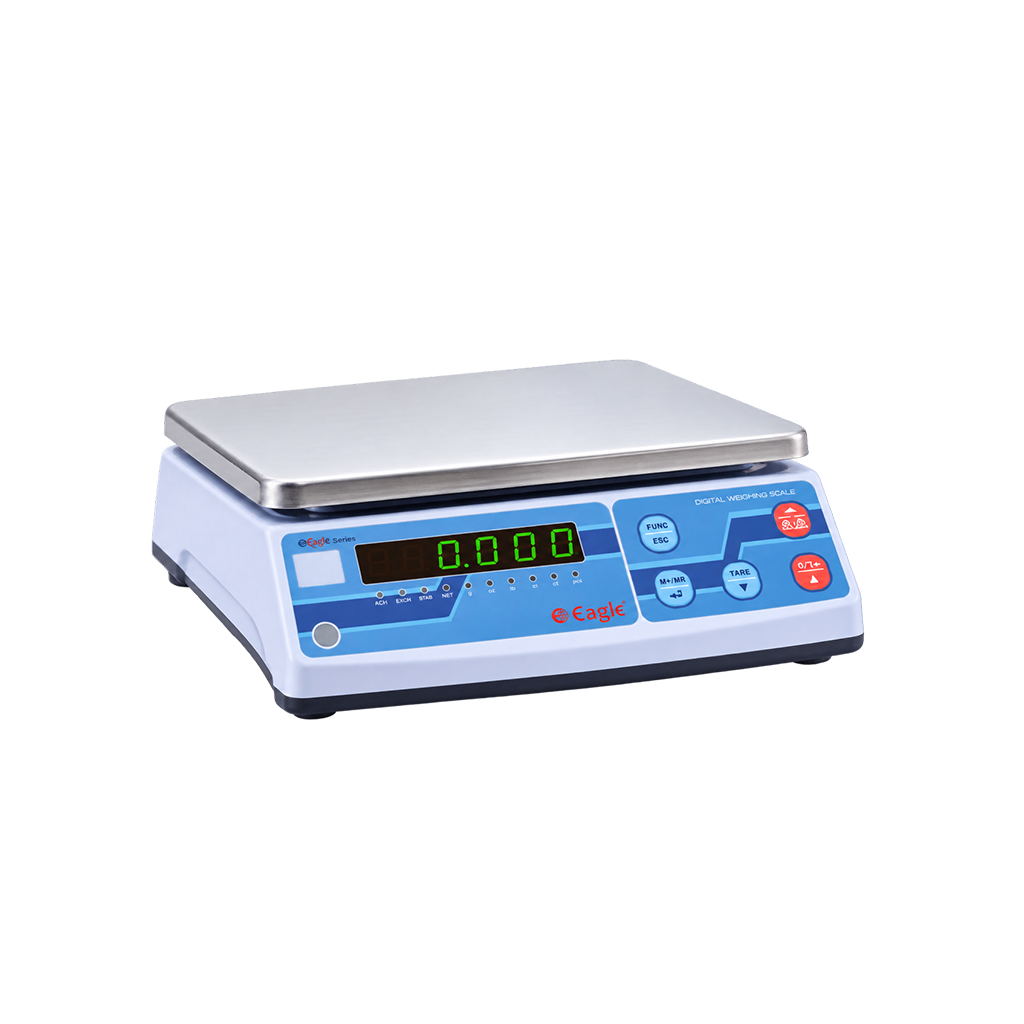

Eagle’s ECON-ETFR Series is a reliable and efficient tabletop weighing scale, designed for general weighing applications. Featuring a 20mm Super Bright Green LED display, it ensures clear and easy readability under any lighting conditions.
Built to perform seamlessly across all regions of India, the ECON-ETFR Series operates efficiently even in areas with extremely low voltage, making it a perfect choice for diverse environments. Its dual display system allows both the user and the customer to view the weight simultaneously, ensuring transparency and eliminating doubts about accuracy.
With a focus on uncomplicated performance, this series is engineered to provide precise, user-friendly, and hassle-free weighing for retail, industrial, and commercial applications.
Range
Model Name |
Capacity |
Division |
Platform Size |
Body Material |
Pan Material |
Load Cell |
Display |
ECON ETFR |
5/7.5 kg |
0.5/1 g |
315 x 220 mm |
ABS Plastic |
Stainless Steel – SS202 |
1 Pc – Aluminium IP 65 |
Front Display – Green LED 20 mm |
15 kg |
2 g |
||||||
10/20 kg |
1/2 g |
||||||
10/20/30 kg |
1/2/5 g |
||||||
20 kg |
2 g |
||||||
20/30 kg |
2/5 g |
||||||
30 kg |
1 g |
Technical specification
- Assembly – Industrial grade ABS Material Assembly

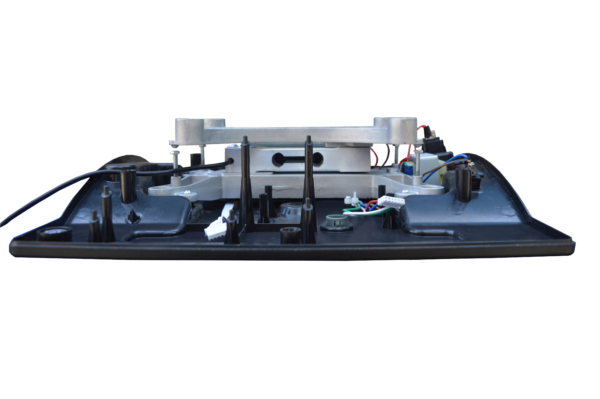

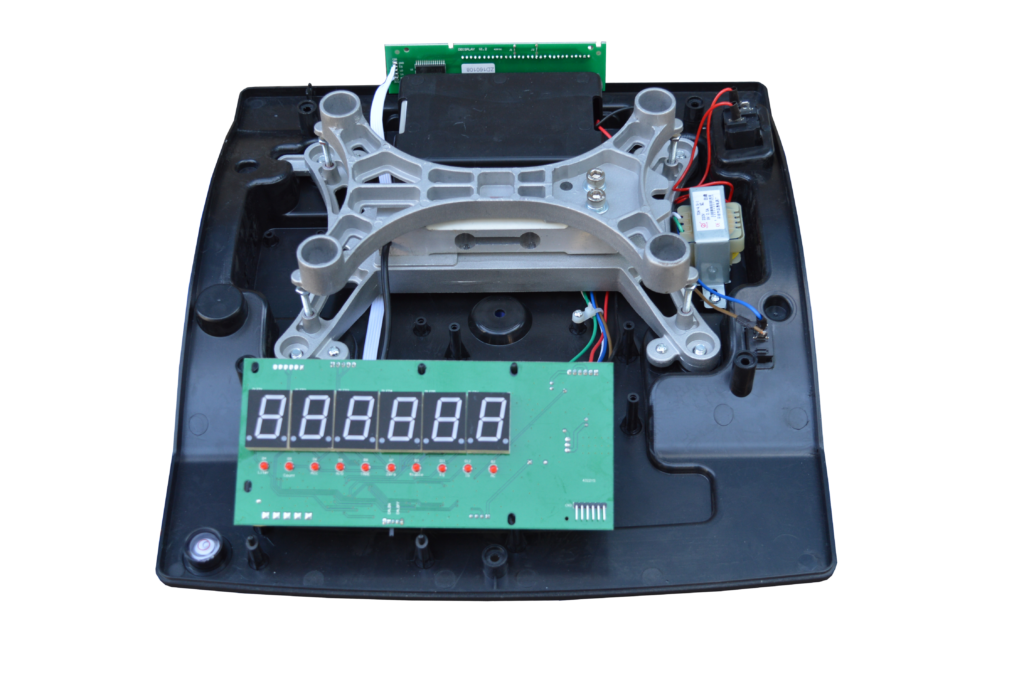

- Weight Sensor – Aluminium Loadcell – IP65
- Resolution – 1/30000
- Minimum input voltage – <1 mV
- Minimum input sensitivity – 0.1 microvolt per interval
- Analog input range – 0 mV to 15 mV

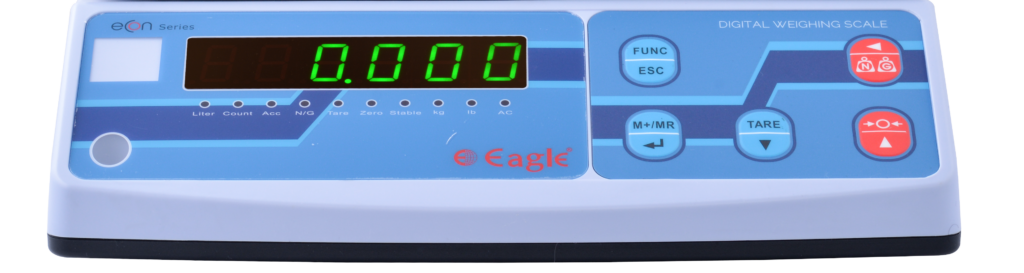

- Keypad – 5 keys
- Display Type – Super Bright Green LED
- No. of Display Windows – Dual Display (Front & Rear)
- Front Display – Green LED – 20 mm digit height

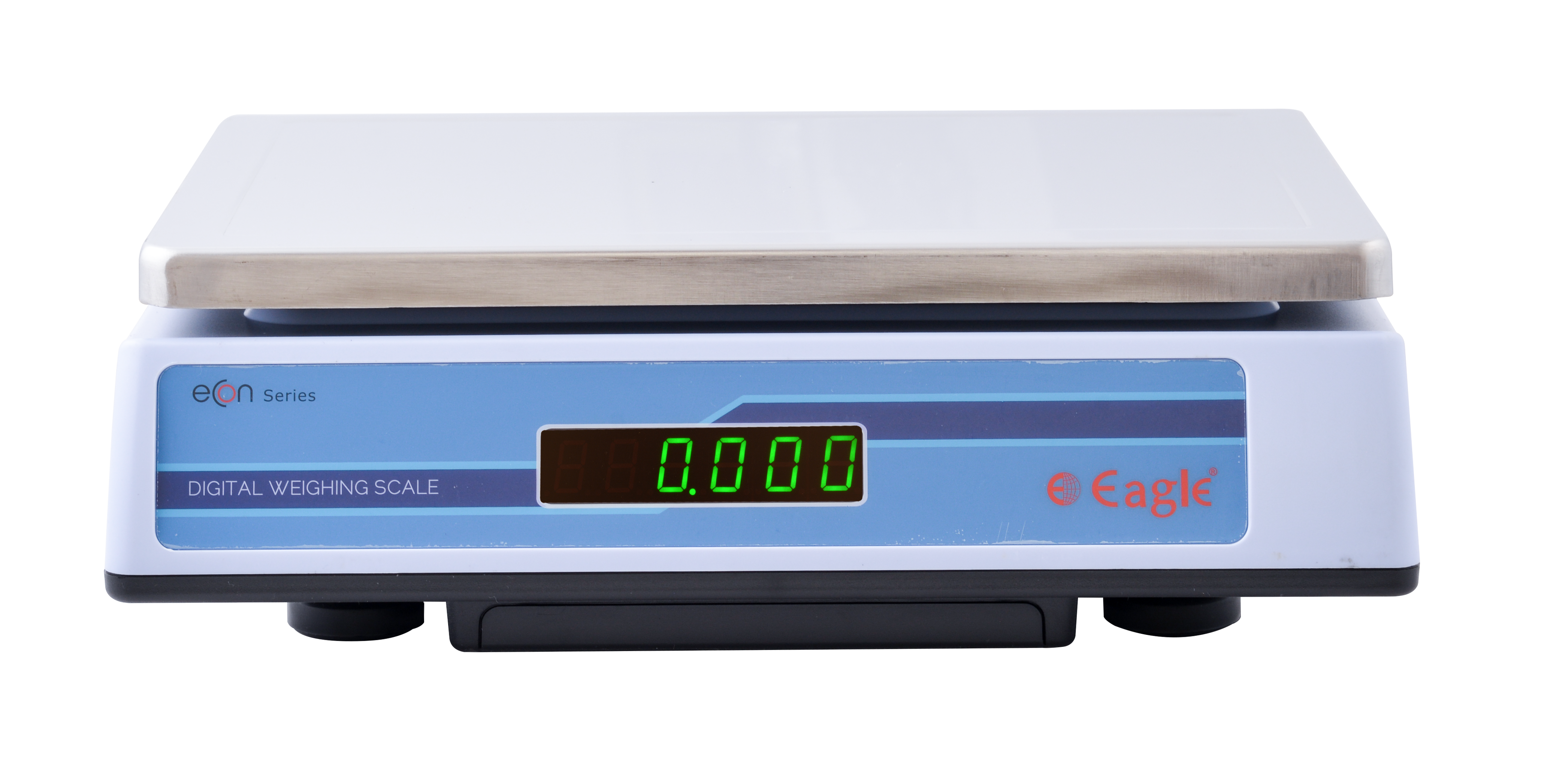

- Rear Display – Green LED – 14 mm digit height
- Calibration Method – External Calibration
- Net Weight – 3.1 kg approx (without battery)
- Stable Time – <3sec
- Power Supply – 110 to 230 V AC 50 Hz
- Operating Temperature – +10 deg to +50 deg
- Battery Capacity – Lead Acid – 6 V, 5 Ah
- Battery Backup – Estimated 8-10 hrs on full charge
- Mounting Type – Table Mount
Dimensions:
