Description

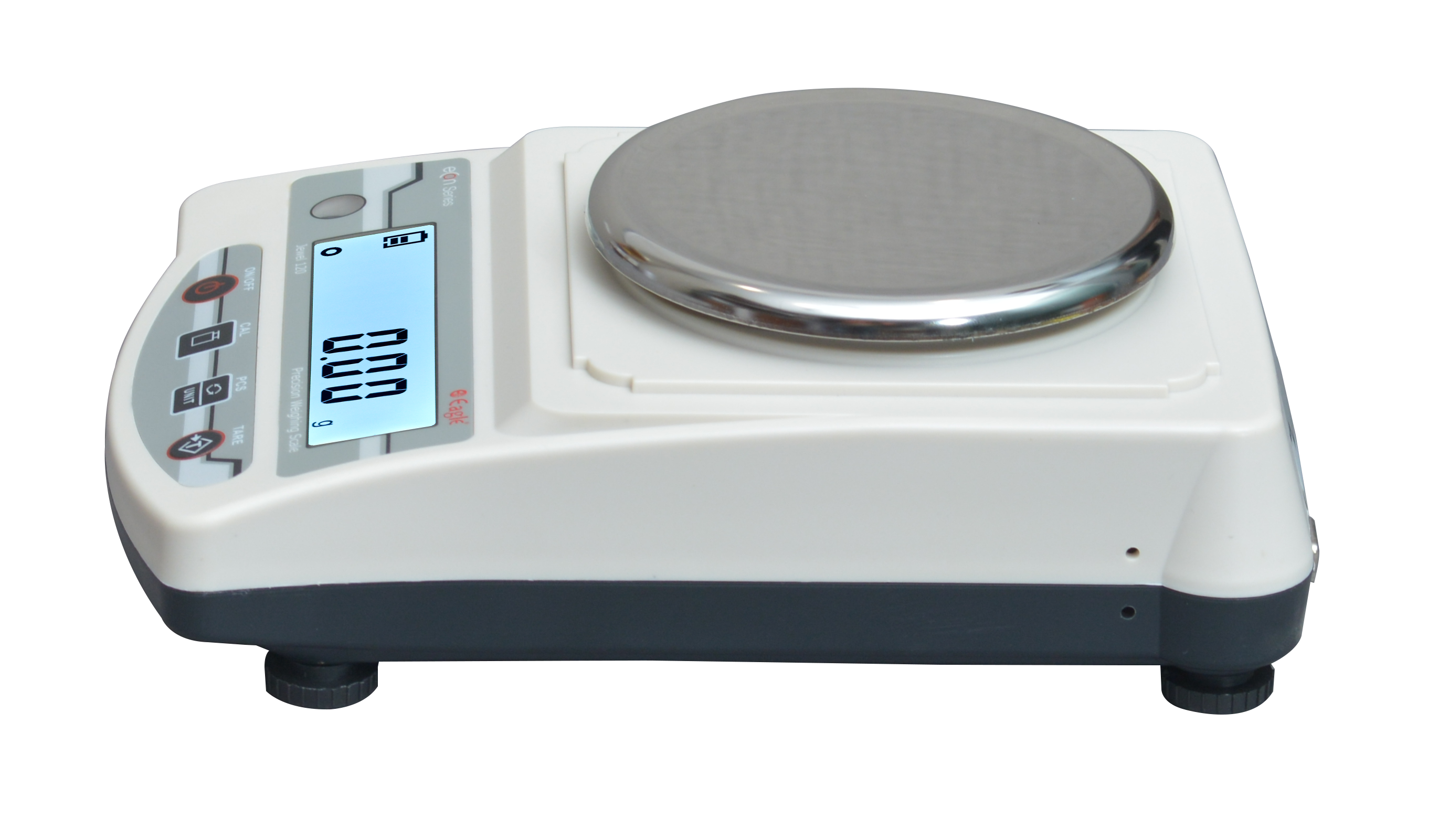

The ECON Jewel Series is a high-precision weighing scale designed for ultimate accuracy and reliability. Built with a durable high-quality housing, it safeguards against shock and overload, ensuring long-lasting performance while protecting the load cell.
Featuring an easy-to-view high-contrast LCD display with moon backlight, this scale provides clear visibility even in low-light conditions. Its advanced draft shield eliminates wind disturbances, making it perfect for outdoor use or drafty environments.
With multiple weighing units to choose from, the ECON Jewel Series Balance ensures accurate, repeatable, and trustworthy results helping you enhance efficiency and maintain precision in every measurement.
Range
|
Model No. |
Capacity |
Division |
Platform Size |
Body Material |
Pan Material |
Load Cell |
Display |
|
Jewel 110 |
620 g |
10 mg |
130 mm (Diameter) |
ABS Plastic |
Stainless Steel 304 |
1 Pc – Aluminum |
Front & Back LCD Display + Backlight |
|
1200 g |
10 mg |
||||||
|
Jewel 120 |
620 g |
10 mg |
ABS Plastic |
Stainless Steel 304 |
1 Pc – Aluminum |
Front & Remote LCD Display + Backlight |
|
|
1200 g |
10 mg |
Technical specification

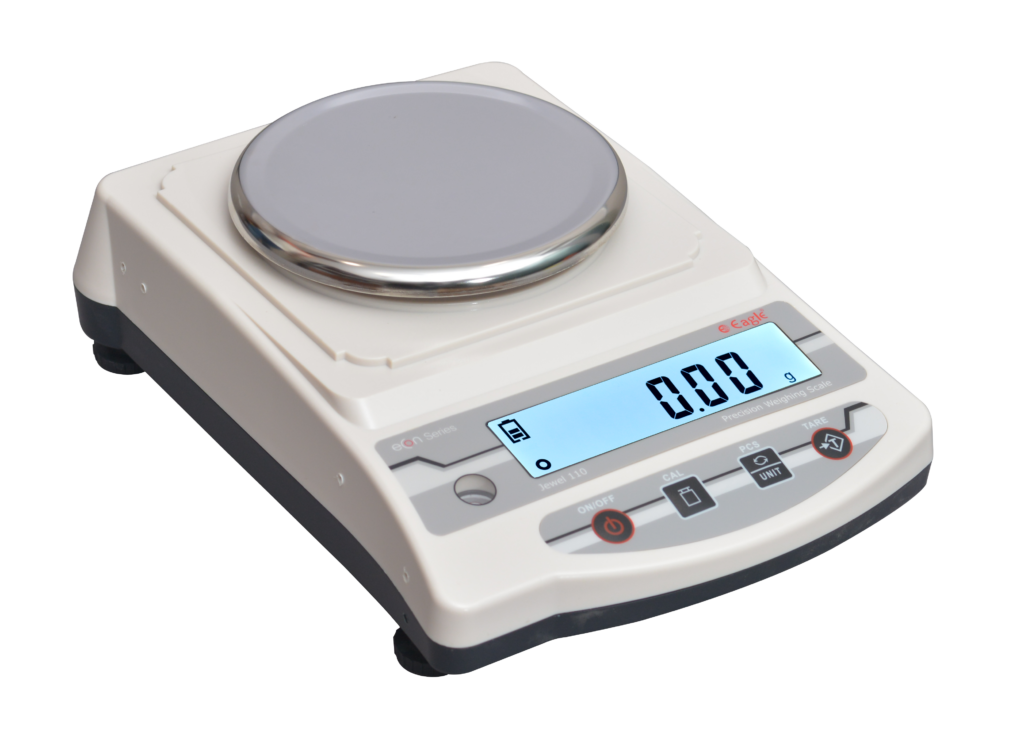

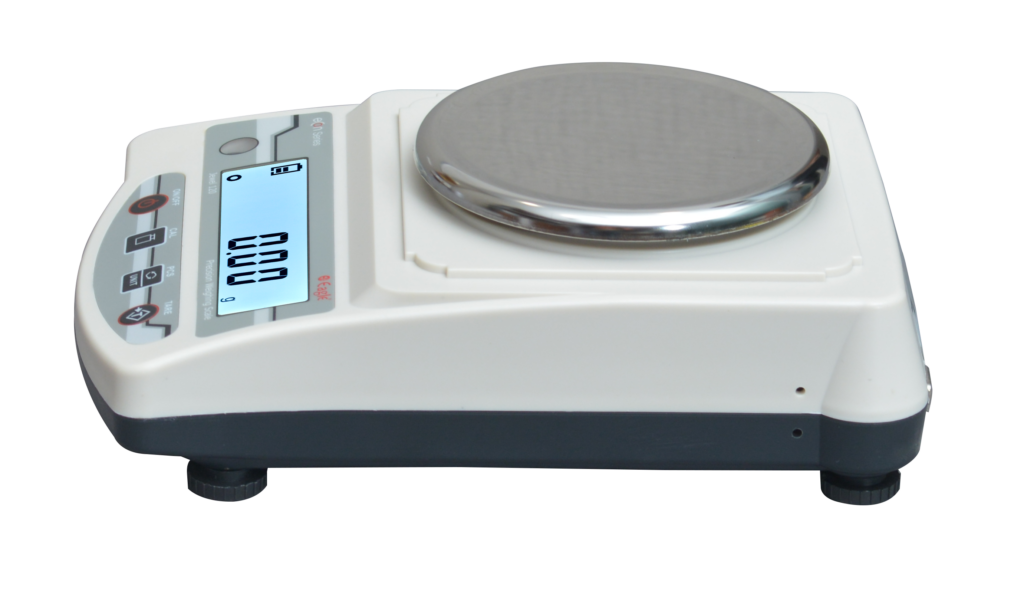

- Precise And Easy To Use Design : Both Jewel 110/120 models having Industrial grade ABS material construction, with SS304 grade stainless Steel Pan having a size of 130 mm dia.
- Super Bright LCD Display : Both models model have a front LCD display of size 110 (W) x 28 (H) mm with 18 mm of digit height. Even when the instrument is placed in a dark or low light environment, the bright LCD displays the clear and exact weight.

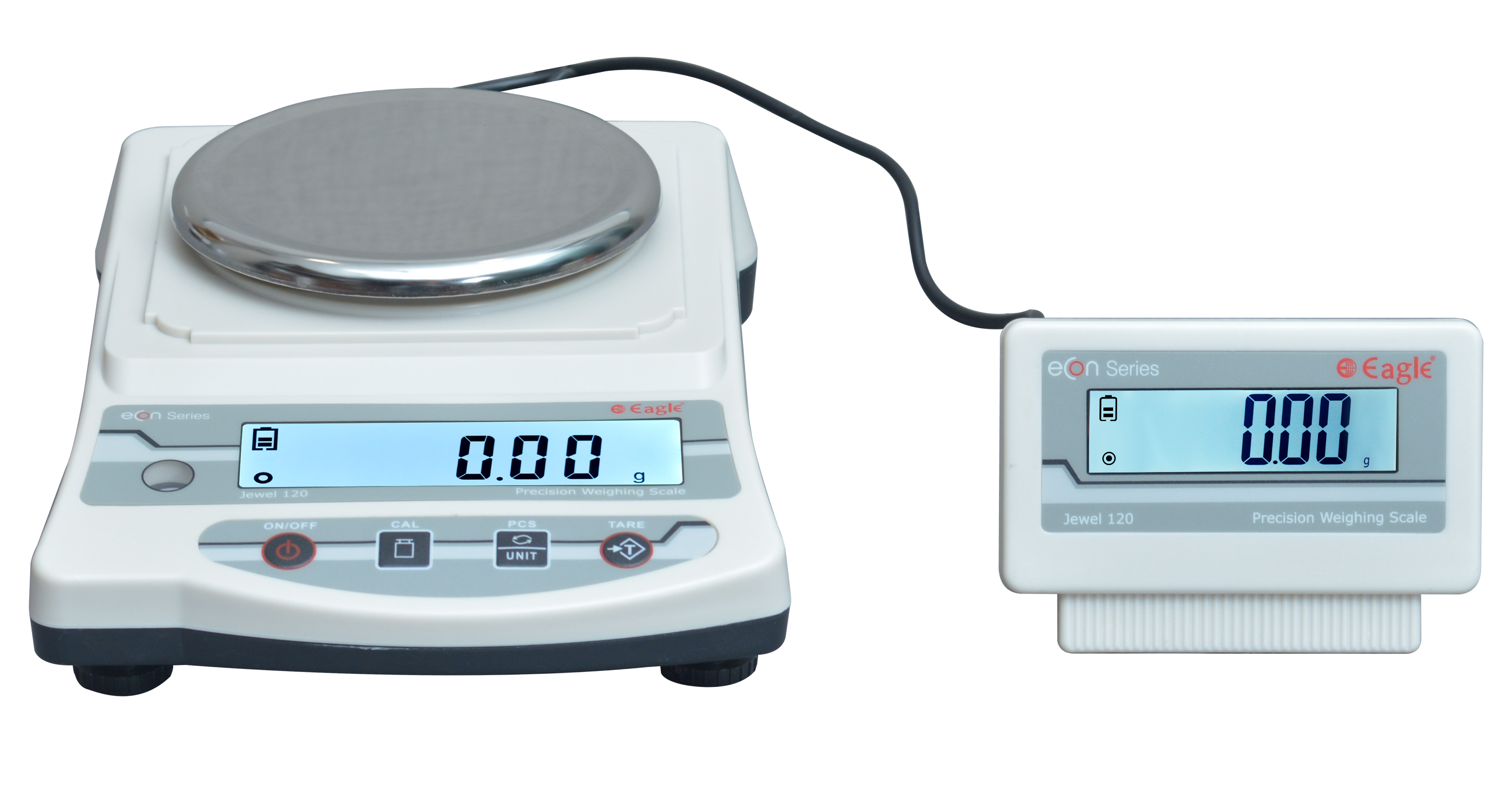

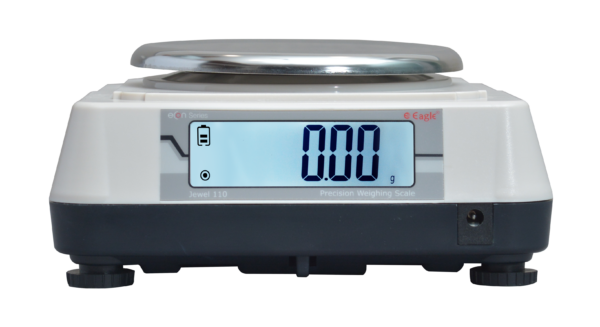

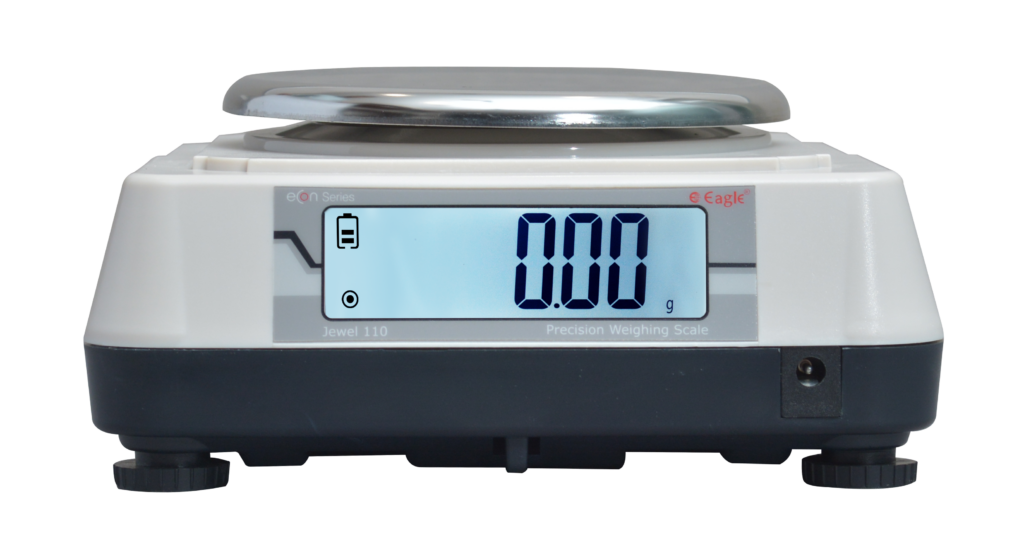

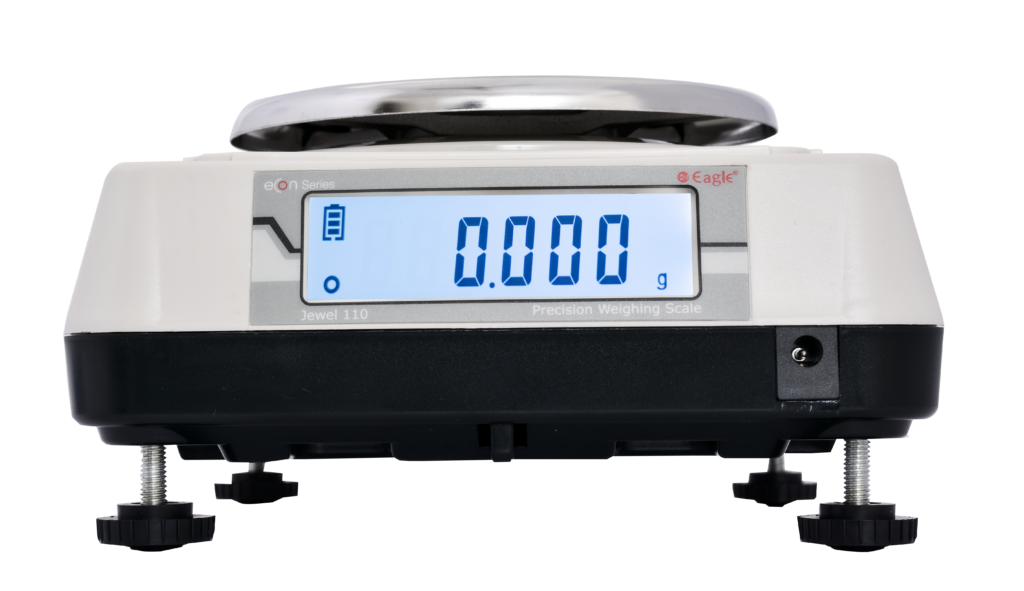

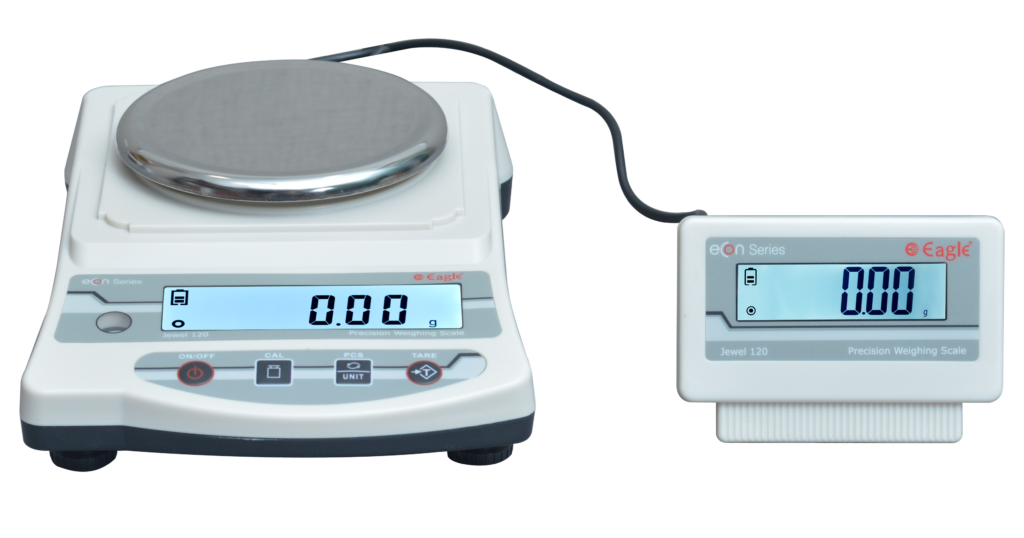

- Jewel 110 model has both front and back display with 18 mm digit height & Jewel 120 model have front display also a remote display (with 1.5 mtr cable & 78 (W) x 22 (H) mm display size) having 18 mm of digit height.

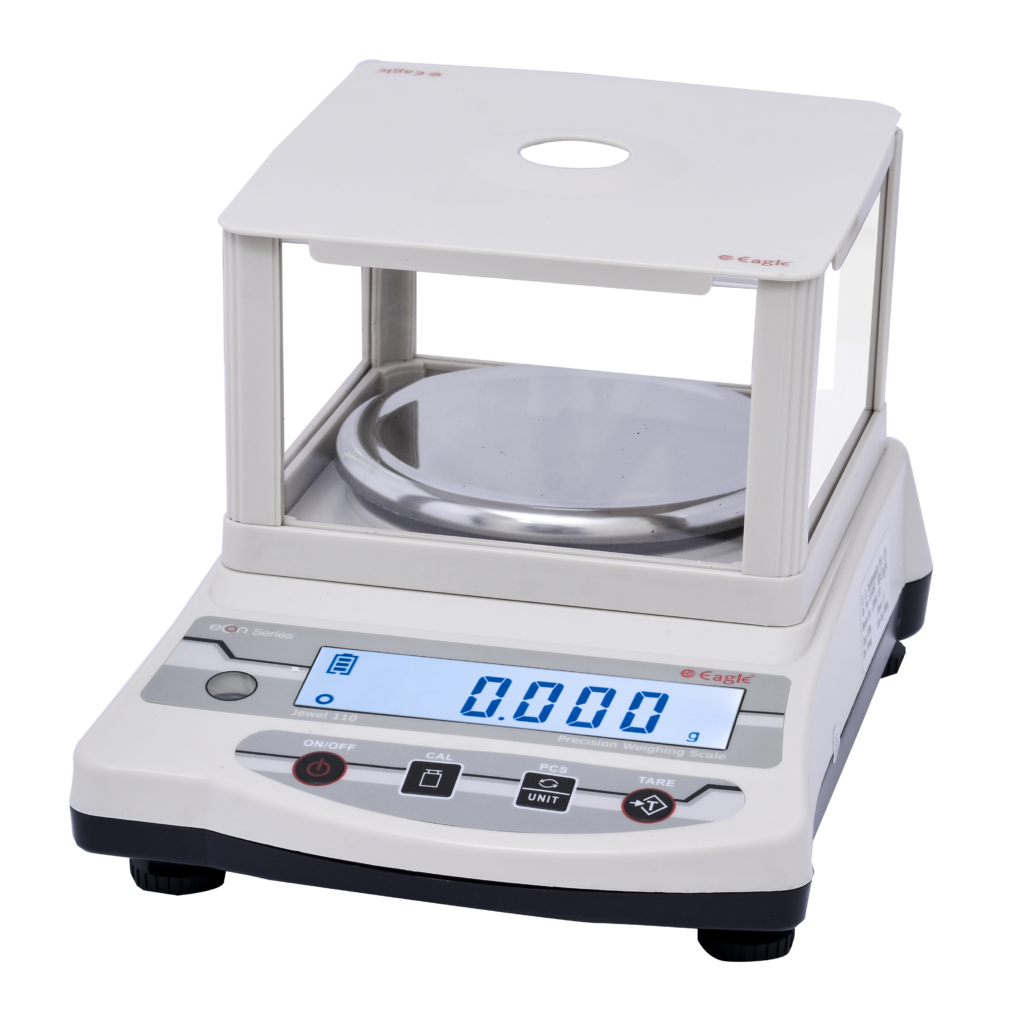

- Foldable Wind Shield : Protects against wind disturbances for stable weighing.
- Primary Functions as Precision Weighing, Piece Counting.
- Tare & Zero Tracking : Ensures accurate weight measurement by eliminating container weight.
- Counting Function : Simplifies piece counting for jewelry, lab, and industrial applications.
- Paper Thickness Measurement (GSM Unit) : Ideal for paper and textile industries.
- Versatility & Multi-Unit Weighing : 14 Weighing Units – Flexibility to measure in various units as per requirements.

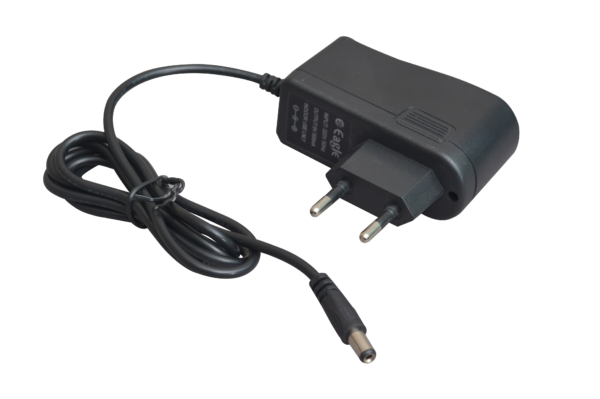

- Dual Power Sources
Operates on rechargeable battery that allow it to be operate anywhere.
* Lead acid Rechargeable Battery (DC 6V, 1.3Ah) for estimated backup for 8 to 10 hours of continuous usage (If battery is fully charged).
* Power saving function is there in the scale, which turns off the LCD backlight when the scale is not used for a certain time. - High Mobility : Thanks to rechargeable battery operation, compact, lightweight construction, it is suitable for the use in several locations (Jewellery industries & shops, School/collage test laboratories, Research and development facilities, Pharmaceutical research centers, Quality control labs, Food processing industries, etc.)
- Spirit Level Indicator : The spirit level indicator in the is placed at the corner of the keyboard and this helps the user to ensure the weighing scale is in perfect level. Maintaining level is important because the accuracy of the scale depends on the object being placed on a level surface.
- Fast Weighing Response : Quick and accurate results to improve efficiency.
- Simple & User-Friendly Operation : Easy-to-use interface for hassle-free weighing.
- External Calibration : Ensures precision with easy one key press.
- Anti-Slip Adjustable Leveling Feet : Provides stability on uneven surfaces.

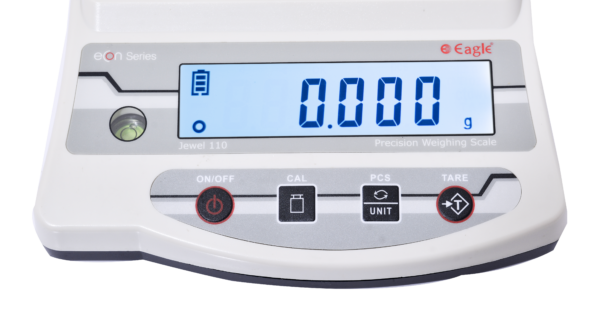

- Color-Coded & Sealed Keypad : Equipped with 4 Tactile keys key pad.
- Precision Load Cell Technology : Ensures high accuracy in every measurement.
- Overload Protection : Prevents damage from excessive weight.
- Low Battery Indication.
