Description

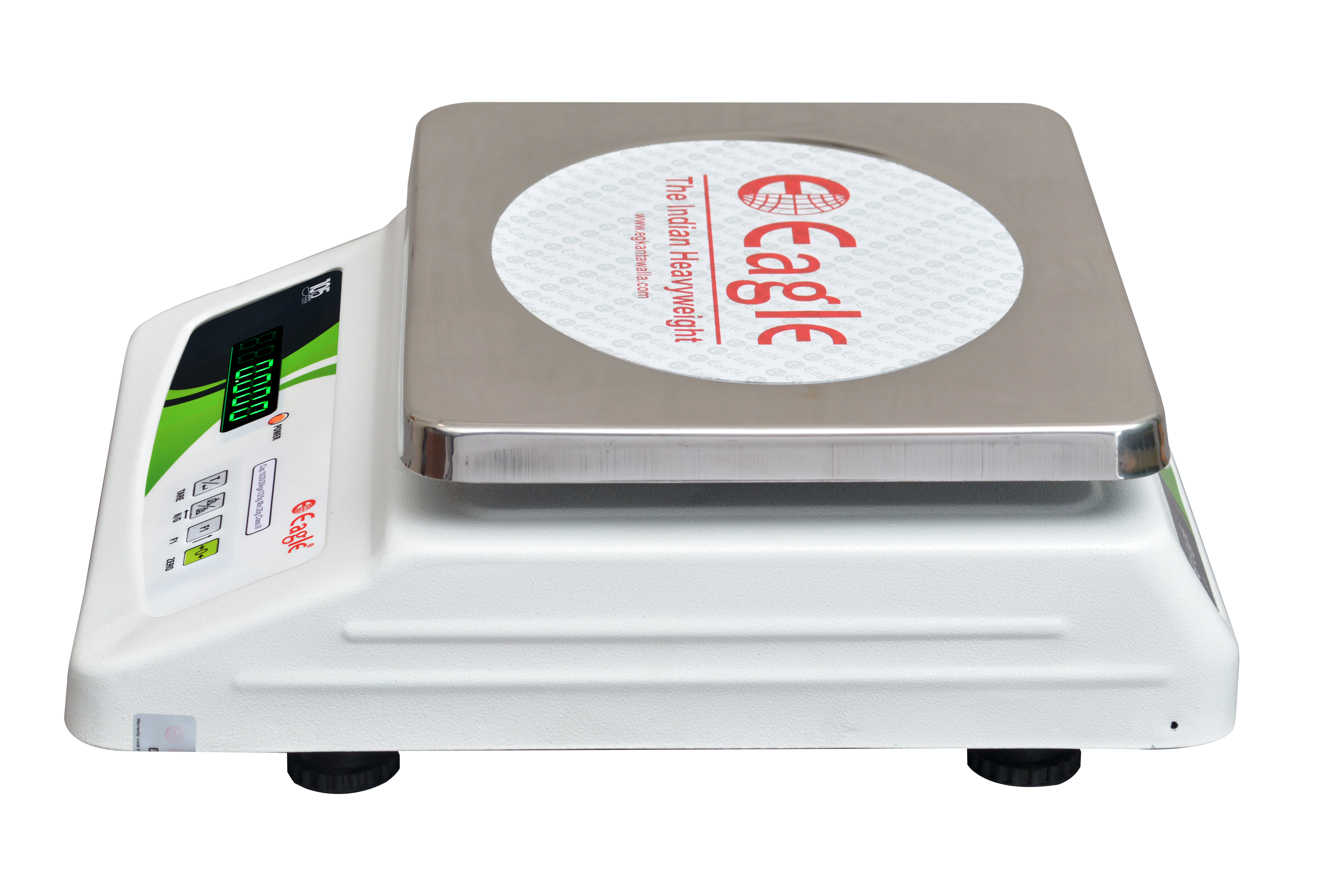

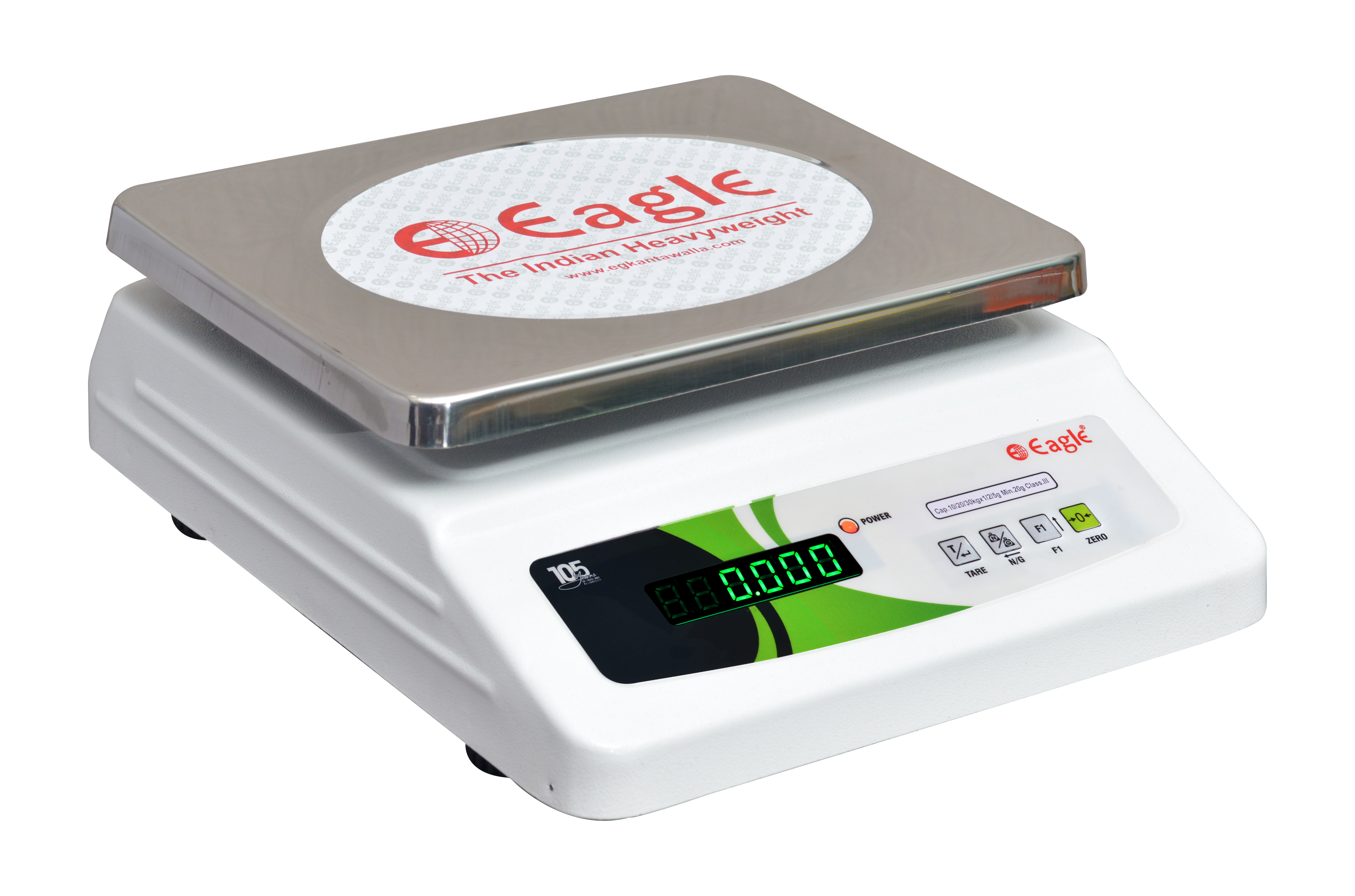

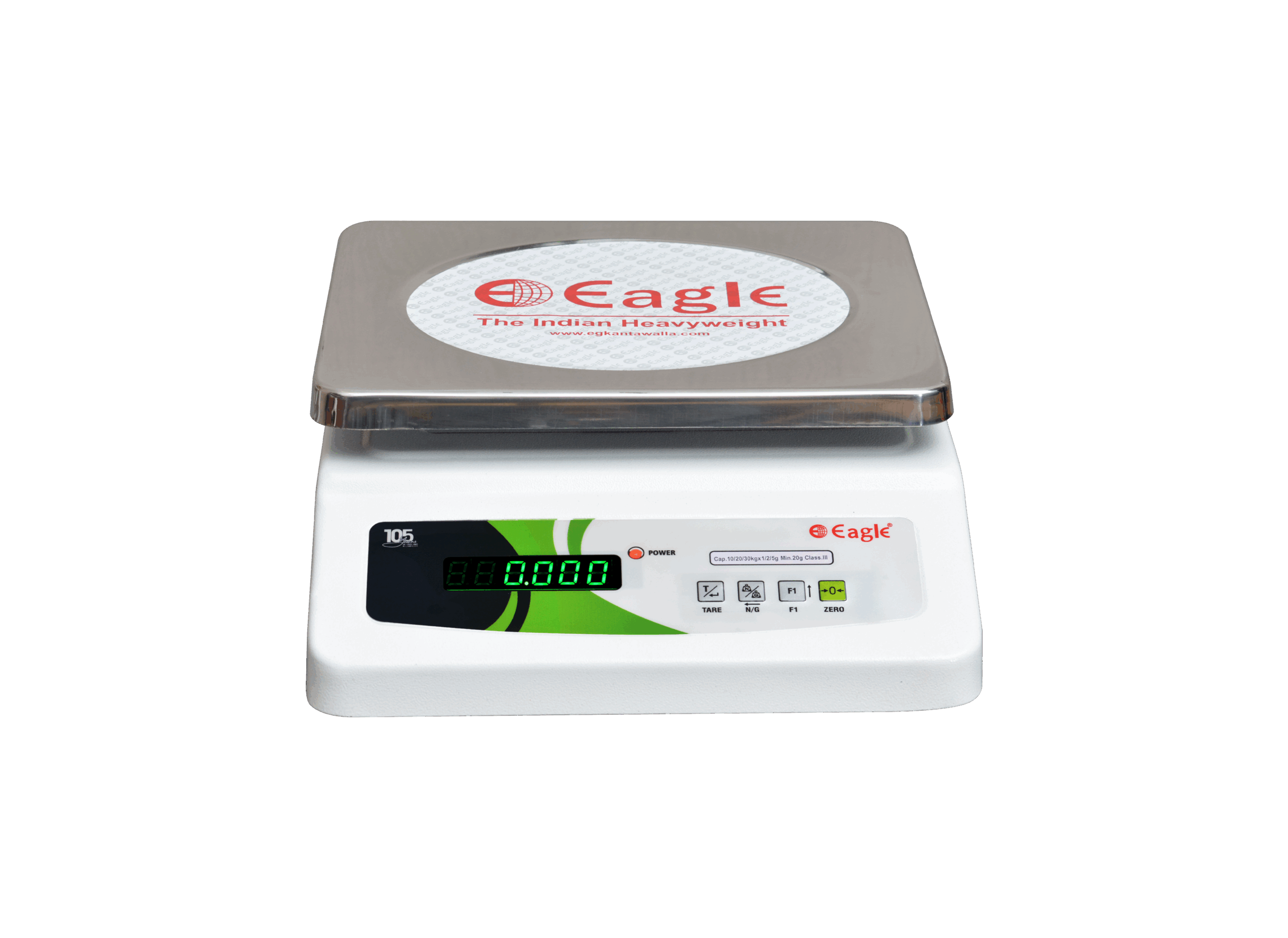

Eagle’s Rugged & Reliable Tabletop Weighing Scale,
Designed with a durable metal housing, our Tabletop Weighing Scale ensures long-lasting performance in any environment. Each scale from E.G. Kantawalla features a built-in battery backup, providing seamless portability and convenience. The dual display system allows both users and customers to view the weight simultaneously, ensuring complete transparency and accuracy. This series delivers hassle-free, precise weighing for all your essential measurement needs.
Range
Model No. |
Capacity |
Division |
Platform Size |
Body Material |
Pan Material |
Load Cell |
TM LFR |
7.5/10 kg |
0.5/1 g |
295 x 235 mm |
Mild Steel |
Stainless Steel 202 |
1 Pc – Aluminium IP 65 |
10/20 kg |
1/2 g |
|||||
20/30 kg |
2/5 g |
|||||
10/20/30 kg |
1/2/5 g |
Technical specification
- Assembly – Mild Steel Assembly
- Weight Sensor – Aluminium Loadcell – IP65
- Resolution – 1/30000
- Minimum input voltage – <1 mV
- Minimum input sensitivity – 0.1 microvolt per interval
- Analog input range – 0 mV to 15 mV

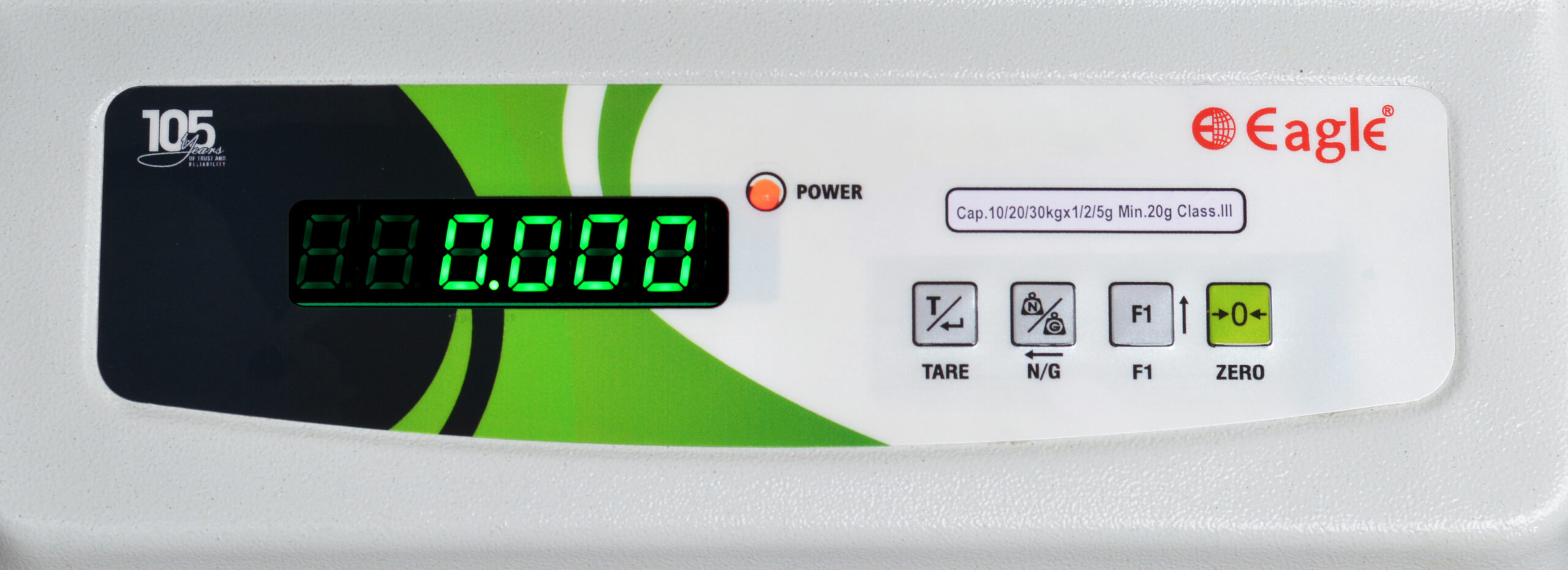

- Keypad – 4 keys
- Display Type – Super Bright Green LED
- No. of Display Windows – Dual Display (Front & Rear)
- Front Display – Green LED – 20 mm digit height
- Rear Display – Green LED – 20 mm digit height
- Calibration Method – External Calibration
- Net Weight – 5.5 kg approx (without battery)
- Stable Time – <3sec
- Power Supply – 110 to 230 V AC 50 Hz
- Operating Temperature – +10 deg to +50 deg
- Battery Capacity – Lead Acid – 6 V, 5 Ah
- Battery Backup – Estimated 8-10 hrs on full charge
- Mounting Type – Table Mount
