Description
Eagle’s this counting model integrated into the ECON Series guarantees increased productivity by streamlining weighing and counting processes across various industries. Whether used in manufacturing, warehousing, retail, or logistics, this indicator ensures fast, reliable, and hassle-free operations.

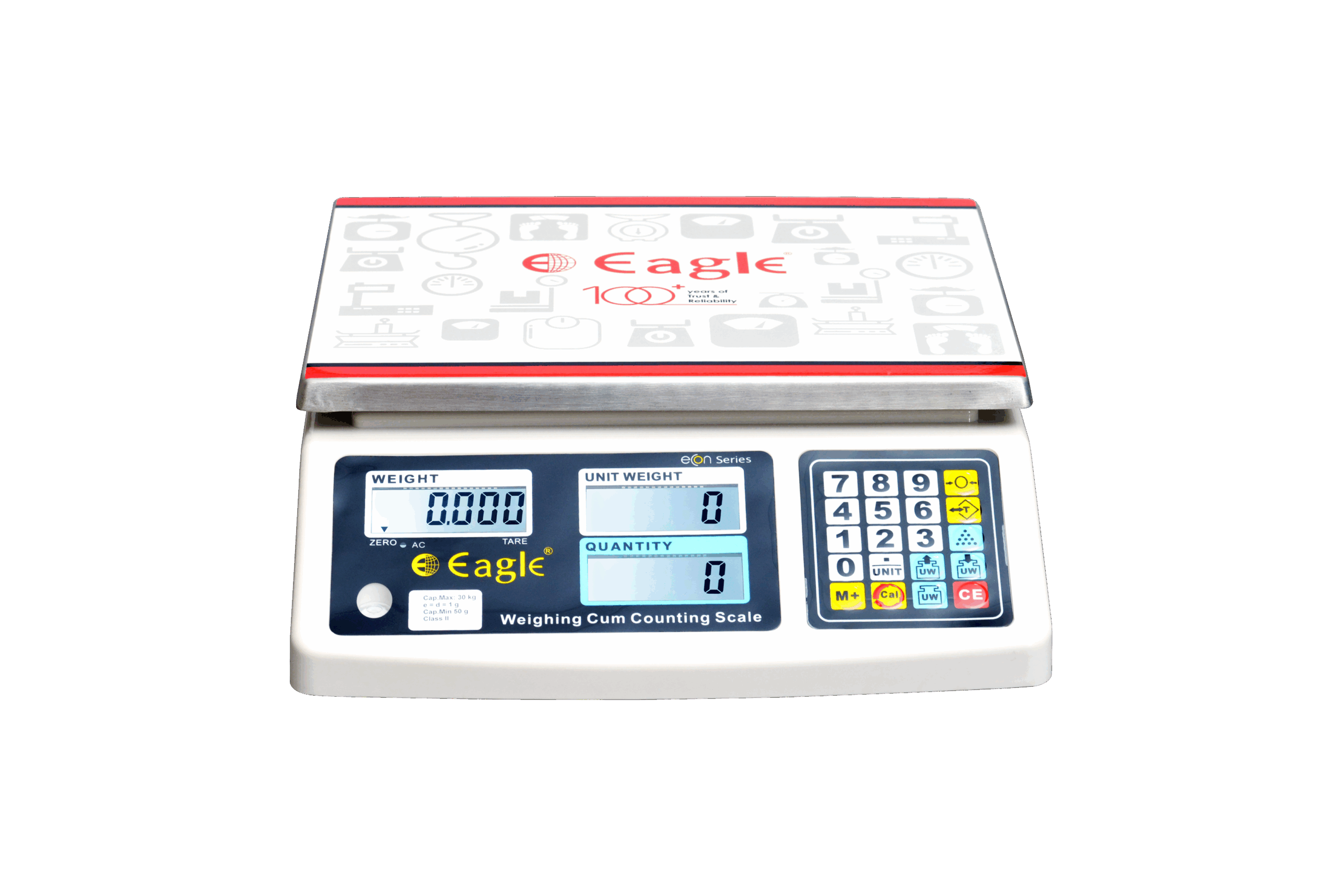

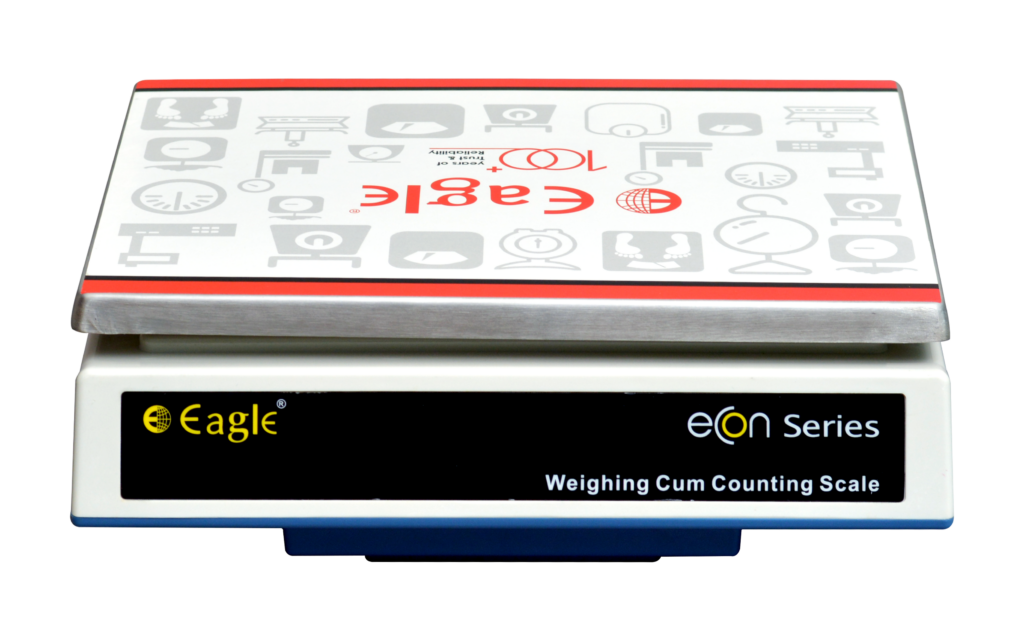

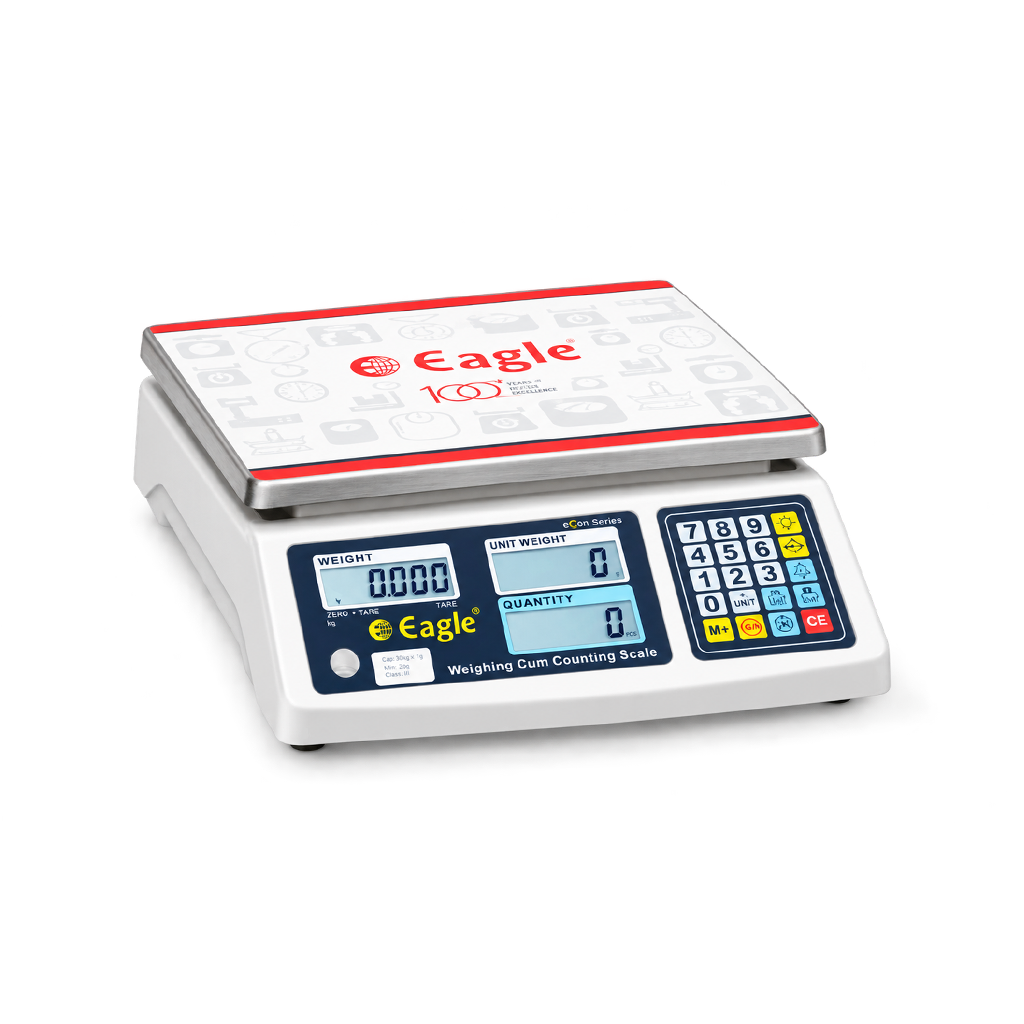

This introduces a high-performance table top Weighing Cum Counting Scale, specially designed for heavy-duty usage in both indoor and outdoor environments. Built for durability and precision, this scale ensures accurate weight measurement and efficient counting, making it an essential tool for various industries.
Range
Model No. |
Capacity |
Division |
Platform Size |
Body Material |
Pan Material |
Load Cell |
Display |
CT 410 |
3 kg |
100 mg |
310 × 225 mm |
ABS Plastic |
Stainless Steel 304 |
1 Pc – Aluminum IP 65 |
Front 3 window – LCD + Backlight |
6 kg |
200 mg |
||||||
15 kg |
500 mg |
||||||
30 kg |
1 g |
Technical specification
- Assembly – Industrial grade ABS Material Assembly
- Weight Sensor – Aluminium Loadcell – IP65
- Keypad – 20 keys

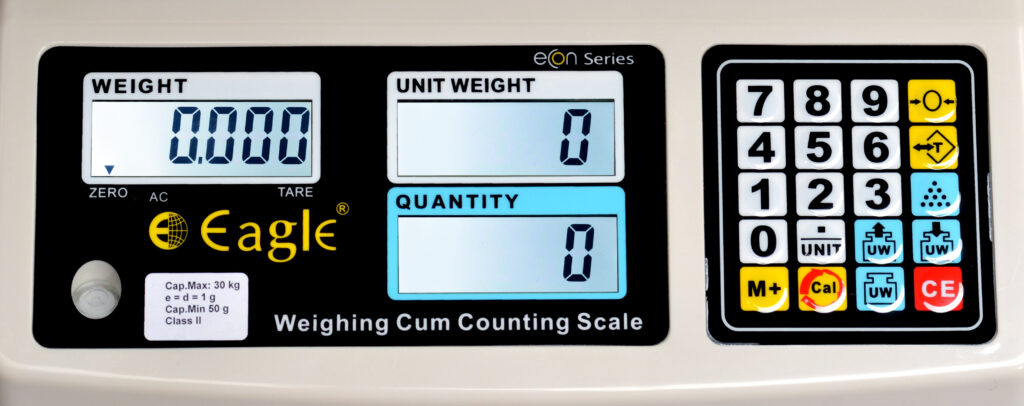

- No. of Display – 3 window display
Window 1 : Total Weight, Window 2 : Unit weight, Window 3 : Total Price - Display Type – LCD display
- Digit Height – 15 mm digit height in each display
- Calibration Method – External Calibration
- Net Weight – 3.2 kg approx (without battery)
- Operating Humidity – 95% RH Max (Non – Condensing)
- Over-load – 100 % Of Scale Capacity +9e
- Safe-load – 150 % Of Scale Capacity
- Stabalisation Time – < 4s
- Internal Resolution – 20 Bit ADC (10,48,756 Counts)
- Power Supply – 110 to 230 V, AC 50 Hz
- Operating Temperature – +10 deg to +50 deg
- Battery Capacity – Lead Acid – 6 V, 5 Ah
- Battery Backup – Estimated 8-10 hrs on full charge
- Mounting Type – Table Mount
